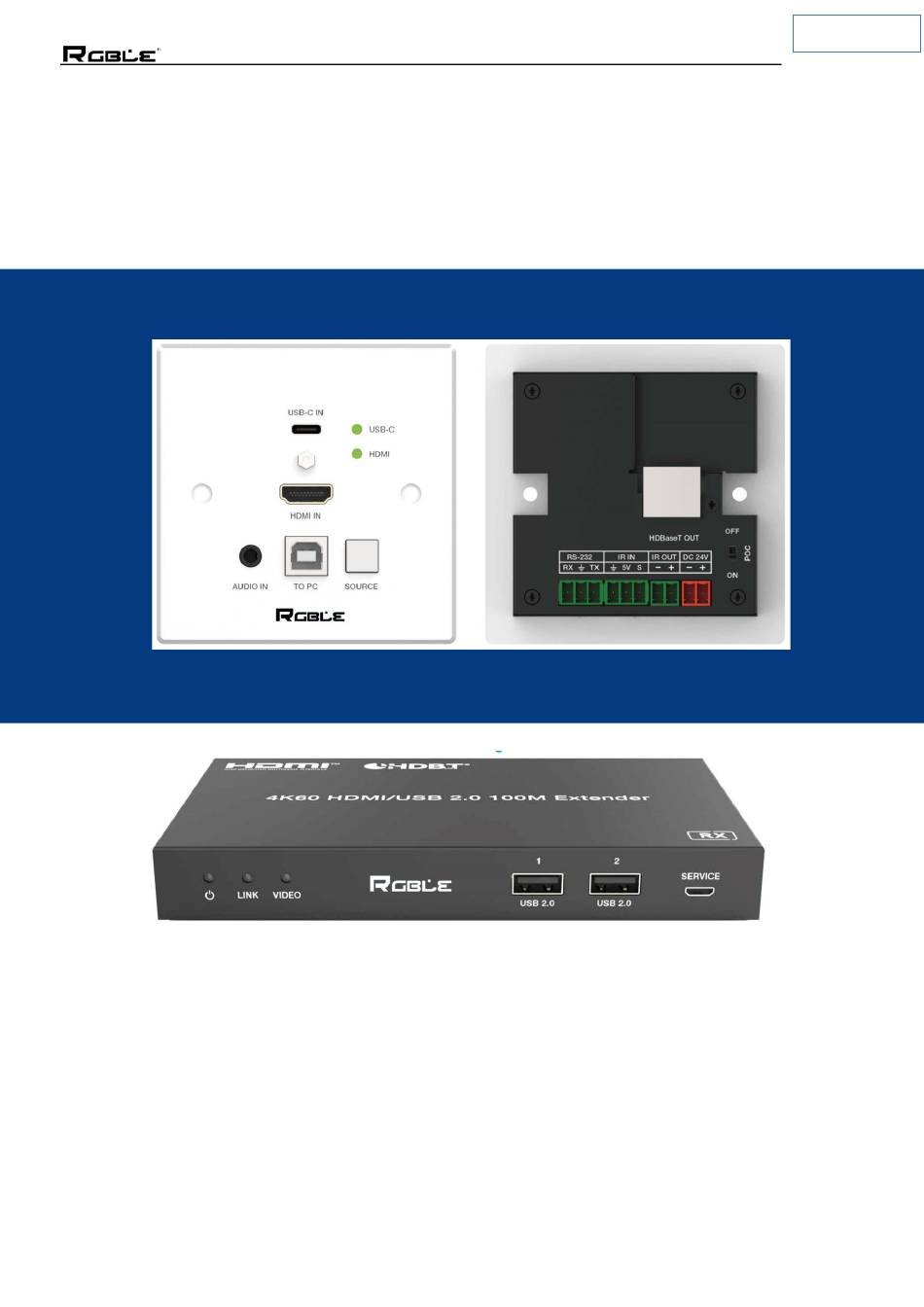

- Page 1 P/N: U00604 4K60 -HDMI-/USB-C 2x1 HDBT Wall-plate Extender (Standard European size: 86x86) Wall-plate Transmitter HDBT Receiver MHD-WA-HUT-100 User Manual VER 1.0 Stock Code 873117 en.rgble.com 400-1661-021...
-
Page 2: Table Of Contents
P/N: U00604 Thank you for purchasing RGBLE product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shook, lighting strikes, etc. -
Page 3: Introduction
⑤ 1 x Wideband IR Receiver cable (1.5 meters) ⑥ 1 x IR Blaster cable (1.5 meters) ⑦ 2 x Mounting Ears ⑧ 4 x Machine Screws-M3*4 ⑨ 1 x 24V/1A Locking Power Supply ⑩ 1 x User Manual Stock Code 873117 en.rgble.com 400-1661-021... -
Page 4: Features
Description 2), IR IN is a 5V power supply level ◼ Transmit bidirectional RS-232 control signal together with the -HDMI- signal. (See the Description 3) ◼ The Receiver supports USB 2.0 signal transmission ◼ Standard 86mm×86mm wall box Stock Code 873117 en.rgble.com 400-1661-021... -
Page 5: Specifications
24V/1A (supporting bidirectional POC power supply) Power Consumption 12.48W (Max) Operation Temperature 32 - 104° F / 0 - 40° C Storage temperature -4 - 140° F / -20 - 60° C Relative Humidity 20 - 90% RH (no condensation) Stock Code 873117 en.rgble.com 400-1661-021... -
Page 6: Operation Controls And Functions
Connected to PC or control system through 3-pin Phoenix connector ⑧ RS-232 port for RS-232 serial command pass-through. Connected to IR wideband receiver cable, receiving the remote control ⑨ IR IN port signal and then send it to the receiving end. Stock Code 873117 en.rgble.com 400-1661-021... -
Page 7: Receiver Panel
Transmitter. L/R: Output the analog audio embedded from the AUDIO IN port of Transmitter. Used to set the EDID information: 00- Copy RX display’s EDID (as EDID switch factory default) 01- 4K30 4:4:4 10- 1080p60 4:4:4 11- 1200p60 4:4:4 5.2 Receiver panel Stock Code 873117 en.rgble.com 400-1661-021... -
Page 8: Video Led
Connected to IR wideband receiver cable, receiving the remote control IR IN port signal and then send it to the transmitting end. Connected to IR blaster cable, sending the remote control signal from IR OUT port the transmitting end. Stock Code 873117 en.rgble.com 400-1661-021... -
Page 9: Dimensions Of Wall Box
P/N: U00604 5.3 Dimensions of Wall Box Front panel Side panel Rear Panel ☆ Description 1 POC (Power over Cable) Application Example Connection Diagram Stock Code 873117 en.rgble.com 400-1661-021... - Page 10 P/N: U00604 ☆ Description 2 Bidirectional Infrared control Application Example ☆ Description 3 Bidirectional RS-232 control Application Example Stock Code 873117 en.rgble.com 400-1661-021...
-
Page 11: Application Example
P/N: U00604 6. Application Example Stock Code 873117 en.rgble.com 400-1661-021...
