Conlog DCU Series Installation Manual

LED Identification and behavior
The behaviour of the LED's is dependent on
the operating mode of the DCU(X):
Table 1, LED colours
LED Color
Status Green
WAN Communications Orange
PLC Communications Orange
RS485 Communications Orange
WAN Communications LED
During normal operation the WAN
Communications LED is used to indicate
server connection status
Table 3, WAN Communication LED behavior
Condition LED Behaviour
No Error Solid
Error Off
Communications Flashing
Busy
RS485 Communications LED
During normal operation, the RS485
Communications LED is used to indicate
RS485 traffic.
Table 5, RS485 Communications LED
behaviour
Condition LED Behaviour
No Error Solid
Error Off
Communications Flashing
Busy
Tel: +27 (31) 268-1111 Email: info@conlog.com
Conlog shall not be liable for any consequential loss of whatever nature and howsoever arising including, but not limited to, loss arising
from any defect in the product sold which is covered by Conlog's warranty, or from negligence on the part of Conlog, its directors,
employees or agents.
Conlog (Pty) Ltd Reg.No. 1982/011895/07
c
Status LED
Table 2, Status LED behavior
Condition LED Flashes
Exception Solid
No alerts 0
Hardware Error 1
Reserved 2
3
Ethernet cable unplugged
Reserved 4
Configuration error 5
Decommissioned 6
Ext Tamper / Lid open 7
Clock invalid 8
GPS fix not acquired 9
PLC Communications LED
During normal operation, the PLC
Communications LED is used to indicate
PLC traffic.
Table 4, PLC Communication LED behavior
Condition LED Behaviour
No Error Solid
Error Off
Communications Flashing
Busy
Web: www.conlog.com
Part Number: 700077705000

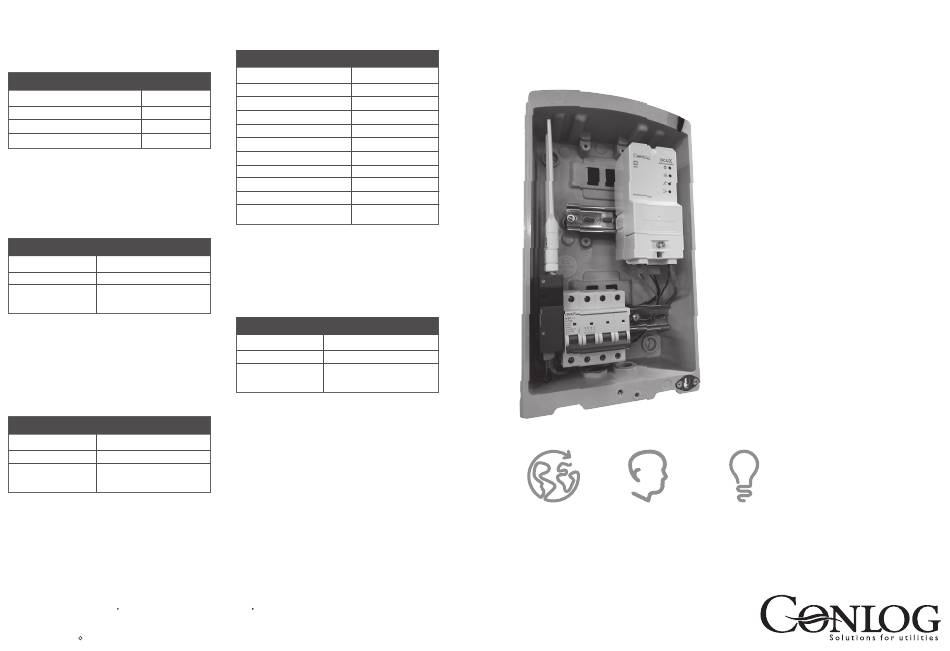

DCU(X) Box Solution
Installation guide
