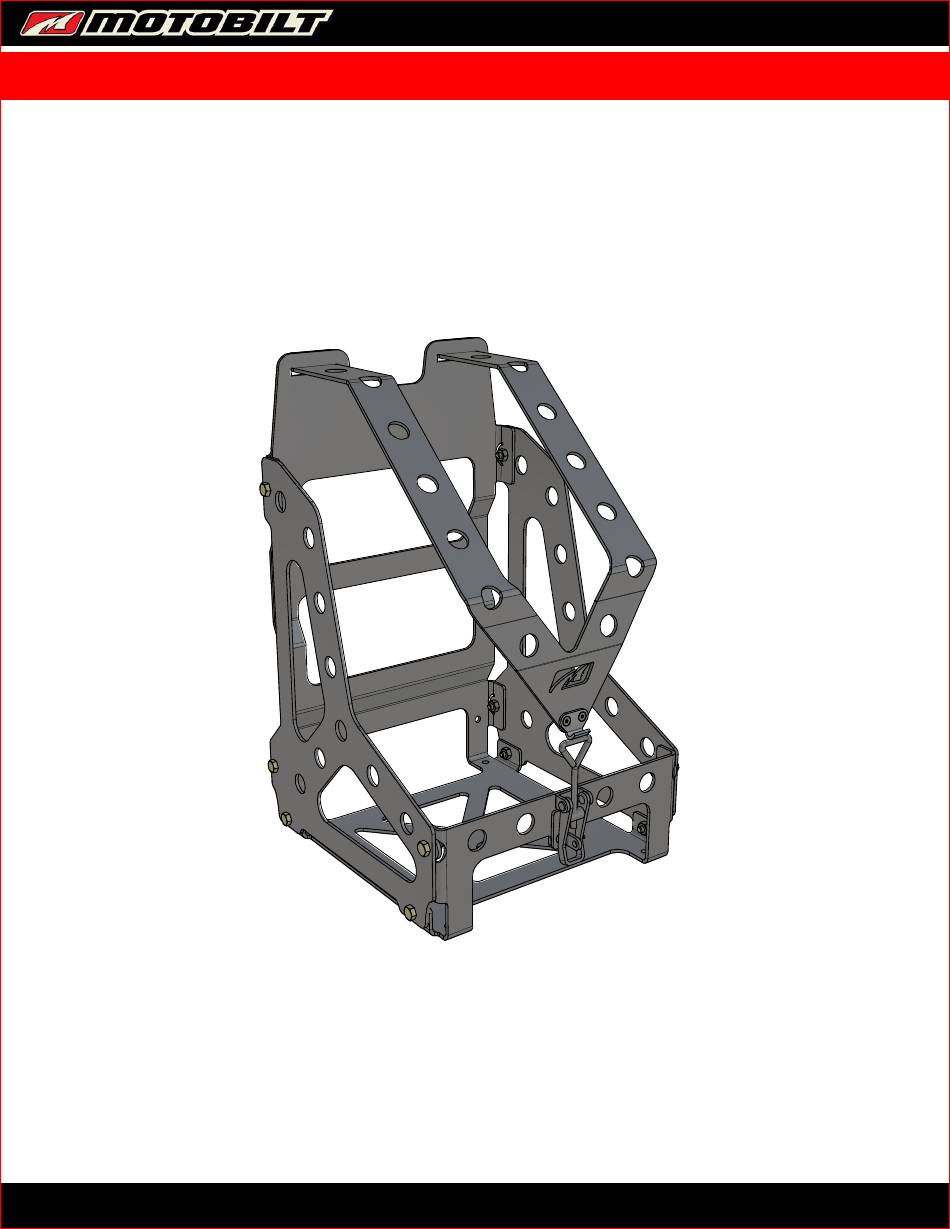

- Page 1 REV: 0 MB5526 - Assembly Instructions VP Gas Can Mount JERRY CAN 5 GALLON MOUNT ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 REV: 0 MB5526 - Assembly Instructions VP Gas Can Mount KIT COMPONENTS MB5526-03 Qty: 1 MB5526-02 Qty: 1 TOGGLE CLAMP Qty: 1 TOGGLE CLAMP MB5526-01 KEEPER Qty: 1 Qty: 1 MB5526-02_MIR Qty: 1 MACHINE NUT COUNTER SUNK NYLOCK THIN NUT...
-
Page 3: Assembly - Base
REV: 0 MB5526 - Assembly Instructions VP Gas Can Mount ASSEMBLY - BASE MB5526-02 NYLOCK THIN NUT HEX BOLT 1/4"-20 1/4"-20 x 5/8" MB5526-01 HEX BOLT 1/4"-20 x 5/8" MB5526-02_MIR HEX BOLT 1/4"-20 x 5/8" HEX BOLT 1/4"-20 x 5/8"... - Page 4 REV: 0 MB5526 - Assembly Instructions VP Gas Can Mount ASSEMBLY - CLAMP MACHINE NUT #8-32 MB5526-01 TOGGLE CLAMP COUNTER SUNK MACHINE SCREW #8-32 x 3/8" DETAIL A MB5526-03 TOGGLE CLAMP KEEPER COUNTER SUNK MACHINE SCREW MACHINE NUT #8-32 x 3/8"...
- Page 5 REV: 0 MB5526 - Assembly Instructions VP Gas Can Mount ASSEMBLY - MOUNT MB5526-01 MB5526-03 motobilt.com | 334-219-2333...
- Page 6 REV: 0 MB5526 - Assembly Instructions VP Gas Can Mount LINKING USE THE SIDE PLATE (MB5526-02 OR MB5526-02_MIR) AND 1/4" HARDWARE FROM MB5526-01 ONE KIT TO LINK TO MOUNTS TOGETHER. MB5526-02 MB5526-02_MIR MB5526-01 HEX BOLT 1/4"-20 x 5/8" NYLOCK THIN NUT 1/4"-20...
- Page 7 REV: 0 MB5526 - Assembly Instructions VP Gas Can Mount MOUNTING 8 7/8 BACK 8 7/8 motobilt.com | 334-219-2333...
-
Page 8: Internal Dimensions
REV: 0 MB5526 - Assembly Instructions VP Gas Can Mount INTERNAL DIMENSIONS 10 1/4 10 9/16 motobilt.com | 334-219-2333...
