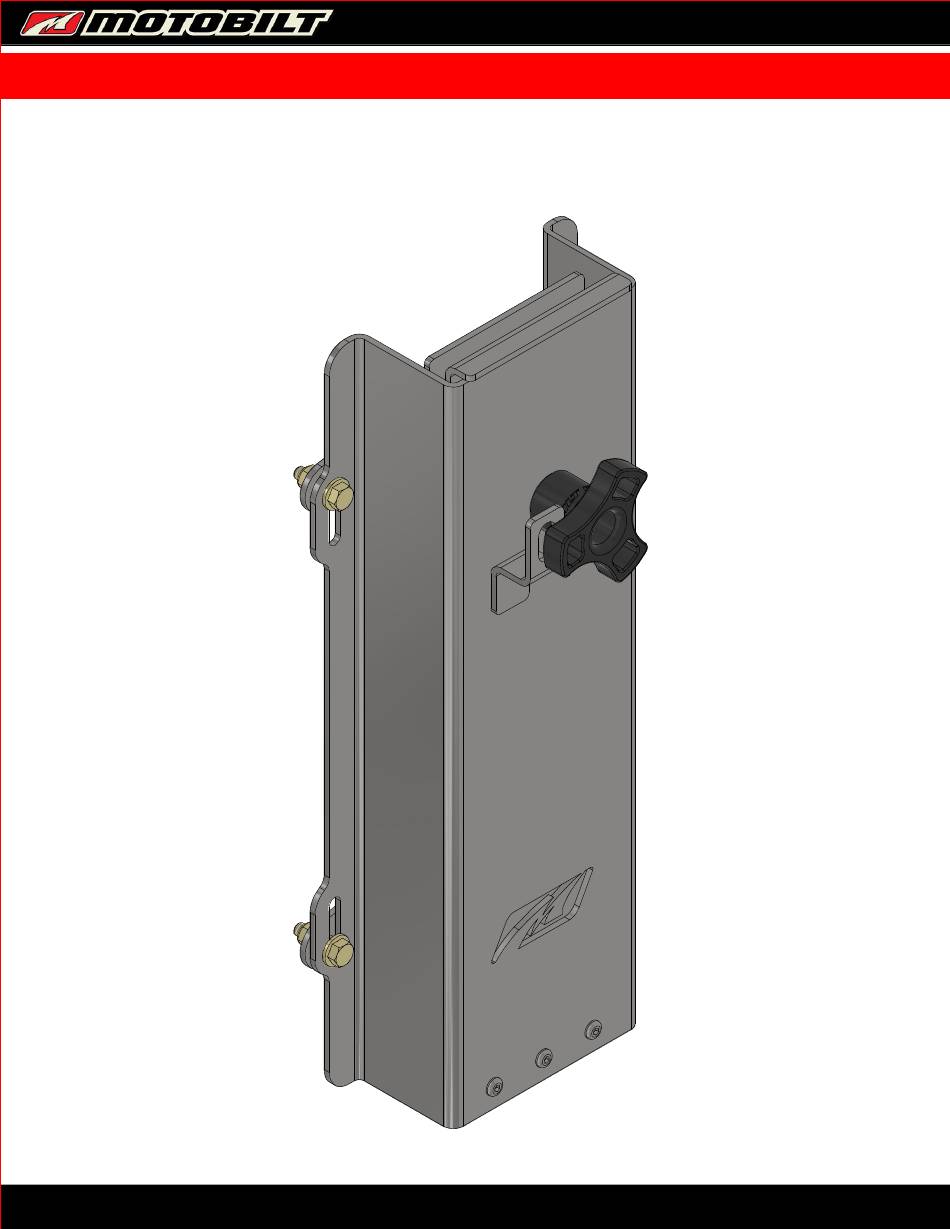

- Page 1 REV: MB5081 - Assembly Instructions Chainsaw Mount MB5081 CHAINSAW MOUNT motobilt.com | 334-219-2333...
- Page 2 REV: MB5081 - Shipping Chainsaw Mount CONTENTS MB5081-05 Qty 2 MB5081-04 MB5081-01 10-24 x 1/2" Button Head Cap Screw MB8004_5081 Qty 3 Qty 1 1/4 Flat Washer 1/4-20 x 1" Hex Bolt 1/4"-20 - Nylon Insert Locknut Qty 8 Qty 4 Qty 4 motobilt.com | 334-219-2333...
- Page 3 REV: MB5081 - Assembly Instructions Chainsaw Mount INSERT MB5081-04 IN TO SLOT AND SECURE WITH PROVIDED FASTENERS 10-25 x 1/2" Button Head Cap Screw MB5081-04 motobilt.com | 334-219-2333...
- Page 4 REV: MB5081 - Assembly Instructions Chainsaw Mount SECURE MOUNT WITH PROVIDED FASTENERS. 1/4-20 x 1" Hex Bolt 1/4 Flat Washer 1/4"-20 - Nylon Insert Locknut MB5081-05 motobilt.com | 334-219-2333...
- Page 5 REV: MB5081 - Assembly Instructions Chainsaw Mount MB8004_5081 INSERT CHAINSAW IN TO MOUNT AND USE PROVIDED KNOB TO TIGHTLY SECURE IN MOUNT. motobilt.com | 334-219-2333...
- Page 6 REV: MB5081 - Assembly Instructions Chainsaw Mount motobilt.com | 334-219-2333...
