ASTRO ONYX 1894 Manual

INTENDED USE OF THE TOOL

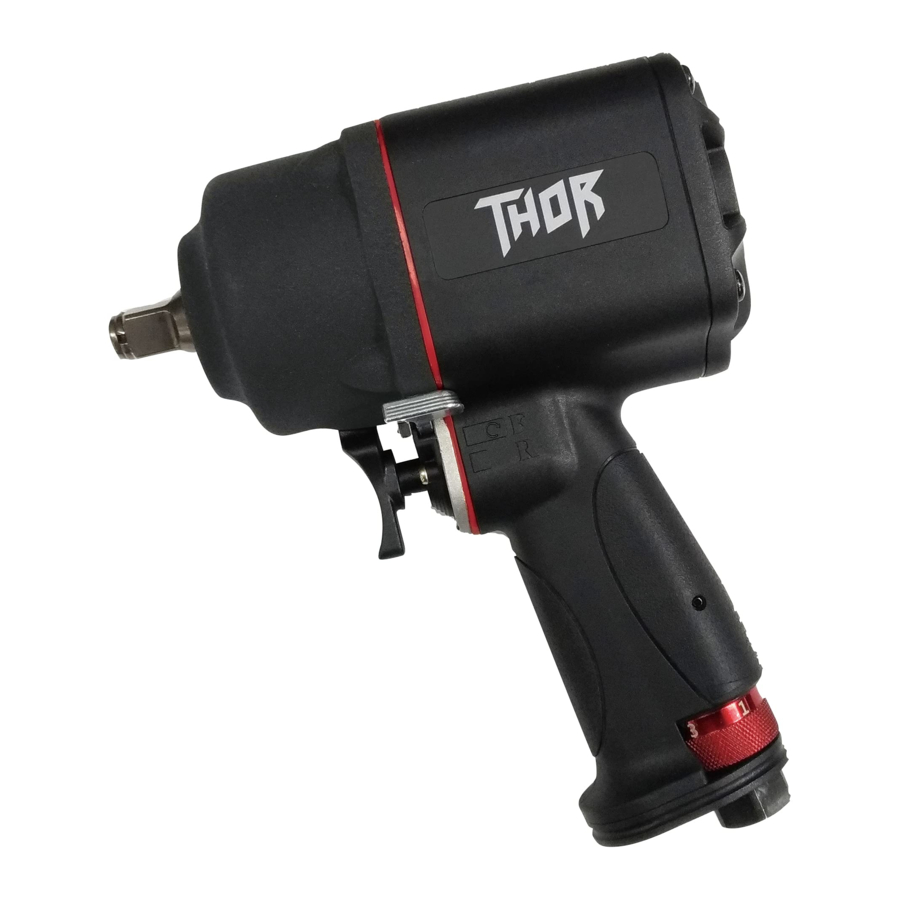

The 1/2" THOR Impact wrench was designed as a maximum duty air impact wrench for use with high quality impact rated sockets on large bolts and fasteners. Do not use this tool outside of the designed intent. Never modify the tool for any other purpose or use.

BEFORE USE

Before use, check the parts diagram and part number listing to make sure all parts are included. If any parts are missing or damaged, please call your distributor.

PRODUCT INFORMATION

  • Patented oversized floating air motor and twin-hammer assembly put the weight over the user's hand for balance, and allow for industry leading power at only 6.7" in length
  • Rated 940 ft-lbs traditional Max Torque (compare to 1,600 ft-lbs nut-busting or bolt-breakaway)

SPECIFICATIONS:
Max Torque: 940 ft-lbs (1,274 N-m)
Free Speed: 7000 rpm
Weight: 4.94 lb ( 2.24 Kg )
Length: 6.7"/168 mm
Vibration (m/s ): 5.12 2
Air Consumption @ 90psi: 6.5 cfm
Sound Pressure/Power: 86/97 dBA
Air Inlet In.: 3/8" NPT (1/4" NPT adapter included)
Minimum Hose Size: 3/8" w/ HI-FLOW fittings



TO HELP PREVENT PERSONAL INJURY.

  • Use of this product can expose you to chemicals including ethylene glycol, gasoline vapors and engine exhaust, which are known to the State of California to cause cancer, birth defects, or reproductive harm. For more information, visitwww.P65Warnings.ca.gov. Always wear ANSI approved safety equipment, safety glasses and clothing when using this product.
    Study, understand, and follow all instructions provided with this product. Failure to read and follow all warnings and operating instructions may result in damages and serious injury or death.
  • Always wear ANSI approved goggles when using this product. (Users and Bystanders).
  • Never use this tool for any application other than for which it was designed.
  • Only use accessories designed for this tool.
  • Never alter or modify this tool in any way.
  • Improper operation and/or maintenance of the tool, modification of the tool, or use of the tool with accessories not designed for it could result in serious injury or death.
  • Always select the correct accessories of the correct size and design for the job that you are attempting to perform.
  • Always work in a clean, safe, well-lit, organized and adequately equipped area.
  • Do not begin repairs without assurance that vehicle is in secure position, and will not move during repair.
  • In order to reduce their exposure to such chemicals, users should always:
    • work in well-ventilated areas.
    • wear appropriate safety equipment and clothes that are specifically designed to filter out microscopic particles.
  • The tool shall not be used in potentially explosive atmospheres.
  • Disconnect the air hose before changing or adjusting any inserted tools.
  • Before using tool, please confirm all couplings and plugs are fixed securely. An air hose that is under pressure may lash out when disconnected and could lead to serious injuries.
  • Prevent loose clothes, long hair or any other personal accessories from coming close to moving parts to reduce the risk of being caught, trapped or drawn into the rotating spindle.
  • Excessive high air pressure that exceeds the maximum pressure may cause injuries to user.
  • Exposure to strong vibration for extended time may cause harm to operator.
  • Be aware of the rotation direction before starting the tool to reduce hazardous situations due to unexpected rotation direction.
  • WATCH YOUR STEP! Leaving excess hose unattended near working area or walk path could result in injury or death.
  • Wearing eye/face protection could reduce the danger to person from high speed splinters being emitted from the tool or work surface.
  • Wearing correct breathing protection will help avoid inhaling dust or debris from work process that can be harmful to your health.
  • High sound levels can cause permanent hearing loss. Use hearing protection while operating tool.
  • Due to the material being processed, there may be a risk of explosion or fire. Be aware of work surface dangers prior to beginning work.
  • There is a risk of being cut due to high speed rotation. Do not touch high speed rotating disc.
  • This power tool is not insulated. If contact is made with an electric current, injury may occur.
  • Dust created by sanding, sawing, grinding, drilling and other related activities may expose the user to dust and/or microscopic particles that may contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

MAINTENANCE INSTRUCTION

LUBRICATION:
Before connection of the hose, apply 4 to 5 drops of a good quality air tool oil at the air inlet. After 3 to 4 hours of operation, oiling may be necessary again.

TIGHTNESS OF PARTS:
Regularly check whether all connection parts are fastened securely. Follow this procedure daily before beginning work.

STORAGE:
Avoid storing the tool in a location subject to high humidity. If the tool is left unused, the residual moisture inside the tool can cause rust. Before storing and after operation, oil the tool at the air inlet with a good quality air tool oil and run it for a short period.

ORDERING SERVICE PART:
For further operational and handling information or for replacement of parts and components, contact the sales agent from where you purchased the tool, or the service division of our company, phone number 800-221-9705. * When ordering parts and components, give each part number, name, and quantities.

SUGGESTED AIR LINE CONNECTION

The oil and water extractor should not be mounted on or near the air compressor.
The temperature of air is greatly increased during compression. As the air cools down to room temperature, in the air line, on its way to the Air Power Tool, the moisture contained in it condenses. Thus, for maximum effectiveness, the oil and water extractor should be mounted at some point in the air supply system where the temperature of the compressed air in the line is likely to be lowest. Air lines must be properly drained daily. Each low point in an air line acts as a water trap. Such points should be fitted with an easily accessible drain. See diagram below. Pitch all air lines back towards the compressor so that condensed moisture will flow back into the air receiver where it can be drained off. Drain daily.
SUGGESTED AIR LINE CONNECTION
Oil and Water Extractor should be at least 25 ft. from the compressor.
Further if possible.

PARTS BREAKDOWN

PARTS BREAKDOWN

Part No. Description Index
1894-54 Anvil Kit (1/2") 39, 40, 41
1894-55 Socket Retainer Kit (1/2") 1 US 40, 41
1894-56 Air Inlet Bushing Kit 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
1894-57 Exhaust Deflector Kit 15, 16, 17
1894-58 Cylinder Kit 28, 29, 30
1894-59 Trigger Kit 32, 33, 34, 50, 51, 52
1894-60 Front Cover Kit 43, 44
1894-61 Air Regulator Kit 4, 17, 45, 46, 47, 48, 49
1894-62 Repair kit 1, 5, 7, 22, 23, 27, 31, 32, 33

Call 1.800.221.9705 for questions concerning performance of the product or other inquiries.
