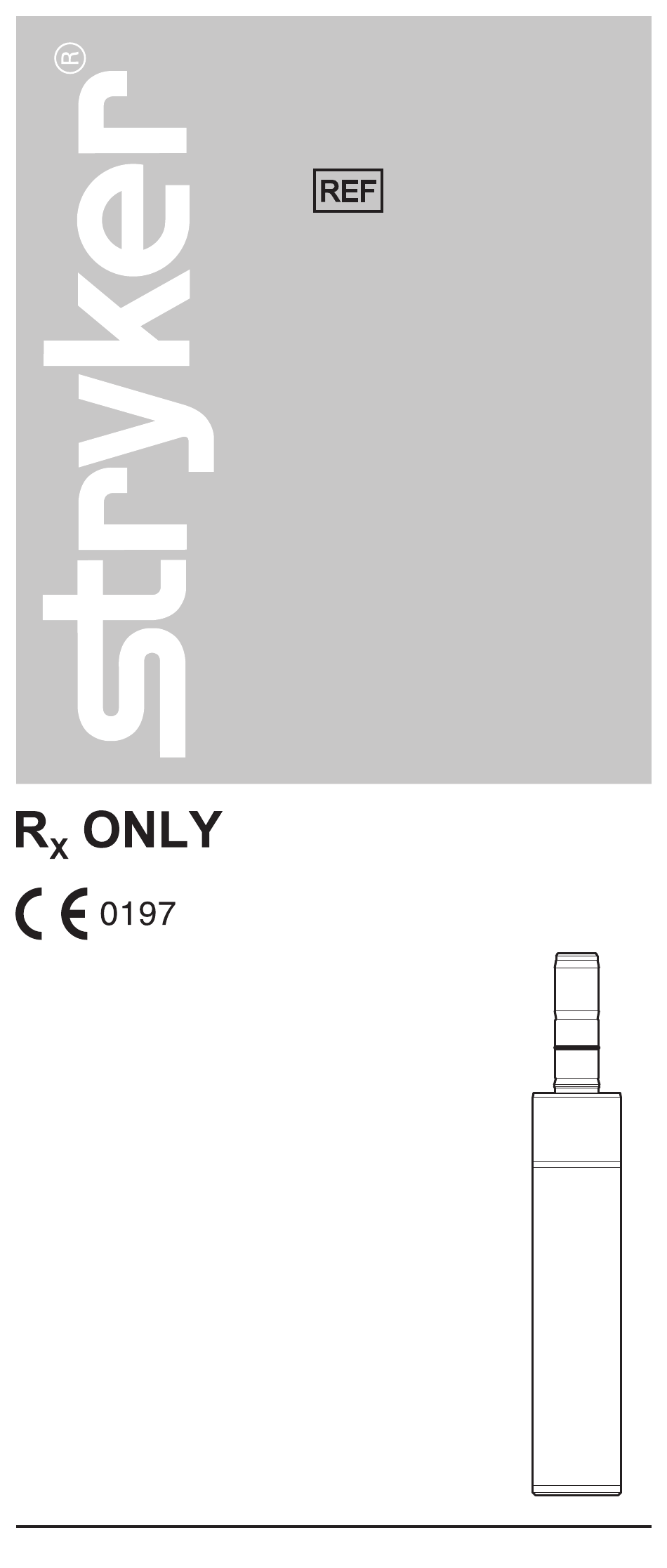

RemB
Electric
®
Micro Drill
6400-015-000
Instructions For Use
ENGLISH (EN)
2018-10
6400-015-700 Rev-AA
www.stryker.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RemB 6400-015-000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stryker RemB 6400-015-000

  • Page 1 RemB Electric ® Micro Drill 6400-015-000 Instructions For Use ENGLISH (EN) 2018-10 6400-015-700 Rev-AA www.stryker.com...
  • Page 2: Indications For Use

    • A NOTE supplements and/or clarifies procedural information. For additional information, including safety information, in- service training, or current literature, contact your Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest Stryker subsidiary.
  • Page 3 • The healthcare professional performing any procedure is responsible for determining the appropriateness of this equipment and the specific technique for each patient. Stryker, as a manufacturer, does not recommend surgical technique. • ALWAYS allow the equipment to reach the specified operation temperature range before use.
  • Page 4 NOTES: • Cutting accessories are sterilized using irradiation. • For a complete list of accessories, contact your Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest Stryker subsidiary.
  • Page 5 The symbols located on the equipment and/or labeling are defined in this section or in the Symbol Definition Chart. See the Symbol Definition Chart supplied with the equipment. SYMBOL DEFINITION Cord Alignment Mark HANDSWITCH ― Handswitch Alignment Mark General warning sign www.stryker.com...
  • Page 6 NOTE: When installed correctly, a small gap will exist between the attachment and the handpiece due to the anti-rotation pin. The gap should be 0.025 inches [0.65 mm] or smaller. The gap will not hinder the function of the attachment and/or the handpiece. www.stryker.com...
  • Page 7 To Remove an Attachment Firmly grasp and pull the attachment from the attachment connector. Final Disassembly 1. Unplug the cord from the console and from the handpiece. 2. Remove attachment as described above. www.stryker.com...
  • Page 8: Troubleshooting

    6400-015-700 Rev-AA Troubleshooting WARNING: DO NOT disassemble or service this equipment without the authorization of the manufacturer. NOTE: For service, contact your Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest Stryker subsidiary. PROBLEM CAUSE...
  • Page 9: Care Instructions

    Relocate electrical equipment; increase spatial distance. Plug operating room equipment into different operating room outlets. Care Instructions For processing instructions and disposal/recycle information, see the care instructions manual supplied with the equipment. www.stryker.com...
  • Page 10: Specifications

    50000 rpm Mode of Operation: Non-continuous Operation Duty Cycle: 20 seconds on/20 seconds off, 10 times Rest Between Cycles: 30 minutes Stryker CORE 2, CORE, or TPS Power Supply: Console 40 V (Direct Current) Equipment Type: Type BF Applied Part Maximum Less than 124 °F [51 °C] (Maximum...
  • Page 12 ES/DE/FR/IT/NL 6400-015-713 JA/ZH/KO 6400-015-720 SV/DA/FI/PT/NO 6400-015-730 PL/EL 6400-015-750 Stryker Instruments 4100 E. Milham Kalamazoo, Michigan (USA) 49001 1-269-323-7700 1-800-253-3210 2018-10 6400-015-700 Rev-AA www.stryker.com...
