LED World LS2 Manual

LS2 - RGBW Color Receiver
BEFORE YOU BEGIN, READ ALL WARNINGS AND INSTALLATION INSTRUCTIONS (AS THEY MAY HAVE BEEN UPDATED FROM PREVIOUS VERSIONS ).
IMPROPER INSTALLATION(S) PRESENT HAZARDS, WHICH CAN RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE.
SAFETY & WARNINGS
Securely mount the LS2 using the two mounting points at each end.
This product is intended to be installed and serviced by a qualied licensed electrician. Install in accordance with the National Electric Code,
and local regulations.
Only power with a regulated (listed) constant voltage Class 2 power supply (12-24V DC).
Ensure applicable wire is installed between driver, xture, and any controls in between. When choosing wire, factor in voltage drop, amperage
rating and type (in-wall rated, wet location rated, etc.). Inadequate wire installation could overheat wires and cause re.
This product is rated for indoor installation and only for dry locations. Do not install in washrooms or areas near water (or the possibility of in
the future).
Do not modify this product beyond the instructions in this guide or the warranty will be voided.
Wiring diagrams in this installation guide for basic installations. Please carefully review your installation before proceeding with a qualied
electrician familiar with low voltage wiring techniques.
INTRODUCTION
5 in 1 (RGB, RGBW, CCT, RGB+CCT and single color) controller is the wireless controller works with wireless remote FUT089. The LS2
controller features mesh network and auto-synchronizing function with brightness, CCT, RGB, RGBW and RGB+CCT output mode. LS2
controller uses 2.4GHz wireless technology. It consumes less power, transmits signal over a long distance and it is anti-interference.

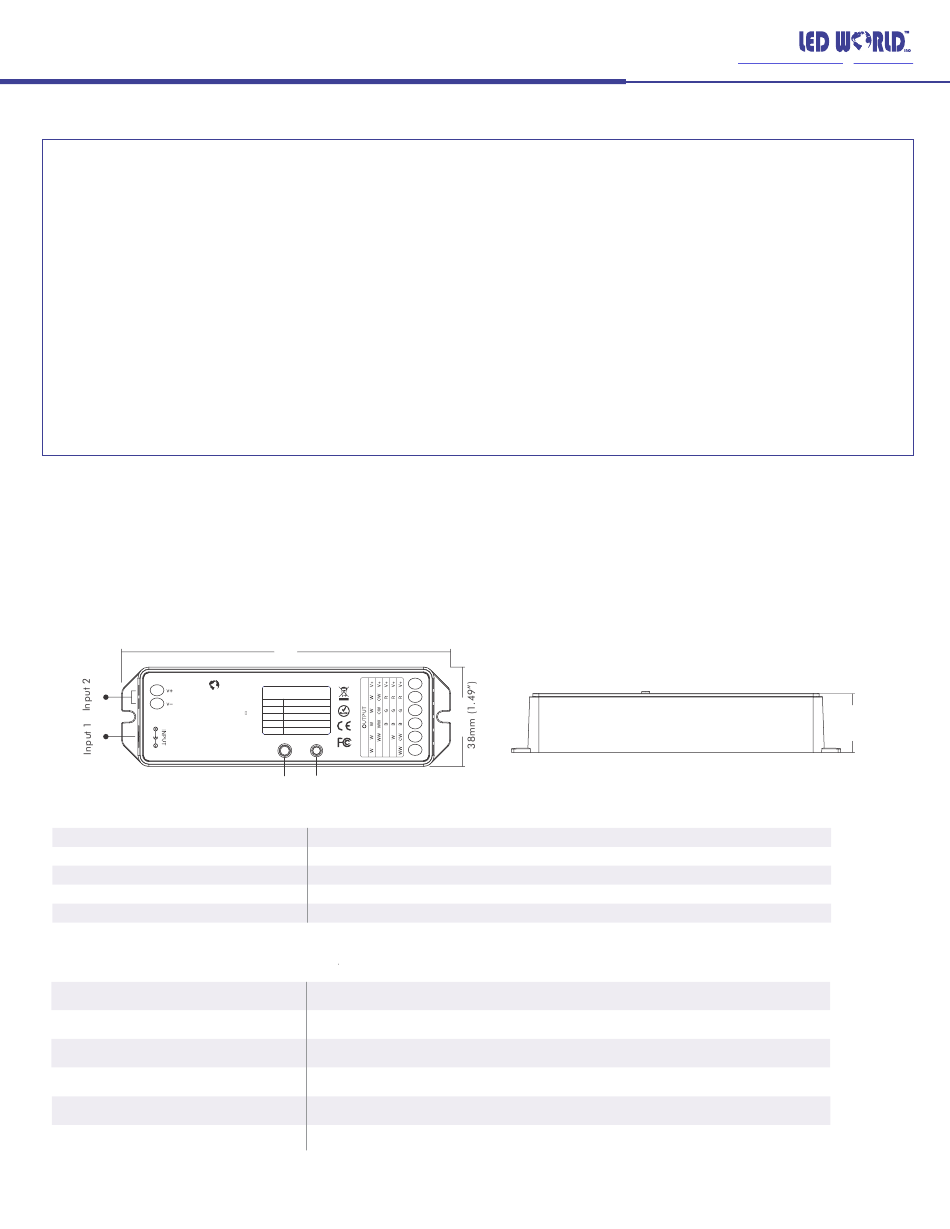

LS2 OPERATION OVERVIEW
LED W RLD
ledworldlighting.com | ledworld.ca
5 IN 1 Smart LED Controller
Model No.: LS2
Working Temperature: -20~60
Input Voltage: DC12V~24V
Output: 3A/Channel
Total Max input: 5A
2.4G wireless controller
Use only with regulated Class 2
power source
Made in China
Indicator light
Indicator light color instruction:
White
Yellow
Red
Green
Blue
LS2 TECHNICAL SPECIFICATIONS
Input voltage
Output
Compatible remote control
Remote Distance
Working temperature
Dimension
1/3
Copyright © 2019 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
124mm (4.88")
™
Indicating lamp
I NC
show output mode
White Single Color Mode
Yellow Dual White Mode
Red RGB Mode
Green RGBW Mode
Blue RGB+CCT Mode
Indicator light Switch
Output mode switch
Single color mode
Dual White Mode
RGB Mode
RGBW Mode
RGB+CCT Mode
DC12V-DC24V Class 2 Regulated
5A/channel, Max 5A
FUT089
22.8m (75 Feet) Clear line of sight
-20°C~40°C (-4°F~104°F)
L124mm(4.88") × W38mm(1.49") × H23mm(0.9")
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 2.0 09/25/2019
ledworldlighting.com ledworld.ca |
1-800-387-4081
23mm (0.9")
