T3-5A Receiver Manual
Safety & Warnings
Securely mount the T3-5A using the two mounting points at each end.
This product is intended to be installed and serviced by a qualied licensed electrician. Install in accordance with
the National Electric Code, and local regulations.
Only power with a regulated (listed) constant voltage Class 2 power supply (12-24V DC).
Ensure applicable wire is installed between driver, xture, and any controls in between. When choosing wire,
factor in voltage drop, amperage rating and type (in-wall rated, wet location rated, etc.). Inadequate wire
installation could overheat wires and cause re.
This product is rated for indoor installation and only for dry locations. Do not install in washrooms or areas near
water (or the possibility of in the future).
Do not modify this product beyond the instructions in this guide or the warranty will be voided.
Wiring diagrams in this installation guide for basic I
before proceeding with a qualied electrician familiar with low voltage wiring techniques.
:
Warning Input voltage must be identical to output voltage of the LED Fixture!
WIRE 6-8MM (0.25-0.30")
Exposed wire should not be more than 6- 8 mm long & solder tip (tinned). Do not allow Wires to
cross and insure all exposed wire is fully inserted into the screw terminals. Hand tighten screw
terminals. Use 22 to 16 AWG gauge wire for output terminals.

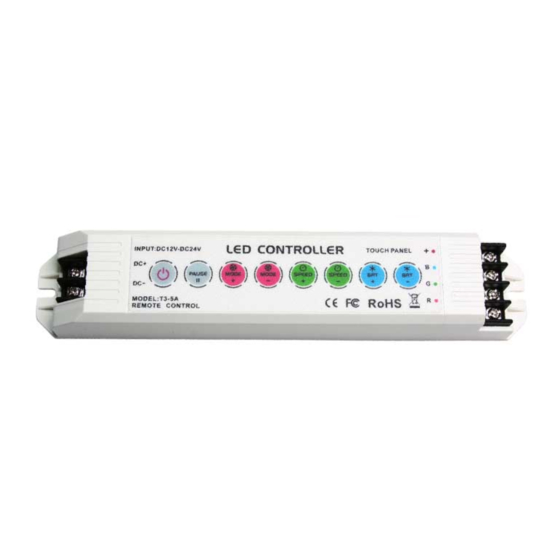

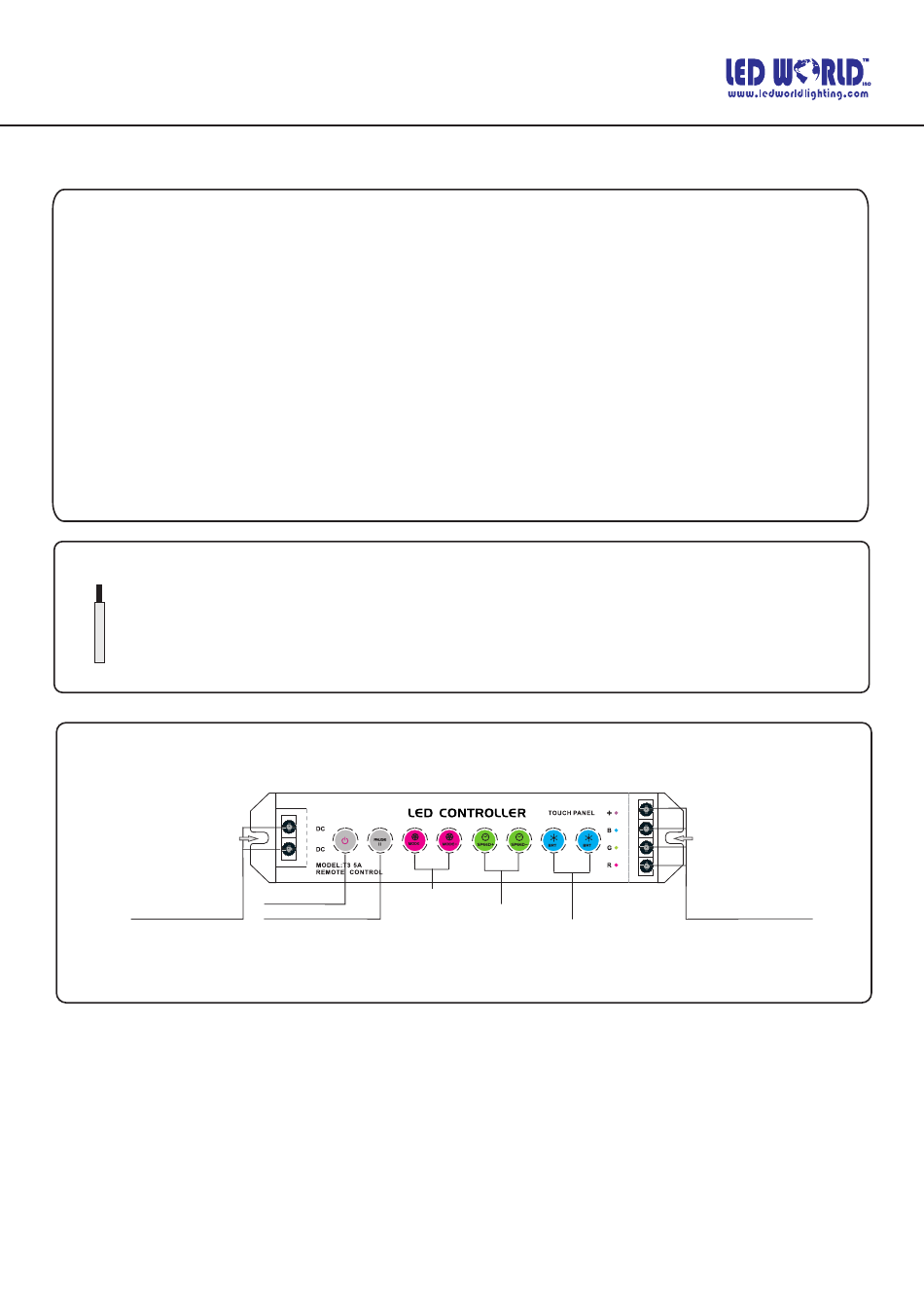

T3-5A Operation Overview
Mounting point
DC12~24V
Class 2 Power Input Socket
Copyright @2014 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
Before you begin, read all warnings and installation instructions.
[+][B][G][R]
INPUT:DC12V-DC24V
+
On/Off Key Mode Keys
Pause Key
Diagram-1
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA
nstallations. Please carefully review your installation
+
-
Speed Keys
Brightness Keys
1-800-387-4081
RGB LED connection socket
