OPERATING INSTRUCTIONS
MOTOR - CONTROLLER MCU 400 D
1. General
The Controller (controllable power supply) is used to regulate the Universal Drives
UA 500 and UA 1500. Its technical data are specified for the operation of these

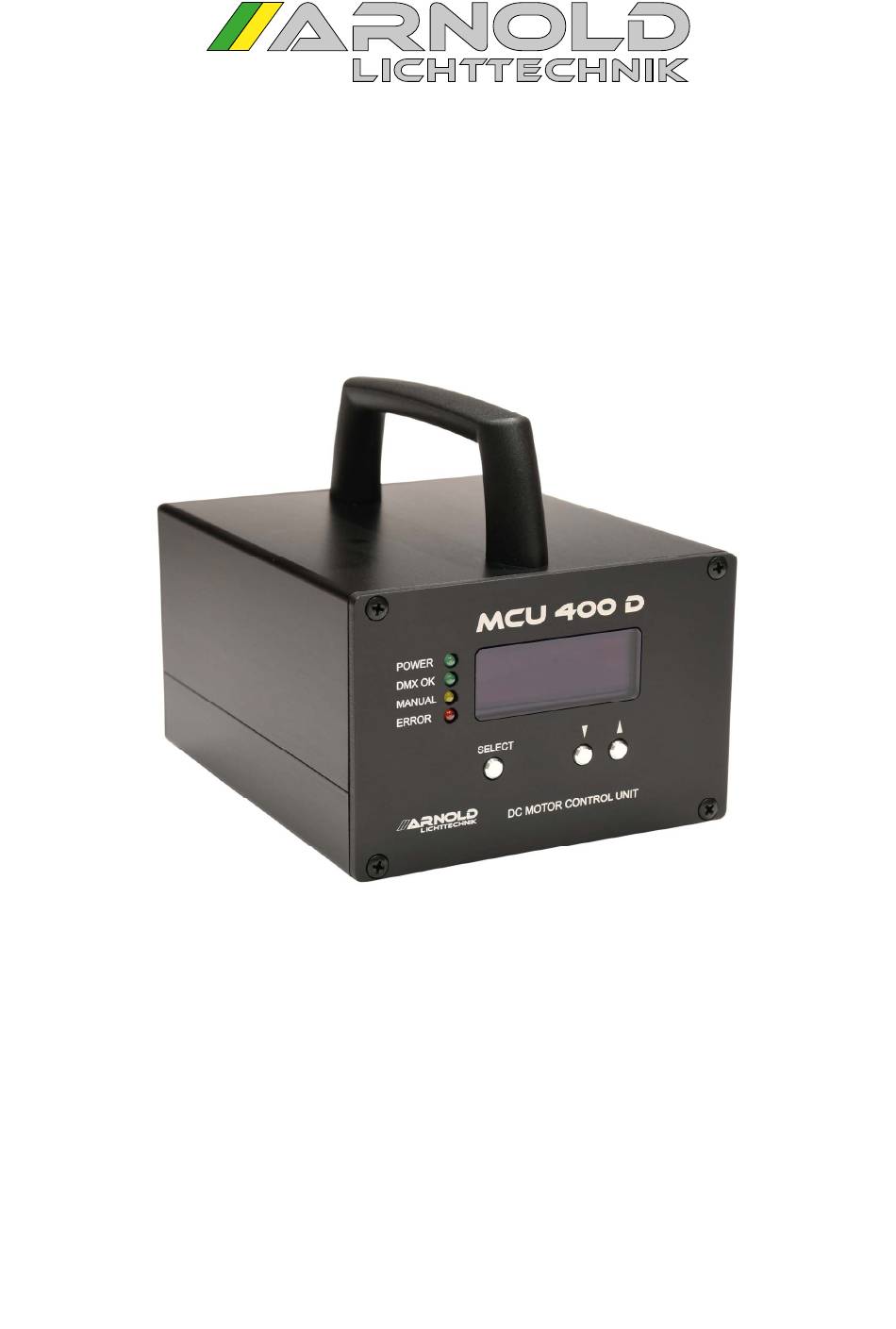

appliances. The front panel contents a OLED display, 3 push buttons as well as
4 status LEDs. The DMX as well as the POWER jacks and the motor connection
can be found at the back side of the unit. The DMX control signal is converted into
a PWM clocked signal with additional reversal inversion of the direction.
1
Advertisement
Table of Contents
Related Manuals for ARNOLD MCU 400 D
Summary of Contents for ARNOLD MCU 400 D
- Page 1 ___________________________________________________________________ OPERATING INSTRUCTIONS MOTOR - CONTROLLER MCU 400 D 1. General The Controller (controllable power supply) is used to regulate the Universal Drives UA 500 and UA 1500. Its technical data are specified for the operation of these appliances. The front panel contents a OLED display, 3 push buttons as well as 4 status LEDs.
- Page 2 2. Operating elements / Display / Operating philosophy 2.1 Controls / Display For the operation and parameterization of the Controller, the unit is equipped on the front with a 2-line OLED display and three pushbuttons. The display shows the current system status, adjustable parameters and service functions. Start screen (DMX operation mode): MODE: 1(1CH) - MODE is showing the present selected operation mode...
- Page 3 The status LEDs arranged on the left side of the display indicate the following states: 1. POWER [green] - Mains voltage is applied 2. DMX OK [green] - DMX signal is present 3. MANUAL [yellow] - Manual mode is activated 4.
-
Page 4: Operating Modes
3. Operating modes For the controlling of the UA500 / 1500 devices, there are three kind of operating modes available: MODE: 1(1CH) 1 Channel-Mode, DMX start-address controls the direction of rotating and speed (Figure A) MODE: 2(2CH) 2 Channel-Mode, DMX start-address controls the direction of rotating, the following address controls the speed (Page 5, Figure B) MODE: 3(MAN) - Page 5 3.2 Two-Channel-Mode (Figure B): motor speed % DMX % The DMX start address controls the direction of rotation. The following address controls the speed of the motor. When the DMX value is 0, the motor stops. The curve characteristics of this mode is linear as shown in the figure above. If the DMX signal fails, the motor stops immediately (no "HOLD"...
-
Page 6: Cabling Diagram
Power Supply 2 x 0,37mm² 12V DC/ 2A max. 20m 12V DC XLR 4-pin MCU 400 D UA 500 UA 1500 XLR 3-pin DMX Control XLX 5-pin Please note that the maximum cable length between controller and motor should not exceed 20 m. -
Page 7: Technical Data
In exceptional cases, this requirement is considered fulfilled if the operator, using a connector, can unplug the drive from the controller unit. ARNOLD Lichttechnik Karl-Marx-Straße 19, 04654 Frohburg / Germany Tel.: +49 34344 64660, Fax: 61528 www.arnoldlicht.de...
