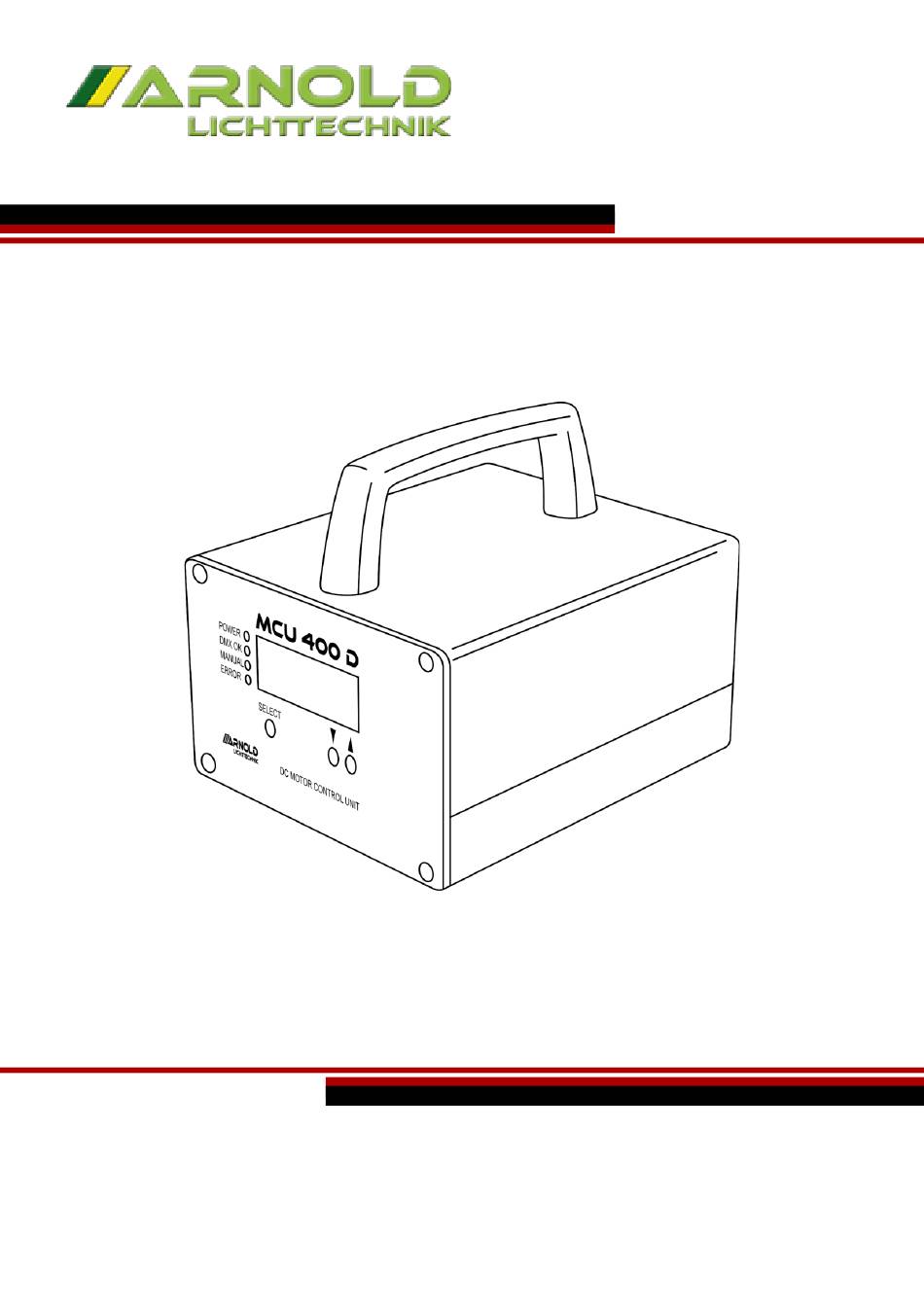

- Page 1 MANUAL ENGLISH Mirrorball Motorcontroller Ordercode: 60455 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Mirrorball Motorcontroller Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Features ..................................6 Front ....................................6 Back ....................................7 Installation ................................... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Arnold Lichttechnik Mirrorball Motorcontroller ● Schuko to 3-pin XLR 12 V power adapter (1,4 m) ●... - Page 4 ● If your Arnold Lichttechnik device fails to work properly, discontinue use immediately. Pack the device securely (preferably in the original packing material), and return it to your Arnold Lichttechnik dealer for service.
-
Page 5: Operating Determinations
Mirrorball Motorcontroller Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● To eliminate wear and improve lifespan, during periods of non-use, completely disconnect from power via breaker or by unplugging. -
Page 6: Return Procedure
Mirrorball Motorcontroller Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the... -
Page 7: Description Of The Device
Mirrorball Motorcontroller Description of the device Features The Arnold Lichttechnik Mirrorball Motorcontroller is a mirror ball control system. ● Input voltage: Power adapter 12 V to 240 V AC, 50 Hz ● Power consumption: 10 W ● Control modes: DMX-512 ●... -
Page 8: Back
Mirrorball Motorcontroller Back Fig. 02 03) 5-pin DMX signal connector THRU 04) 4-pin motor connector OUT 05) 3-pin power adapter connector IN 06) 5-pin DMX signal connector IN Ordercode: 60455... -
Page 9: Installation
Mirrorball Motorcontroller Installation Remove all packing materials from the Mirrorball Motorcontroller. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 10: Setup And Operation
Mirrorball Motorcontroller Setup and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the device in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 110 V specification product on 230 V power, or vice versa. -
Page 11: Multiple Mirrorball Motorcontrollers Setup
Mirrorball Motorcontroller Multiple Mirrorball Motorcontrollers Setup Fig. 04 Note : Link all cables before connecting electric power Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. -
Page 12: Control Panel
Mirrorball Motorcontroller Control Panel A) OLED display UP button C) DOWN button D) SELECT button Fig. 05 DMX Control Mode The devices are individually addressed on a data-link and connected to the controller. The devices respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.) DMX Addressing The control panel on the front of the device allows you to assign the DMX fixture address, which is the first... -
Page 13: Menu Overview
Mirrorball Motorcontroller Menu Overview Main Menu Options 01) Upon start-up, the display will show the current software version. 02) After 3 seconds, the display will show the main menu. 03) Press the SELECT button to activate the selection arrow: 04) Press the UP/DOWN buttons to select one of the 3 operation modes: ●... -
Page 14: Channel Mode
Mirrorball Motorcontroller 1. 1-channel Mode In this mode you can set the DMX starting address and operate the device with a DMX controller. 01) In the main menu, press the SELECT button until the selection arrow appears in the upper line. 02) Press the UP/DOWN buttons until the display shows 1CH: 03) Press the SELECT button to move the selection arrow to the lower line. -
Page 15: Manual Mode
Mirrorball Motorcontroller 3. Manual Mode In this menu you can operate the device manually and set the motor rotation’s speed and direction. 01) In the main menu, press the SELECT button until the selection arrow appears in the upper line. 02) Press the UP/DOWN buttons until the display shows MAN: 03) Press the SELECT button to move the selection arrow to the lower line. -
Page 16: Maintenance
Suspect two potential problem areas as: the power supply and the motor. 01) Power supply. Check if the device is plugged into an appropriate power supply. 02) The motor. Return the device to your Arnold Lichttechnik dealer. 03) If all appears to be O.K., plug the device in again. -
Page 17: Product Specifications
Mirrorball Motorcontroller Product Specifications Model: Mirrorball Motorcontroller Input voltage: Power adapter 12 V to 240 V AC, 50 Hz Power consumption: 10 W DMX linking: 30 pcs Dimensions: 129 x 105 x 105 mm (LxWxH) Weight: 0,8 kg Operating and Programming: Signal pin OUT: Pin 1 (earth), pin 2 (-), pin 3 (+), pin 4 (N/C), pin 5 (N/C) DMX Mode:... -
Page 18: Dimensions
Mirrorball Motorcontroller Dimensions Ordercode: 60455... - Page 19 Mirrorball Motorcontroller Ordercode: 60455...
- Page 20 ©2021 Arnold Lichttechnik...
