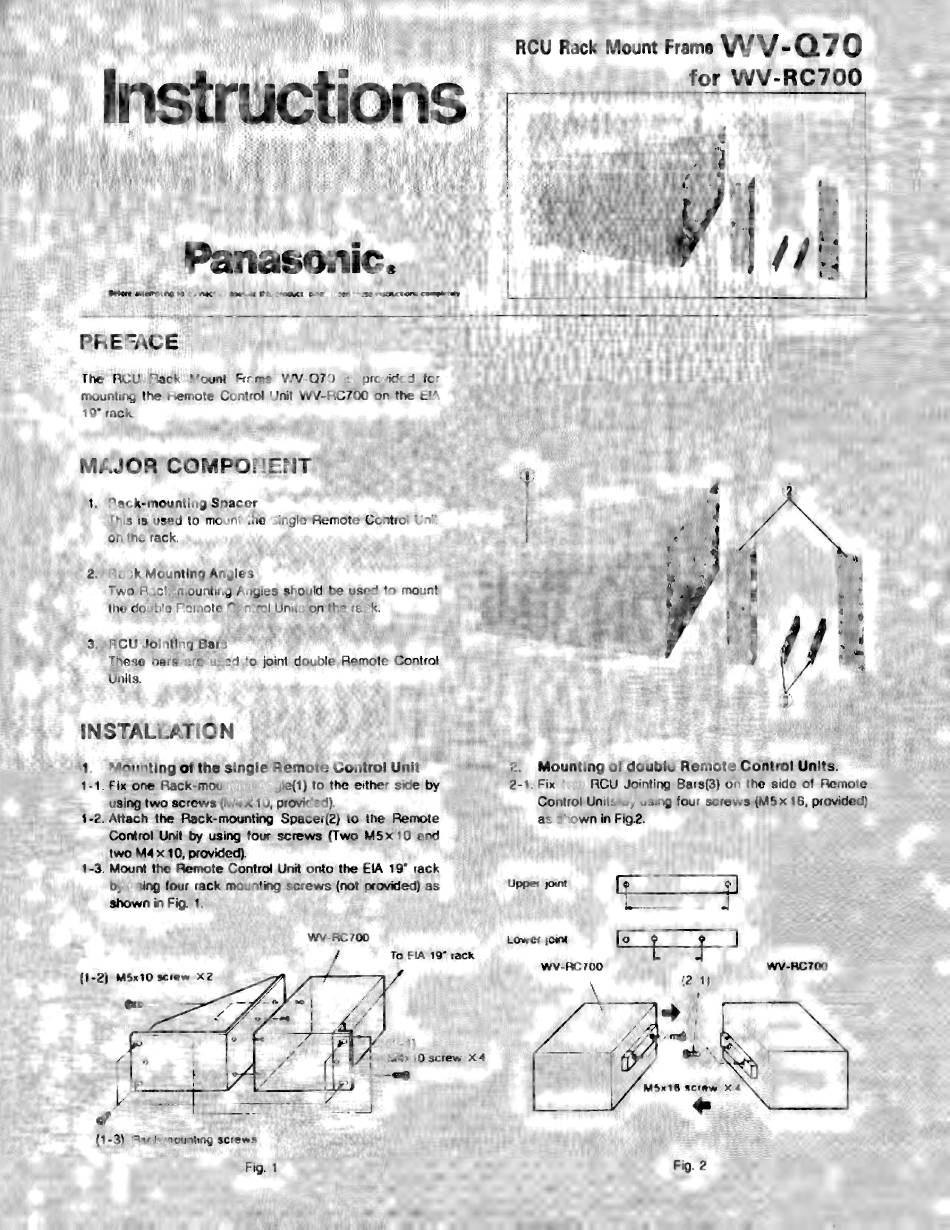

Panasonic WV-Q70 Instructions

Instructions
Panasonic
&
Petore OFOG to Cowwct oF operate this POALI please read these restrictor Competety
PREFACE
The RCU Rack Mount Frame WV-Q70 is provided for
mounting the Remote Control Unit WV-RC700 on the EIA
19° rack.
MAJOR COMPONENT
1. Rack-mounting Spacer
This is used to mount the single Remote Control Unit
on the rack.
2. Rack Mounting Angles
Two Rack-mounting Angles should be used to mount
the double Remote Control Units on the rack,
3. RCU Jointing Bars
These bars are used to joint double Remote Control
Units,
INSTALLATION
1. Mounting of the single Remote Control Unit
1-1. Fix one Rack-mounting Angle(1) to the either side by
using two screws (M4 x 10, provided).
1-2. Attach the Rack-mounting Spacer(2) to the Remote
Control Unit by using four screws (Two M5x 10 and
two M4~x 10, provided).
1-3. Mount the Remote Control Unit onto the EIA 19° rack
by using four rack mounting screws (not provided) as
shown in Fig. 1.
WV-RC700
/ To EIA 19° rack
(1-2) M5x10 screw X2
ee —
(1-1)
on
(1-3) Rack mounting screws
Fig. 1
M4x10 screw X4
RCU Rack Mount Frame WVvV-Q70
for WV-RC700
E
2. Mounting of double Remote Control Units.
2-1, Fix two ACU Jointing Bars(3) on the side of Remote
Control Units by using four screws (M5 x 16, provided)
as shown in Fig.2.
Lower joint be
WV-RC700 WV-RC700
M5x16 screw X4
Fig. 2
