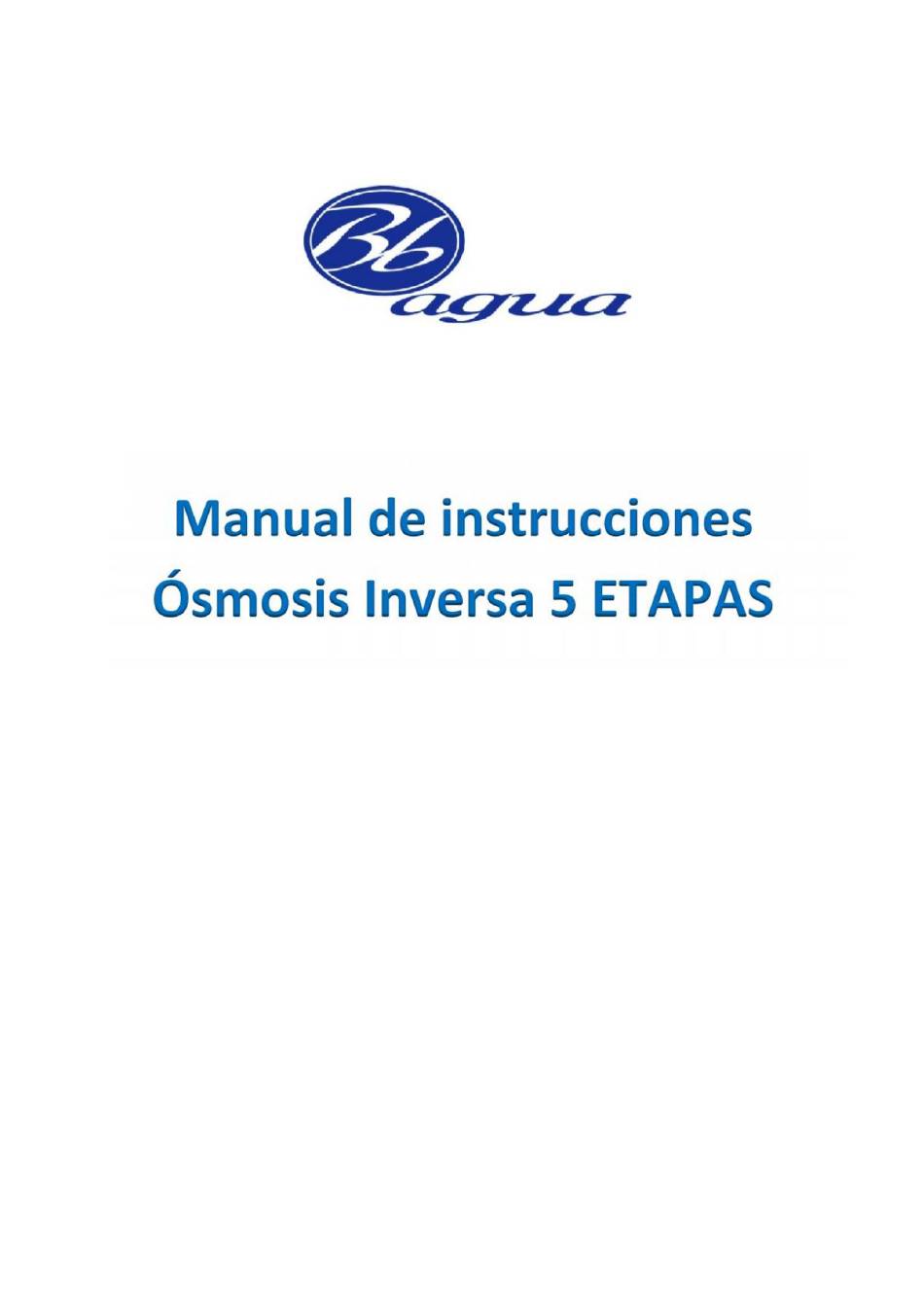

- Page 1 Machine Translated by Google Instruction manual Reverse Osmosis 5 STAGES Models: EUR-50 EUR-50 BP EUR-35 BBbasic...
-
Page 2: Table Of Contents
Installation of the equipment................10 Important points to consider before installing..........10 Installation preparation ..............eleven Installation ..................12 Commissioning of the equipment..............16 Annual maintenance ...............17 Sanitization Protocol. 18 Frequently asked questions or possible breakdowns..........20 Exploded view ..21 Bbagua Installation and Commissioning Service........23... -
Page 3: Presentation
Machine Translated by Google PRESENTATION First of all, we would like to thank you for the trust placed in purchasing one of our equipment. From now on you can enjoy Osmotized water to drink and cook. In your drinking water, you will notice an improvement in taste, just as it will be better for your coffee maker, making ice cubes and juices. -
Page 4: Introduction
Machine Translated by Google Introduction What is the inverse osmosis? Reverse Osmosis equipment is a complete water purification system, and is made up of a set of filters of different types, intended to offer the user a quality of water that is clearly superior to the drinking water supplied to their home by the network, as far as related to chemical and organoleptic properties. -
Page 5: Equipment Composition According To Model
Machine Translated by Google Equipment composition according to model EUR 50 AND EUR-50 BP COMPONENTS EUR-50 BP EUR-50 eleven 1.- Sediment Filter 5 microns 7.-Connection to pressurized tank (piping 2.-Granular carbon filter yellow) 3.-Carbon block filter 8.-Main water inlet (orange pipe) 4.-Membrane casing (place membrane) -
Page 6: Components Eur-35
Machine Translated by Google 6.-Purified water tap outlet (blue pipe) 11.-Membrane 12.-Bomb THE EQUIPMENT DISPLAYED MAY NOT AESTHETICLY MATCH YOURS. COMPONENTS EUR- 35 eleven 1.- Sediment Filter 5 microns 2.-Granular carbon filter 7.-Connection to pressurized tank 3.-Carbon block filter 8.-Network water inlet 4.-Membrane casing 9.-Pressurized tank 5.-Gac postfilter... -
Page 7: Bbbasic Components
Machine Translated by Google THE EQUIPMENT DISPLAYED MAY NOT AESTHETICLY MATCH YOURS. BBBASIC COMPONENTS eleven 1.- Sediment Filter 5 microns 2.-Granular carbon filter 7.-Connection to pressurized tank 3.-Carbon block filter 8.-Network water inlet 4.-Membrane casing 9.-Pressurized tank 5.-Gac postfilter 10.-Drain collar 11.-Membrane 6.-Purified water tap outlet THE EQUIPMENT DISPLAYED MAY NOT AESTHETICLY MATCH YOURS. -
Page 8: Description Of Equipment Components
Machine Translated by Google Description of equipment components Your reverse osmosis equipment is made up of the following components: 5 micron sediment cartridge (1): this filter eliminates suspended particles in tap water. Granular Carbon Cartridges (2) and radial flow (3): their function is to eliminate the chlorine present in the water. -
Page 9: Hydraulic Diagram
Machine Translated by Google Hydraulic diagram... -
Page 10: Installation Of The Equipment
Machine Translated by Google Equipment installation Important points to consider before installing Do not connect the equipment to the hot water supply. The network pressure must be between 3 5 kg/cm2 or bar. If you have less than 3 bars, you must install equipment with a pump, EUR-50 BP. If the pressure exceeds or equals 5 bar, a pressure regulator rated at 4.5 bars must be installed. -
Page 11: Installation Preparation
Machine Translated by Google Installation Preparation The first step is to unpack the three cartridges, removing the plastic packaging. Next we will place them in their container glass with the gaskets upwards. The first to place and looking at the equipment from the front, and from right to left, is the sediment one, then the granular carbon and finally the block (meshed) carbon. -
Page 12: Installation
Machine Translated by Google Facility Water intake placement: Turn off the cold water hose that supplies your kitchen faucet. If there is not one, turn off the main water tap in your home. Unscrew the cold water hose. Install the 3/8 wrench included in the installation kit, placing the gaskets (Although Teflon is better) Later reconnect the hose to the 3/8 socket recently installed. - Page 13 Machine Translated by Google Dispenser faucet placement: Drill a 12mm hole in the sink, making sure the bottom is accessible for the connection. Insert the thread of the faucet together with the chrome trim ring and the sealing gasket through the top of the countertop or sink.
- Page 14 Machine Translated by Google Drain connection : It is advisable to install the collar after the sink siphon to avoid noise from water rejection, although it can also be installed before. Make a 6mm hole, place the collar by tightening the nuts. Connect one tube to the drain and the other end to the restrictor (DRAIN).
- Page 15 Machine Translated by Google To ensure tightness, use roll (not thread) Teflon for the tank thread and tighten it by hand without overtightening. Subsequently, connect another pipe that joins the tank with the other end of the post filter (TANK). fifteen...
-
Page 16: Commissioning Of The Equipment
Machine Translated by Google Commissioning of the equipment Check that all connections are secure and tight. Disconnect the pipe that goes from the third filter outlet to the 4- way valve, taking it to a bucket or drain. Slowly open the water tap and you will be able to see how black water begins to come out of the pipe that we just disconnected. -
Page 17: Annual Maintenance
Machine Translated by Google Annual maintenance BBagua equipment has been designed so that you can easily carry out maintenance yourself, although we always recommend that it be carried out by qualified official service personnel. It is important to establish a schedule for cartridge replacement and maintenance operations to avoid premature deterioration of the membrane. -
Page 18: Sanitization Protocol
Machine Translated by Google Sanitization Protocol for your equipment According to RD 140/2003, all water treatment equipment must be properly maintained by sanitizing the equipment whenever there is a risk of contamination when handling It is recommended to perform this procedure before placing the new maintenance cartridges. - Page 19 Machine Translated by Google 6) Screw back on and tighten the three cups with the tool wrench. without inserting the cartridges. 7) Open the mains water supply tap and close the osmosis water tap, run the Osmosis equipment to send the solution to the tank and let it act for 20 to 30 minutes.
-
Page 20: Frequently Asked Questions Or Possible Breakdowns
Machine Translated by Google Frequently asked questions or possible breakdowns FAULT LOCATION SOLUTION FILTERS Possible damaged gasket, it must be replaced. WATER LEAK It doesn't cut because the cylinder must be worn out. Replace tap CONNECTIONS Possible lack of Teflon TANK Lack of air in tank. -
Page 21: Exploded View
Machine Translated by Google Standard Reverse Osmosis Exploded View Photo Code Description GS521001.0 Elbow ¼ X ¼ 521000.3 Elbow ¼ x 1/8 521000.2 Non-return elbow GS524003.0 1/4 thread GS700021.2 Tank key GS530010 Key open filters and membrane 110014.0 BBbasic flow restrictor 110012.0 EUR-50 Flow Restrictor 110015... - Page 22 Machine Translated by Google 530145 Glass 10 EUR-35/BbBasic GS510004.0 ¼ pipe kit 700004.0 Deposit EUR-50 (plastic) 700000.0 Tank 10L EUR-35/ Bbbasic (Metal) GS110102 Drain collar 110208 Osmosis Faucet EUR-50 GS110207 Osmosis Faucet EUR-35/Bbbasic GS110021 Pressure reducer ¼ GS110100.0 Water intake 3/8 GS530144.0 Glass gasket 10 EUR-35 Glass gasket 10 EUR-50...
-
Page 23: Bbagua Installation And Commissioning Service
Bbagua service. 2. Any manipulation of the equipment by personnel not authorized by Bbagua will automatically void the warranty. 3. The warranty will only be covered as long as annual maintenance is carried out periodically every 12 months, providing documentation. - Page 24 Machine Translated by Google BBagua will not accept returns of equipment that has been installed and used. Customer service in 902.14.14.74 on Facebook or www.bbagua.com...
