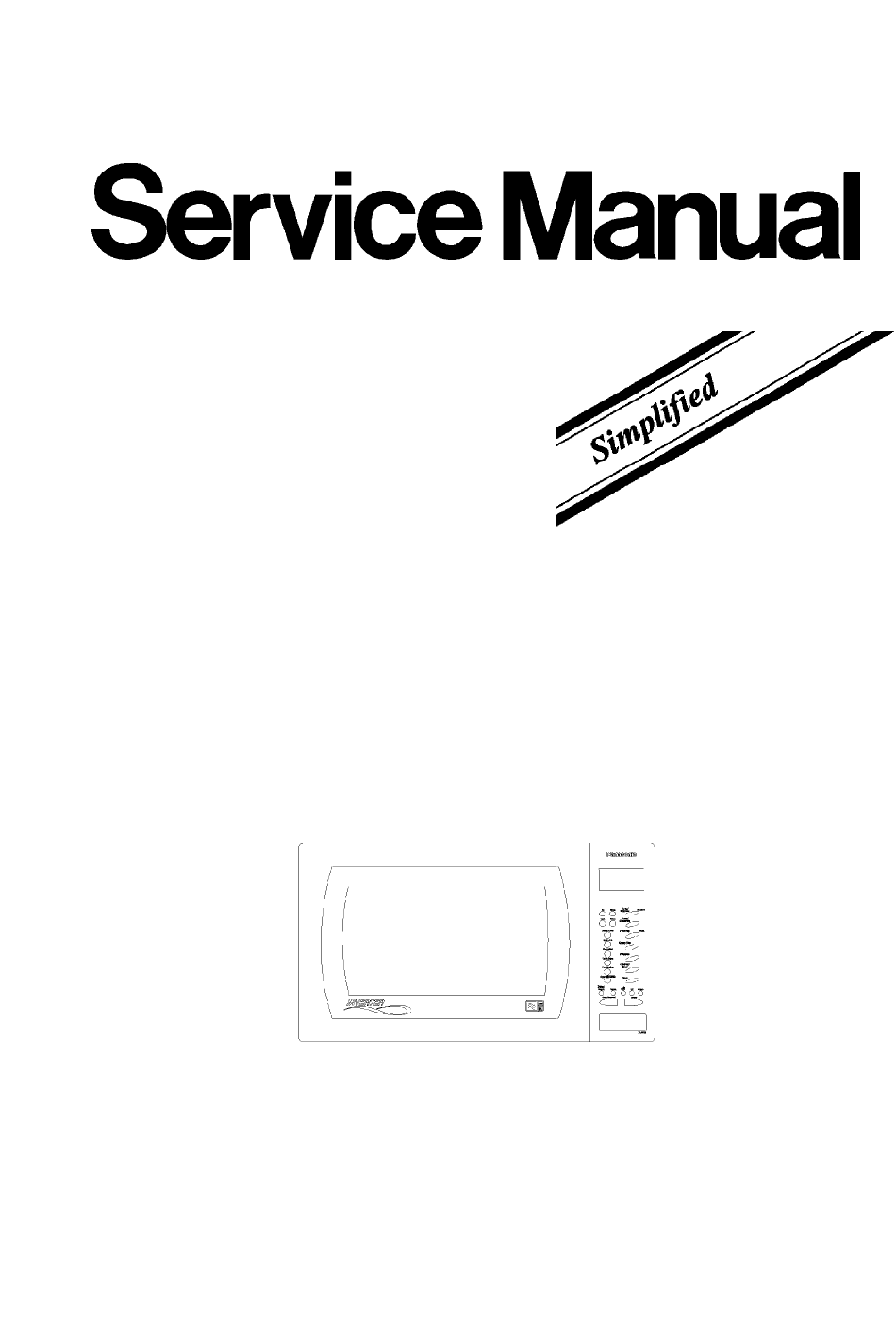

MOP0304001A2
Microwave Oven
NN-A753WBBPQ / NN-A723MBBPQ / NN-A773SBBPQ / NN-
A713ABBPQ
27L
BPQ United Kingdom
Please file and use this manual together with the service manual for
Model No. NN-A750WB NN-A720MB NN-A770SB, Order
No.MOP0080014C2. Refer to the original service manual for
technical information. All spare parts for the models listed above
are included in this simplified service manual.
SPECIFICATIONS
