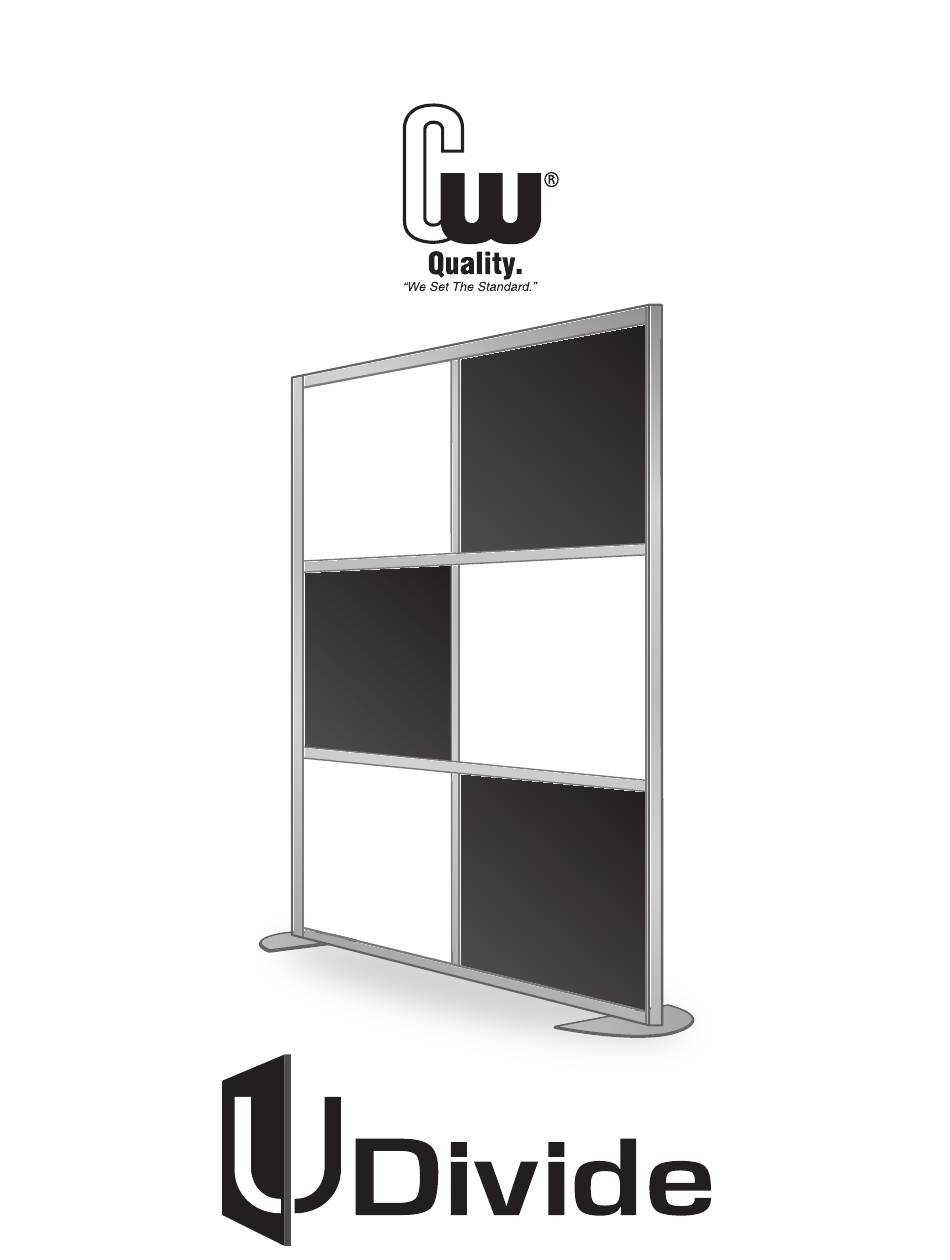

- Page 1 Parts and Instructions ™ Partition & Divider System...
- Page 2 Illustrated Parts Breakdown (IPB) Model uDivide™ ITEM DESCRIPTION PART NUMBER Base Plate 5970SC Square Stem A5900MF Round Post (1 Side) A5930SC Frame Bar - Horizontal A5910SC Frame Bar - Vertical A5910SC Insert AIS - 2323xx Lock - Male A5960 Lock - Female...
- Page 3 Installing Horizontal Bars, Vertical Bars and Panel Inserts Connect the Base to the Stem Post using the two screws provided. Countersunk holes should be facing down to the oor. Stem Post Slip Stem Post into Main Post slot making sure the slot in the Main Post is facing as shown in Fig #1 then Base insert the Vinyl Gasket.
- Page 4 Slide the rst Horizontal Bar with Vinyl Gasket into place at the bottom of the two Main Post slots as shown in Fig #3. Fig #3 Remember to peel away all protective lm from Insert Panels before installing. Slide Panels down inside the vertical slots of the Main Posts.
-
Page 5: Final Assembly
Final Assembly Repeat steps for installing all Horizontal and Vertical Bars; remember to tighten all Hex Nuts. Install Post Caps using two-way tape provided. Post Caps Page 5... - Page 6 Contractors Wardrobe ® Designers & Manufacturers ® ™ Contractors Wardrobe , 26121 Avenue Hall, Valencia, CA 91355 Phone: 661.257.1177 Fax: 661.257.4907 www.CwDoor. com ®...
