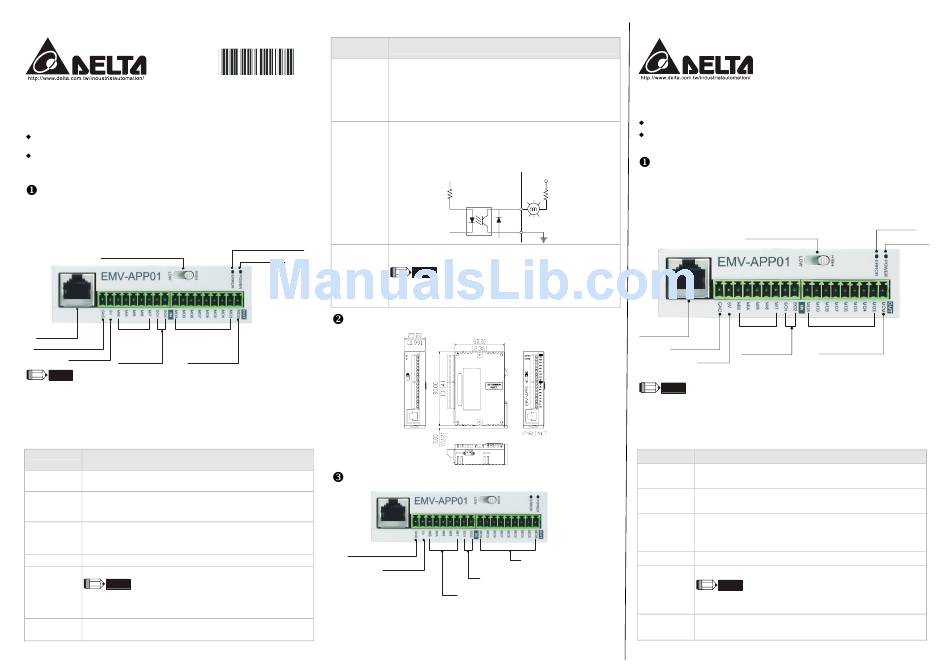

Delta Electronics Multi-function I/O Extension Card EMV-APP01 Instruction Sheet

EMV-APP01
Multi-function I/O Extension Card
Instruction Sheet
Please thoroughly read this instruction sheet before installation and putting it
into use.
The content of this instruction sheet and the driver file may be revised
without prior notice. Please consult our distributors or download the most
updated instruction version at http://www.delta.com.tw/industrialautomation.
Function Explanation
EMV-APP01 is optional I/O extension card for VFD-VE series of AC motor drive.
Due to communication via RS-485 communication port (COM1), to ensure
normal communication, please set COM1 communication protocol (Pr 09-04) to
''8, N, 1 for RTU '' regardless of switch for high or low baud rate.
Sw itch f or hi gh /lo w b a ud ra te
Mu lti -f un ctio n
Mu lti -f un ctio n
R S48 5 Po rt
Ou tp ut Termi na l
In pu t Te rmin al
An al og Si gn a l Co mmo n
An al og O ut pu t
Mu lti -f un ctio n
Po we r O utp u t
Termi na l
Ou tp ut C ommo n
NOTE
When switching baud rate, firstly you should disconnect RS-485 cable, then switch
for high or low baud rate and set AC motor drive baud rate (Pr 09-01) to correspond
with the switch's baud rate. Only if the user does as the description above, you can
switch baud rate successfully. If you don't disconnect RS-485 cable firstly and switch
for high or low baud rate directly, you still can see ERROR LED displays normal
communication, whereas, actually the communication fails, even if AC motor drive
baud rate (Pr 09-01) is corresponding to the switch's baud rate.
Terminal
Explanation
Symbol
POWER Power Indicator. If the connection between EMV-APP01 and AC
motor drive is right, this LED will be steadily on.
ERROR Communication Indicator. If the EMV-APP01 can communicate
with AC motor drive normally, this LED will be on; if not, it will
blink.
HIGH/LOW Switch for high/low baud rate
HIGH: Set EMV-APP01's baud rate to 115200
LOW: Set EMV-APP01's baud rate to 9600
5V Power Output: 5VDC/500mA Max
GND Analog Signal Common
NOTE
This terminal is only used with the terminals 5V, SO1, SO2,
MI7~MIB on EMV-APP01. DO NOT confuse with the control
terminal "DCM" on AC motor drive.
SO1-GND Analog Output Terminal: 0~10.0V (Output Current: 2mA Max)
SO2-GND Analog output value is defined by Pr.03-21 and Pr.03-24.
Terminal
2008-09-11
Symbol
MI7~MIB Multi-function Input Terminal
Refer to Pr.02-23 to Pr.02-27 for programming the multi-function
5011674801-E MV1
inputs.
For example: MI7-GND
ON: the activation current is 6.5mA.
OFF: leakage current tolerance is 10μA.
MO3~MOA Multi-function Output Terminal (Photocoupler)
AC motor drive output various signals by open collector, such as
AC drive operating, frequency attained, overload indication and
so on. Refer to Pr.02-35 to Pr.02-42 for programming the
multi-function outputs.
C ommu ni cati o n In di ca to r
MCM Multi-function Output Common
Po we r In d ica tor
Max: 48Vdc/50mA
This terminal is only used with "MO3" ~ "MOA" terminal on
EMV-APP01. DO NOT confuse with the control terminal "MCM" on
AC motor drive.
Dimension
Wiring Diagram
An al og Si gn a l Co mmo n
Po we r O utp u t
When wiring, please refer to Parameter Group 02 and 03 in Chapter 4
Parameters for programming the multi-function inputs/outputs. The user could
choose suitable setting functions to meet your own needs.
Explanation
Max: 48Vdc/50mA
MO3~MOA-MCM
MO3
~
MOA
MCM
Internal Circuit
NOTE
R efe r to Pr.0 2-3 5 to Pr.02 -42
fo r p rog rammi ng
R efe r to Pr.0 3-2 1 a nd Pr.03 -24
fo r p rog rammi ng
R efe r to Pr.0 2-2 3 to Pr.02 -27
fo r p rog rammi ng
EMV-APP01
多功能擴充卡說明書
請詳細閱讀下列說明後才使用本產品，以確保使用安全。
由於產品精益求精，當內容規格有所修正時，請洽詢代理商或至台達網站
(http://www.delta.com.tw/industrialautomation )下載最新版本。
功能說明
多功能擴充卡（EMV-APP01）是專為 VFD-VE 系列產品所設計的選購品。藉由
RS-485 通訊接口(COM1)與交流馬達驅動器作使用，為了確保通訊使用正常，無
論多功能擴充卡（EMV-APP01）的波特率切換開關（高速/低速） ，都需要將驅動
器(COM1)通訊格式(09-04)設置在 8，N，1 RTU 模式。
/
高 低波 特率切 換開 關
RS485通訊 口
多功 能輸 出端 子
多功 能輸 入端 子
類比 信號 共同 端子
類比 輸出 端子
輸出 電源
NOTE
當要切換通訊高/低波特率時，請先將 RS-485 的通訊線拔除後，切換高/低波特率開
關，更改驅動器的通訊波特率(09-01)為開關相對應的波特率，才能真正切換完成。若
先切換高/低波特率開關，未先將 RS-485 的通訊線拔除，即使更改驅動器的通訊波特
率(09-01)為開關相對應的波特率，ERROR 燈雖還是顯示正常，但實際上通訊功能無
效。
端子名稱 說明
POWER
電源指示燈，當多功能擴充卡（EMV-APP01）與驅動器的連接正
指示燈 確，才會亮燈。
ERROR
通訊指示燈，當多功能擴充卡（EMV-APP01）與驅動器可以通訊
時，會亮燈；當無法正常通訊時，此燈會閃爍。
指示燈
HIGH/LOW
擴充卡波特率切換開關。
開關
HIGH：設置擴充卡的通訊波特率為 115200。
LOW：設置擴充卡的通訊波特率為 9600。
5V 輸出電源 500mA Max
GND
類比信號共同端子
NOTE
此 GND 僅與多功能擴充卡（EMV-APP01）上的 5V、SO1、SO2、
MI7~MIB 使用，請勿與驅動器上的控制端子 DCM 混淆。
SO1-GND
多功能類比電壓輸出端子 0~10.0V（輸出電流：2mA Max）
SO2-GND
類比輸出量由參數 03-21 和 03-24 定義。
通訊 指示 燈
電源 指示 燈
多功 能輸 出共 同端
