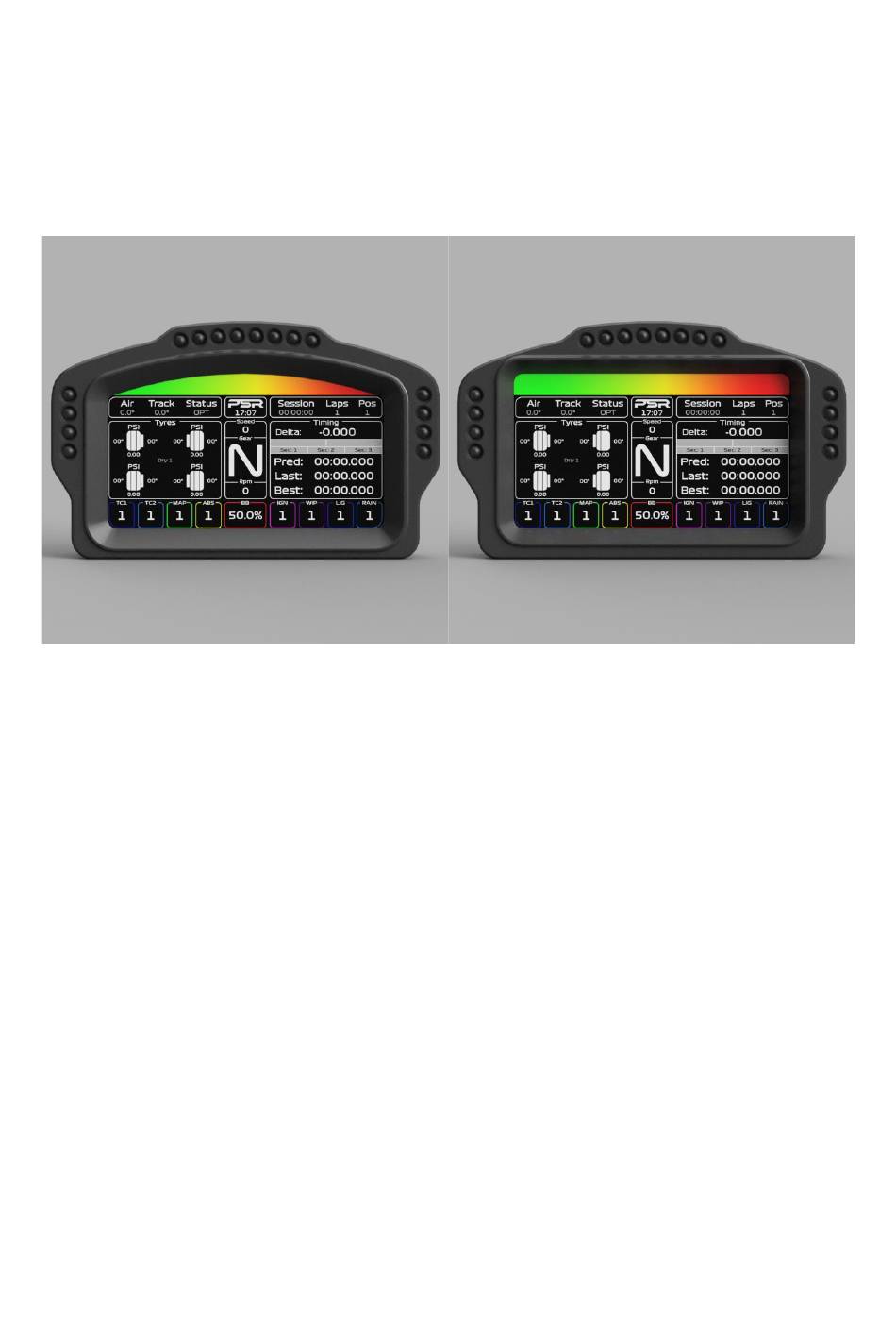

- Page 1 PSR GT5.0 Dashboard Installation guide...
-
Page 2: Table Of Contents
Contents Mounting instructions.........................3 Fanatec wheelbases ........................3 Supplied hardware: .........................3 Installation ............................3 Simagic wheelbases ........................4 Supplied hardware: .........................4 Installation ............................4 Simucube Pro/Sport wheelbases .....................5 Supplied hardware: .........................5 Installation ............................5 Simucube Ultimate wheelbases.......................6 Supplied hardware: .........................6 Installation ............................6 Mige 130ST (VRS DFP, OSW, Sim-plicity SW20) wheelbases.............7 Supplied hardware: .........................7 Installation ............................7 Moza R5/R9 wheelbases .........................8... -
Page 3: Mounting Instructions
Countersunk hex m6 x 14mm (2x) Installation To mount the “PSR GT5.0 Dashboard Fanatec mount” the two threaded holes above the wheelbase will be used to secure the mount in place. 1. Hold the mount into position and partially thread the proved hardware into place with and 4mm Allen key. -
Page 4: Simagic Wheelbases
Countersunk hex m8 x 45mm (2x) Installation To mount the “PSR GT5.0 Dashboard Simagic mount” the two-mounting hole at the top of the wheelbases will be used to secure the mount in place. 1. Hold the mount into position and partially thread the proved hardware into place with and 5mm Allen key. -
Page 5: Simucube Pro/Sport Wheelbases
Countersunk hex m8 x 45mm (2x) Installation To mount the “PSR GT5.0 Dashboard Simucube Pro/Sport mount” the two-mounting hole at the top of the wheelbases will be used to secure the mount in place. 1. Hold the mount into position and partially thread the proved hardware into place with and 5mm Allen key. -
Page 6: Simucube Ultimate Wheelbases
Countersunk hex m8 x 45mm (2x) Installation To mount the “PSR GT5.0 Dashboard Simucube Ultimate mount” the two-mounting hole at the top of the wheelbases will be used to secure the mount in place. 1. Hold the mount into position and partially thread the proved hardware into place with and 5mm Allen key. -
Page 7: Mige 130St (Vrs Dfp, Osw, Sim-Plicity Sw20) Wheelbases
Countersunk hex m8 x 45mm (2x) Installation To mount the “PSR GT5.0 Dashboard Mige 130ST mount” the two-mounting hole at the top of the wheelbases will be used to secure the mount in place. 1. Hold the mount into position and partially thread the proved hardware into place with and 5mm Allen key. -
Page 8: Moza R5/R9 Wheelbases
Countersunk hex m3 x 15mm (2x) Installation To mount the “PSR GT5.0 Dashboard Moza R5/R9 mount” the two-mounting hole at the top of the wheelbases will be used to secure the mount in place. 1. Hold the mount into position and partially thread the proved hardware into place with and 2mm Allen key. -
Page 9: Simhub Instructions
Step 4: Go to the "Arduino" tab, within this tab go to "My hardware". Step 5: If you have multiple devices connect to SimHub you need to select “Multiple Arduinos”. If you only have the PSR GT5.0 Dashboard connected to SimHub, leave it on “Single Arduino”... - Page 10 Step 8: Download and install the driver by unzipping the file and running the application. Step 9: Go back into SimHub and check if the PSR GT5.0 Dashboard is “Connected”. You may need to unplug and reconnect the USB cable for the PSR GT5.0 Dashboard.
- Page 11 Step 11: You can download the PSR GT5.0 Dashboard ARGB LED profile from this link: https://drive.google.com/drive/folders/1PAQu06_Jn- 3PfwwzNywyZ8yMAYcW3Cvb?usp=sharing Step 12: Back in SimHub, select “Profiles manager” and then press the “Import profile” icon...
- Page 12 Step 13: Locate the downloaded profile, press it and select “open”.
- Page 13 Step 14: To load the file, select “Profiles manager” and select the PSR GT5.0 Dashboard LED profile, then select “load”.
- Page 14 Step 15: If you wish, you can customise the aesthetics of the ARGB LEDs. You can do this by pressing on the toggle switch sliders or by customising the code.
- Page 15 Step 16: Back in SimHub, on the left side select the “Devices” tab, then “Add new device” and select “Generic VoCore screen”, then press “Ok”.
- Page 16 Step 17: You will need to download the VoCore screen drivers using this link: https://www.simhubdash.com/devices-driver-installation/ Step 18: Run the file to install the VoCore screen drivers Step 19: Back in SimHub, select “Connect to specific screen” under “Devices” and “Generic VoCore screen”.
- Page 17 Step 20: You can download the PSR GT5.0 displayed dashboard from Race Department using this link: https://www.racedepartment.com/downloads/psr-gt5-0-dashboard-template.57814/ Double click the file to install it. To set the PSR GT5.0 dashboard to your default displayed dashboard press on the tab under “Main dashboard” and select the PSR GT5.0 dashboard.
- Page 18 Step 21: You can program buttons and the VoCore touch screen to specific functions. You can find these functions under “Controls”.
- Page 19 Step 22: In the “Dash Studio” you can see the dashboards you have currently installed, and you can load the dashboard which you want to use and customise them to your liking. Step 23: Select the “Games” tab on the left side, then select the game which you play to configure it. When configuring it for the first time, SimHub will provide you with instruction on how to configure for specific games.
