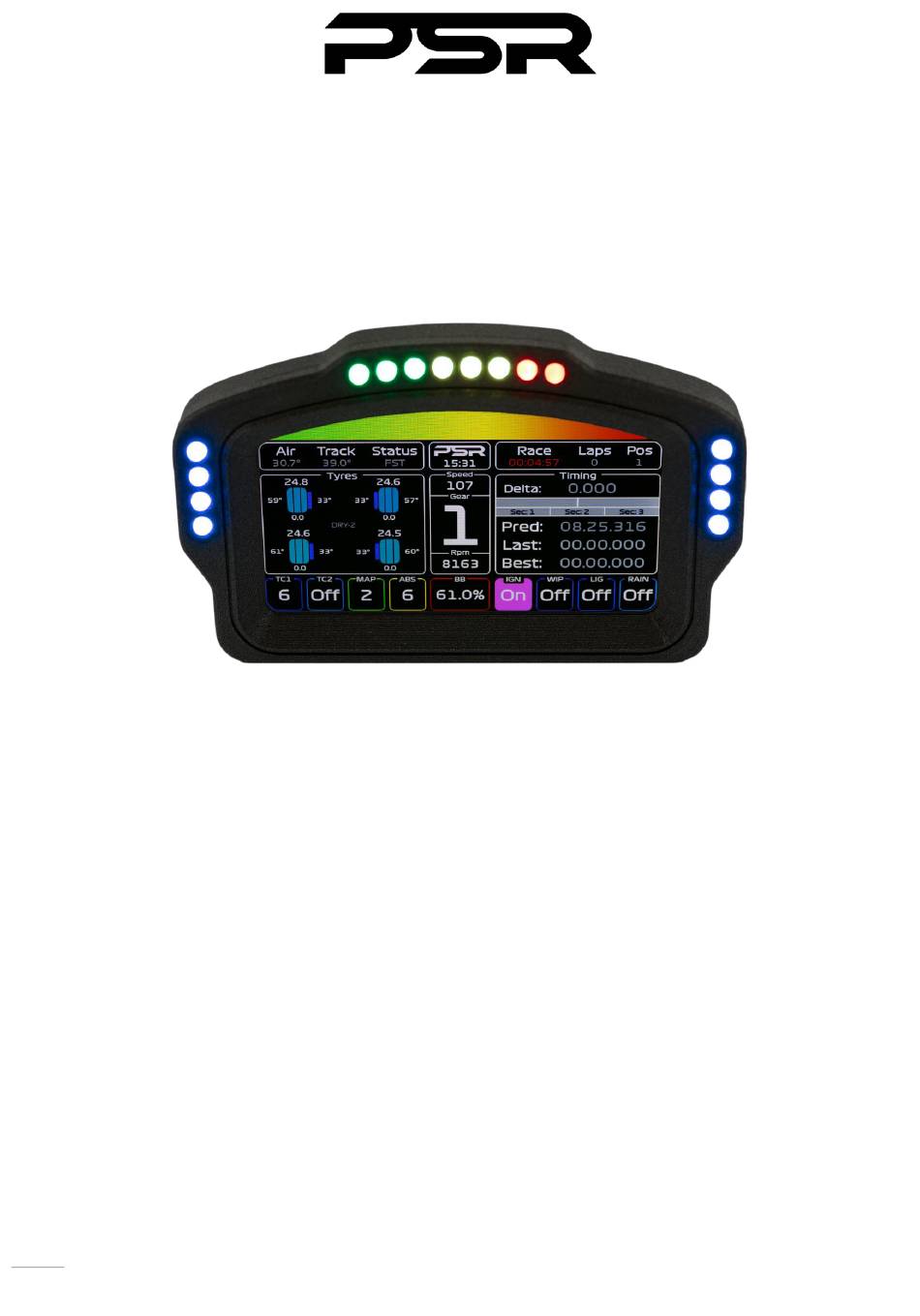

- Page 1 PSR GT5.0 Elite Dashboard Installation guide Printed Sim Racing PSR GT5.0 Elite Dashboard Installation Guide KVK: 89479149...
-
Page 2: Table Of Contents
SimHub configuration ........................12 Optional SimHub configuration: ......................16 Adding a custom LED profile ......................16 Changing the LED behaviour ......................16 Adding custom dashboard templates ................... 16 Troubleshooting ............................ 17 Printed Sim Racing PSR GT5.0 Elite Dashboard Installation Guide KVK: 89479149... -
Page 3: Safety Information
If you have any questions please feel free to contact us at: support@printedsimracing.com The PSR GT5.0 Elite Dashboard is developed for sim racers of all levels. SimHub software is required to be used with the dashboard. Please note the following safety aspects: •... -
Page 4: Mounting Instructions
Countersunk hex m6 x 14mm (2x) Installation To mount the “PSR GT5.0 Elite Dashboard Fanatec mount” the two threaded holes above the wheelbase will be used to secure the mount in place. 1. Hold the mount into position and partially thread the proved hardware into place with and 4mm Allen key. -
Page 5: Simagic Wheelbases
Countersunk hex m8 x 45mm (2x) Installation To mount the “PSR GT5.0 Elite Dashboard Simagic mount” the two-mounting hole at the top of the wheelbases will be used to secure the mount in place. 1. Hold the mount into position and partially thread the proved hardware into place with and 5mm Allen key. -
Page 6: Simucube Pro/Sport Wheelbases
Countersunk hex m8 x 45mm (2x) Installation To mount the “PSR GT5.0 Elite Dashboard Simucube Pro/Sport mount” the two-mounting hole at the top of the wheelbases will be used to secure the mount in place. 1. Hold the mount into position and partially thread the proved hardware into place with and 5mm Allen key. -
Page 7: Simucube Ultimate Wheelbases
Countersunk hex m8 x 45mm (2x) Installation To mount the “PSR GT5.0 Elite Dashboard Simucube Ultimate mount” the two-mounting hole at the top of the wheelbases will be used to secure the mount in place. 1. Hold the mount into position and partially thread the proved hardware into place with and 5mm Allen key. -
Page 8: Mige 130St (Vrs Dfp, Osw, Sim-Plicity Sw20) Wheelbases
Countersunk hex m8 x 45mm (2x) Installation To mount the “PSR GT5.0 Elite Dashboard Mige 130ST mount” the two-mounting hole at the top of the wheelbases will be used to secure the mount in place. 1. Hold the mount into position and partially thread the proved hardware into place with and 5mm Allen key. -
Page 9: Moza R5/R9 Wheelbases
Countersunk hex m3 x 15mm (2x) Installation To mount the “PSR GT5.0 Elite Dashboard Moza R5/R9 mount” the two-mounting hole at the top of the wheelbases will be used to secure the mount in place. 1. Hold the mount into position and partially thread the proved hardware into place with and 2mm Allen key. -
Page 10: Asetek Wheelbases
60mm countersunk M6 bolt (2x) Installation To mount the “PSR GT5.0 Elite Dashboard Asetek mount” the two-mounting hole at the top of the wheelbases will be used to secure the mount in place. 1. Undo the two M6 x 20 hex bolts at the top of the wheelbase. -
Page 11: Simhub Instructions
For the best experience, high refresh rates and low latency please get a SimHub license: https://www.simhubdash.com/get-a-license/ Step 3: Open SimHub and select “Load my license file” to activate the license. Step 4: Download and install the latest VoCore Display driver: https://www.simhubdash.com/devices-driver-installation/ Printed Sim Racing PSR GT5.0 Elite Dashboard Installation Guide KVK: 89479149... -
Page 12: Simhub Configuration
SimHub configuration Step 5: Go to the devices section, select “Add a new device” and look for the “PSR GT5.0 Elite dashboard”. Select the dashboard and press “ok”. (Both the square and round edition use this device name) Note: Older versions of SimHub may not show the PSR GT5.0 Elite Dashboard. Either update to the latest version of SimHub or head over to our website printedsimracing.com ->... - Page 13 2. Our own template with features such delta, pit timer, stint timer and much more. Of course, you can also download any other SimHub template from the internet. Figure 9: LCD menu in SimHub Printed Sim Racing PSR GT5.0 Elite Dashboard Installation Guide KVK: 89479149...
- Page 14 The LED profile will determine the LED behaviour. By default, the top LEDs are to show the RPM. The side LEDs will show traction control and ABS. The PSR LED profile includes many more features, such as spotter, flags, damage indicators and much more.
- Page 15 Figure 11: Controls menu in SimHub Step 9: Select the game that you want to play in the Games tab and you are all set! Figure 12: Selecting a game in SimHub Printed Sim Racing PSR GT5.0 Elite Dashboard Installation Guide KVK: 89479149...
-
Page 16: Optional Simhub Configuration
Optional SimHub configuration: Adding a custom LED profile To add a custom LED profile, open SimHub, Select Devices, PSR GT5.0 Elite Dashboard and go to the LED menu. Select “Profiles manager” and press on “New profile” to make your own profile from scratch or press “Import profile”... -
Page 17: Troubleshooting
Troubleshooting Please note the following if you are having connection issues with the PSR GT5.0 Elite Dashboard: • Update to the latest version of SimHub • Use a power and data USB cable. • Avoid using USB hubs or front panel IO PC case ports. Motherboard USB ports are preferred.
