ADB Safegate 2030 Product Manual

Micro response anemometer

Advertisement

Quick Links

Model 2030
Micro Response Anemometer
PRODUCT MANUAL
2030/Rev C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ADB Safegate 2030

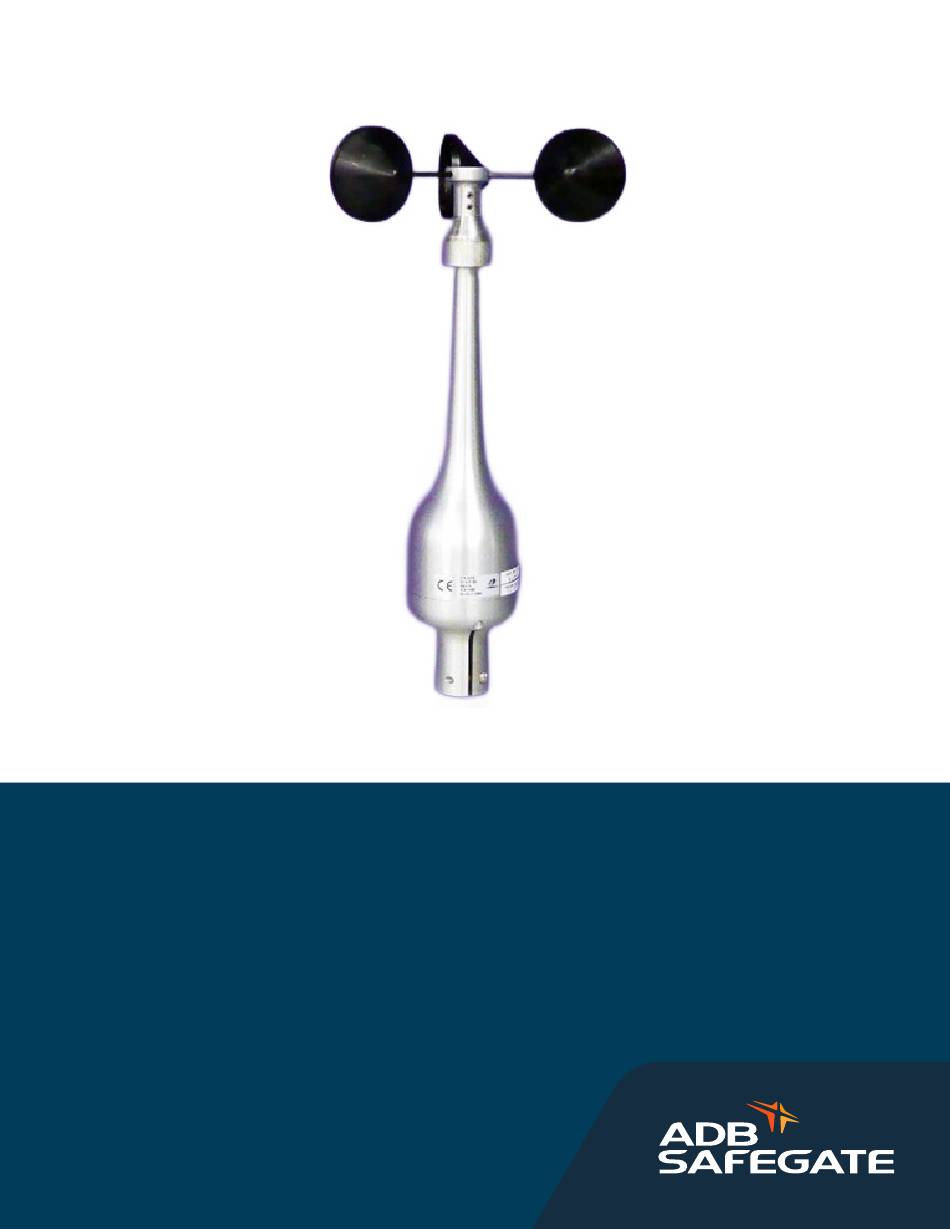

  • Page 1 Model 2030 Micro Response Anemometer PRODUCT MANUAL 2030/Rev C...
  • Page 2: Disclaimer / Standard Warranty

    Material Handling Precautions and Storage precautions that must be followed. ADB SAFEGATE reserves the right to examine goods upon which a claim is made. Said goods must be presented in the same condition as when the defect therein was discovered. ADB SAFEGATE furthers reserves the right to require the return of such goods to establish any claim.
  • Page 3 Model 2030 Micro Response Anemometer Revision History Revision Date Summary of Changes 2011 Mar 11 Initial release 2021 Apr 2 Updated Specifications to current format 2025 Apr 1 ADB SAFEGATE (ECP#ADBSG-0001) CODE& Edition UM-5055, Rev. 1.1.26, 2024/11/13 125 © ADB SAFEGATE, All Rights Reserved...
  • Page 4: Table Of Contents

    Model 2030 Micro Response Anemometer Contents 1. Introduction ..................................5 2. Installation ..................................6 2.1 Assembly ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 2.2 Site Selection ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 2.3 Mounting ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 2.4 Orientation �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 2.5 Wiring ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������7 3. Theory Of Operation ............................... 8 4. Calibration ..................................9 5.
  • Page 5: Introduction

    Model 2030 Micro Response Anemometer 1. Introduction The Model 2030 Micro Response Anemometer is a highly responsive three-cup anemometer that uses a photon-coupled chopper to produce an output pulse with a frequency proportional to wind speed. • The threshold of the anemometer is 1 mile per hour.
  • Page 6: Installation

    This instrument is thoroughly tested and fully calibrated at the factory and is ready for installation. 2.1 Assembly With the exception of installing the cup assembly, the Model 2030 Micro Response Anemometer is ready for mounting. Install the cup assembly as described in the steps below.
  • Page 7: Mounting

    The Model 2030 Micro Response Contact Anemometer mounts directly to the Model 2023 Crossarm without any additional accessories. The crossarm is generally used to mount one each Model 2030 Anemometer and a Model 2020 Vane to form a wind speed and direction measurement set. If the Model 2030 Anemometer is to be mounted separately, a Model 20231 Mast Adapter should be ordered as an accessory.
  • Page 8: Theory Of Operation

    Model 2030 Micro Response Anemometer 3. Theory Of Operation A light emitting diode in combination with a light sensitive transistor is mounted directly to the anemometer connector. A slotted wheel connected to the anemometer shaft rotates with the shaft and interrupts the light beam between the light emitting diode and the phototransistor.
  • Page 9: Calibration

    Model 2030 Micro Response Anemometer 4. Calibration The slotted wheel contains 30 slots, providing thirty electrical pulses per revolution. The output frequency of the anemometer �� may be determined by the following equation: ���� ����ℎ = 9.901(�� − 0.476) ��...
  • Page 10: Maintenance

    Use great care in disassembly and re-assembly of the sensor. Never use excessive force to make parts fit together. Over-tightening of fasteners will either break the fastener or damage the machined threads of the sensor. Any difficulties encountered during servicing that are not correctable by the user should be referred to the ADB Safegate Customer Service Department.
  • Page 11: Maintenance Kit

    5.4 Maintenance Kit A maintenance kit (P/N M488141) is available for the Model 2030 that provides the parts necessary for basic upkeep of the instrument. The kit includes those parts that are the most susceptible to wear, such as bearings and set screws. To order this kit, contact ADB Safegate and specify Part Number M488141.
  • Page 12: Specifications

    Model 2030 Micro Response Anemometer 6. Specifications Parameter Specification Sensor Type 3-cup assembly, carbon graphite composite, 2" diameter cups Transducer Light Chopper Light Source Excitation 12 V DC, 25 mA Output 30 pulses/rev, 900 Hz @ 88.8 mph Range 0–75 m/s (0–168 mph, 0–156 kt) Threshold 0.2 m/s (0.5 mph)
  • Page 13: Warranty

    Model 2030 Micro Response Anemometer 7. Warranty Unless specified otherwise, ADB Safegate (the Company) warrants its products to be free from defects in material and workmanship under normal use and service for one year from date of shipment, subject to the following conditions: The obligation of the Company under this warranty is limited to repairing or replacing items or parts which have been returned to the Company and which upon examination are disclosed, to the Company’s satisfaction, to have been...
  • Page 14: Drawings

    Model 2030 Micro Response Anemometer 8. Drawings The following pages include reference drawings to assist in installation and maintenance of this instrument. CODE& Edition UM-5055, Rev. 1.1.26, 2024/11/13 125 © ADB SAFEGATE, All Rights Reserved...
  • Page 15 ADB SAFEGATE.
  • Page 16 ADB SAFEGATE.
  • Page 17 ADB SAFEGATE.
  • Page 18 Optimizing Airside Operations From approach to take-off SMARTER. BETTER. NOW. w w w . a d b s a f e g a t e . c o m...
