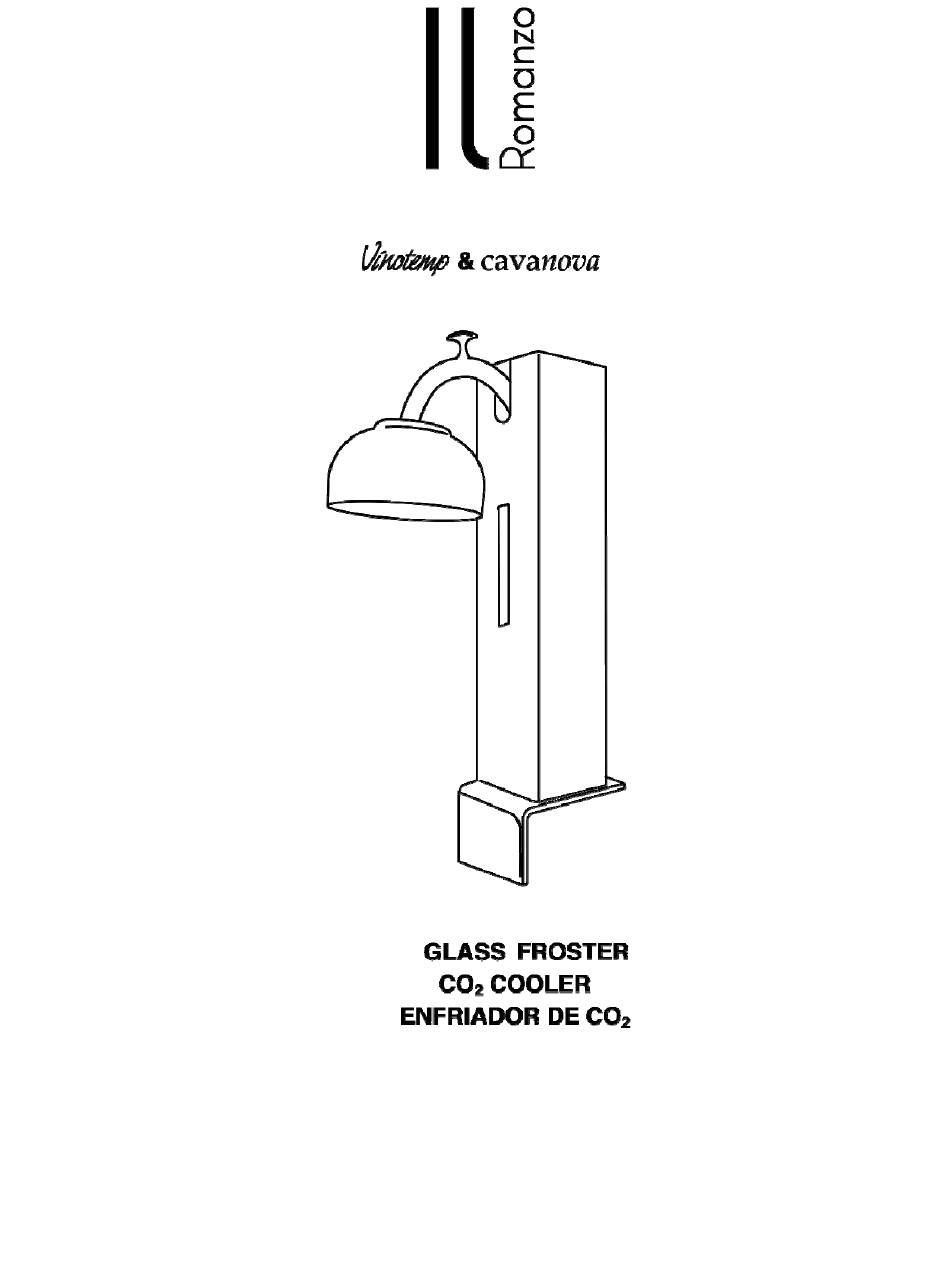

- Page 1 by ...
- Page 2 PARTS 4 You will need: 1. CO2 Froster (included) 2. Table attachments: screw and nut (included) 3. Teflon washer (included) 4. CO2 fitting (included) 5. CO2 cylinder/tank (not included) 6. 2 AA batteries for the LED light (not included, not shown) 7. Philips head screw driver (not included, not shown) 8. 1 ½” adjustable wrench (not included, not shown) Please make sure you have all of these items before installing your new CO2 Froster. ...
-
Page 3: Installation
WARNING: This product works with liquid CO2 only. Never connect any other compressed gas cylinders with high pressure. A liquid CO2 cylinder with siphon tube is preferred to deliver liquid CO2. If a standard gas CO2 cylinder is used, the cylinder must be placed upside down to deliver liquid CO2. Install this product in a well ventilated area; otherwise a high level of CO2 may accumulate. Installation Remove the black cover to access the batteries. Powering the LED Light Strip The LED light strip requires 2 AA batteries. To add the batteries, simply remove the black cover located at the top of the unit. ... - Page 4 Connecting the Unit to the CO2 Cylinder • A black tube is included which funnels the CO2 liquid between the glass froster and the CO2 tank. At the end of each tube are stainless steel loops which must be affixed to both the unit and the tank. • Place the loop around the connector of the cylinder as shown, prior to connecting the black tube to the tank. ...
- Page 5 • The other end of the black tube should now be looped around the glass froster as shown. • Insert the white Teflon washer provided to the end of the CO2 fitting. • Connect the Glass Froster to the CO2 cylinder using the fitting supplied. Using a wrench, turn the nut clockwise until it is tight. ...
- Page 6 • Next, open the gas flow using the knob located at the top of the CO2 cylinder. Please make sure that the CO2 cylinder sits vertically at all times. NOTE: Stand to the side of the cylinder when opening the cylinder valve. Open the cylinder valve slowly. Mounting the IL‐CO2FROST You must attach your new Glass Froster to a level and sturdy surface such as a table or counter top. • Position the Glass Froster near the edge of the surface. • Attach the nut provided to the screw. This will protect your surface and add stability. • Adjust the screw located on the underside until it is fastened to the table or counter top. ...
- Page 7 Using the IL‐CO2FROST • Now that your CO2 cylinder has been installed, press the switch located on the upper part of the unit until you see the LED light strip illuminate and CO2 being released. • The unit is now ready for use. Place a cup under the spout to frost. This should only take 2 seconds. Promptly remove the cup from the unit. You may repeat this process as many times as you would like. We recommend about 3 times per cup. After use, it is recommended that you close the CO2 cylinder and release any remaining gas by pressing the switch until all CO2 has been released. ...
- Page 8 Changing the CO2 Cylinder When the frosting time exceeds 10 seconds, this is an indication that it is time to change the cylinder. Please follow these instructions carefully: 1. Close the shut‐off valve of the cylinder. 2. Press the switch of the Glass Froster until all pressure is released. 3. Loosen the fitting connecting the unit to the cylinder. 4. Finally, connect the unit to the new CO2 cylinder following the instructions outlined on the previous page. Safety Precautions for the CO2 Cylinder • Gas cylinder contents are under high pressure. Don't destroy or remove identification tags or labels. • Check to see cylinder valves are protected with protective caps. • Leave caps on until the gas is about to be used. • Do not roll or drop cylinders, or let them bump violently against each other. • Secure large cylinders (125 cu. ft) with a chain or strap positioned around the upper •...
-
Page 9: Terms And Conditions
Contact our customer service at 1‐800‐777‐8466 or info@vinotemp.com TERMS AND CONDITIONS Vinotemp International Corp. (“Seller”) and the person or entity that acquires these goods from Seller (“Purchaser”) hereby fully agrees to the following terms and conditions of the sale: Shipping fees are the responsibility of the Purchaser whether freight prepaid or freight collect. - Page 10 The above terms and conditions are the only ones governing this transaction and Seller makes no oral representations of any kind. These Terms and Conditions can only be modified in writing, signed by both Purchaser and Seller. To register your product, visit: http://www.vinotemp.com/Warranty.aspx Register your warranty within 10 days of receiving the unit. ...
- Page 11 VISIT US ONLINE: WWW.CAVANOVA.COM WWW.VINOTEMP.COM California Proposition 65 Warning: This product contains a chemical known to the State of California to cause cancer or birth defects or other reproductive harm. ...
-
Page 12: Service & Important Notice
Henderson, NV 89015 www.vinotemp.com Vinotemp is a registered trademark of Vinotemp International. All products, features, and services are subject to change without notice. We cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.
