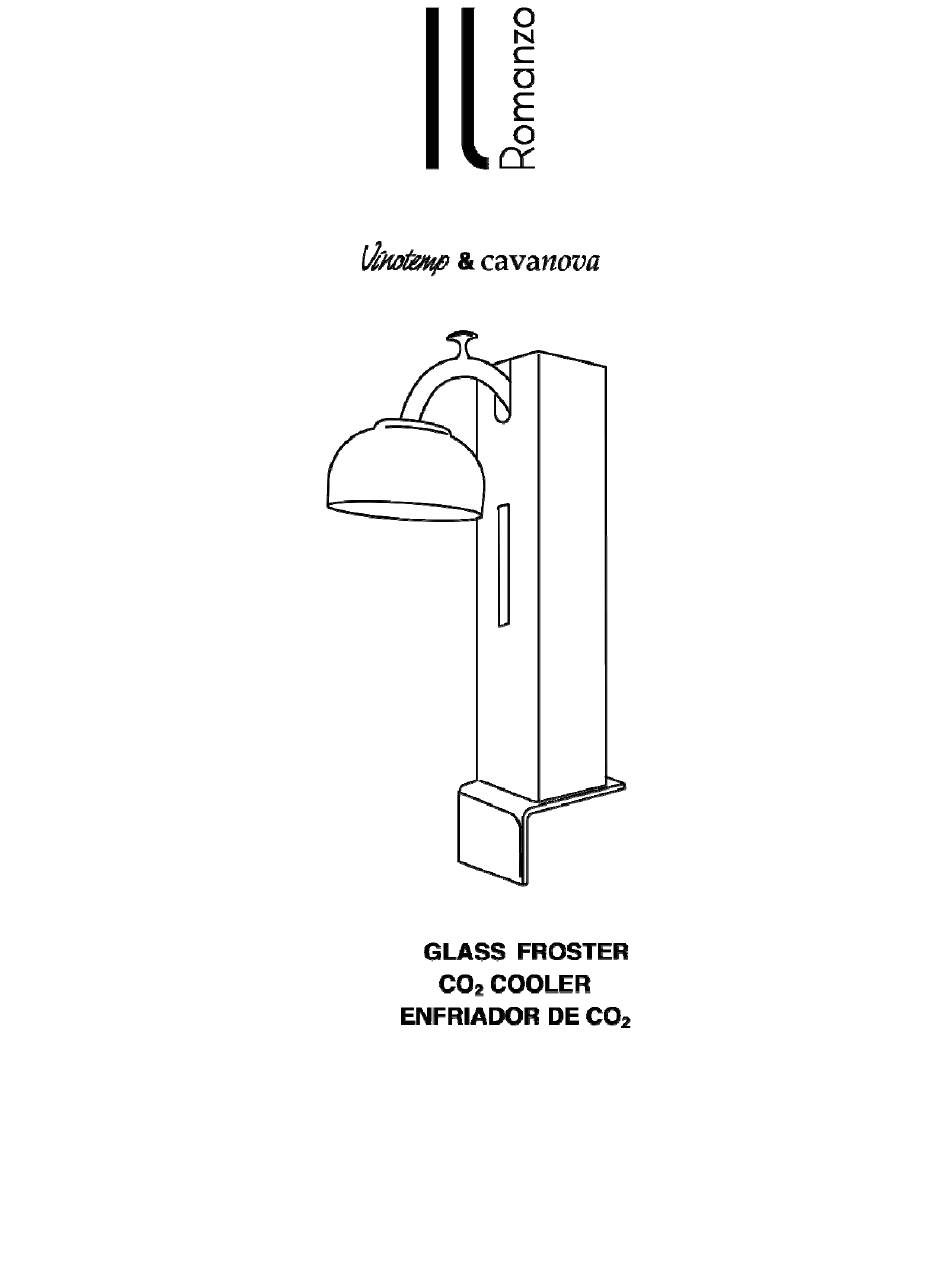

- Page 1 by ...
- Page 2 PARTS 4 You will need: 1. CO2 Froster (included) 2. Table attachments: screw and nut (included) 3. Teflon washer (included) 4. CO2 fitting (included) 5. CO2 cylinder/tank (not included) 6. 3 AA batteries for the LED light (not included, not shown) 7. Philips head screw driver (not included, not shown) 8. 1 ½” adjustable wrench (not included, not shown) Please make sure you have all of these items before installing your new CO2 Froster. ...
-
Page 3: Installation
WARNING: This product works with liquid CO2 only. Never connect any other compressed gas cylinders with high pressure. A liquid CO2 cylinder with siphon tube is preferred to deliver liquid CO2. If a standard CO2 cylinder is used, the cylinder must be placed upside down to deliver liquid CO2. Install this product in a well ventilated area; otherwise a high level of CO2 may accumulate. Installation Mounting the IL‐CO2FROST You must attach your new Glass Froster to a level and sturdy surface such as a table or counter top. • Position the Glass Froster near the edge of the surface. • Attach the nut provided to the screw. This will protect your surface and add stability. • Adjust the screw located on the underside until it is fastened to the table or counter top. ... - Page 4 Remove the black cover to access the batteries. Powering the LED Light Strip The LED light strip requires 3 AA batteries. To add the batteries, simply remove the black cover located at the top of the unit. Connecting the Unit to the CO2 Cylinder • Insert the white Teflon washer provided to the end of the CO2 fitting. ...
- Page 5 • Connect the Glass Froster to the CO2 cylinder using the fitting supplied. Using a wrench, turn the nut clockwise until it is tight. • Next, open the gas flow using the knob located at the top of the CO2 cylinder. Please make sure that the CO2 cylinder sits vertically at all times. NOTE: Stand to the side of the cylinder when opening the cylinder valve. Open the cylinder valve slowly. Using the IL‐CO2FROST • Now that your CO2 cylinder has been installed, press the switch located on the upper part of the unit until you see the LED light strip illuminate and CO2 being released. ...
- Page 6 • The unit is now ready for use. Place a cup under the spout to frost. This should only take 2 seconds. Promptly remove the cup from the unit. You may repeat this process as many times as you would like. We recommend about 3 times per cup. After use, it is recommended that you close the CO2 cylinder and release any remaining gas by pressing the switch until all CO2 has been released. Enjoy! ...
- Page 7 Changing the CO2 Cylinder When the frosting time exceeds 10 seconds, this is an indication that it is time to change the cylinder. Please follow these instructions carefully: 1. Close the shut‐off valve of the cylinder. 2. Press the switch of the Glass Froster until all pressure is released. 3. Loosen the fitting connecting the unit to the cylinder. 4. Finally, connect the unit to the new CO2 cylinder following the instructions outlined on the previous page. Safety Precautions for the CO2 Cylinder • Gas cylinder contents are under high pressure. Don't destroy or remove identification tags or labels. • Check to see cylinder valves are protected with protective caps. • Leave caps on until the gas is about to be used. • Do not roll or drop cylinders, or let them bump violently against each other. • Secure large cylinders (125 cu. ft) with a chain or strap positioned around the upper •...
- Page 8 Precautions 1. Keep the cylinder away from all heat sources. 2. Do not tamper with the gas flow. 3. Prolonged direct exposure may cause scalding of the skin. 4. Use the Glass Chiller in a well ventilated location only. 5. Keep these instructions for future reference. Contact our customer service at 1‐800‐777‐8466 or info@vinotemp.com ...
-
Page 9: Terms And Conditions
TERMS AND CONDITIONS Vinotemp International (“Seller”) and the person or entity that acquires these goods from Seller (“Purchaser”) hereby fully agree to the following terms and conditions of the sale: Shipping fees are the responsibility of the Purchaser whether freight prepaid or freight collect. Seller assumes no responsibility for the goods sold to the Purchaser once the goods have left the Seller’s premises, including, but not limited to, late delivery by the moving carrier, or for events caused by any difficulty carrier incurs in attempting to fit the goods into the Purchaser’s place of business or residence due to the size of the goods or otherwise. Purchaser assumes all responsibility for delivery, payment of freight, access, measurement, installation, hook‐up, wiring, moving and storage of the goods. The transportation of all goods is subject to the terms and conditions which the moving carrier imposes on Purchaser including, but not limited to, additional charges imposed per flight of stairs, and/or additional charges resulting from the carrier’s inability to safely and/or adequately use the building elevator to lift the goods to an upper floor. Any claim for damages incurred during shipment by the carrier of the goods are insured and handled directly with the carrier and must be noted at time of delivery. Any damages due to manufacture defects will be handled directly with Vinotemp International, subject to the limited warranty. All sales are final, and unless authorized in writing by the Seller, Purchaser may not return the goods, under any circumstance. If Purchaser refuses to accept the goods, under any circumstance, the Purchaser is liable for the return and cost of freight both ways, and if Seller does take back the goods, there will be a restocking/service fee that is 35% of the purchase price of the goods. (Product must be in original packaging). Built‐to‐Order products (including Cabinets, Racking, and Accessories) are non‐returnable. Purchaser must notify Seller of non‐conforming goods within four days of delivery, after which time all goods are deemed accepted. If an order has been placed and production has started, cancellation of your order will be a 15% charge. If Purchaser tenders payment with a check that has insufficient funds (NSF), or stops payment on a check or credit card for any reason, Purchaser agrees to pay for all costs associated with the Seller’s collection or litigation of such a claim, including without limitation extra damages, court costs and attorneys’ fees. Finance charges begin the date of invoice. Collection fees plus NSF fee of $50 will be added to your invoice, which you agree to promptly pay. Title to the goods does not pass until payment is received in full by Seller and Seller retains a security interest in the goods until they are paid for in full. Statute of limitations must be handled in arbitration in the County of Los Angeles. LIMITED WARRANTY: Seller warrants that the goods will be free of defects in materials and workmanship as follows: Furniture style (wood) wine cabinets made in the U.S.: all cooling unit parts for a period of 5 (five) years; cabinetry and labor (uninstalled) for a period of 12 (twelve) months from date of sale. For the metal cabinet wine units: parts and labor for cooling system and cabinetry for a period of 12 (twelve) months from date of sale. For Designer Series units: parts and labor for a period of 12 (twelve) months from date of sale, compressor part 5 years. For Il Romanzo Glass Froster: parts and labor for 12 months from the date of sale. Thermoelectric Units: 90 (ninety) days from the date of sale (including Wine Coolers, Beer Dispensers, Humidor, Portofino Wood Cellars, and Refrigerators). Wine‐ Mate Split Systems and installed products are parts only for 1 year, no labor. Other Wine‐Mate Cooling Systems are 5 years parts, 1 year labor. Wine Accessories and Racking Systems are not warranted. There is no warranty on parts purchased separately. Removal and re‐installation of unit is not included in warranted labor. Purchaser’s exclusive remedy is limited, at Seller’s option; to repair or replace defective part[s] with either new or factory reconditioned part[s]. Purchaser is responsible for shipping the unit pre‐paid to designated facility and Seller will pay return shipping charges in the continental United States for items repaired under warranty within 12 (twelve) months from date of sale. Since the natural variation in texture, density, grain, color, tone and shade of wood is unavoidable; Seller does not guarantee the texture, color, tone or shade of the wood: nor does seller guarantee the colorfastness of wood or against peeling, chipping, cracking or scratching. Note: Unfinished wood is subject to warping; all wood surfaces must be sealed before placing cellar into service. Improper placement of the unit will void the warranty. By Vinotemp in writing, any third party repair facility must be pre‐approved before providing parts free of charge. This limited warranty does not cover damage due to such things as accident, misuse, abuse, mishandling, neglect, acts of God, fires, earthquakes, floods, high winds, government, war, riot or labor trouble, strikes, lockouts, delay of carrier, unauthorized repair, or any other cause beyond the control of the Seller, whether similar or dissimilar to the foregoing. Seller is not responsible for any damages caused to Purchaser's property resulting from the good. This limited warranty applies only inside the Continental US (Alaska, Puerto Rico and Hawaii are not warranted.). For Non‐New Units (Scratch & Dent/Refurbished/Floor Models), warranty for compressor units is 90 days from your dated invoice and 30 days for thermoelectric units (parts for function only, not cosmetic defects). These units are refurbished and sold as is; Purchaser assumes risks to the quality and performance of goods and ... - Page 10 Please be sure to retain your proof of purchase. • Fast frosting of dry glasses and cups • Improves the taste of your drink or cocktail • Compact design requires minimum counter space • Energy‐efficient • Quiet operation PLEASE READ ALL INSTRUCTIONS PRIOR TO USE. VISIT US ONLINE: WWW.CAVANOVA.COM WWW.VINOTEMP.COM ...
