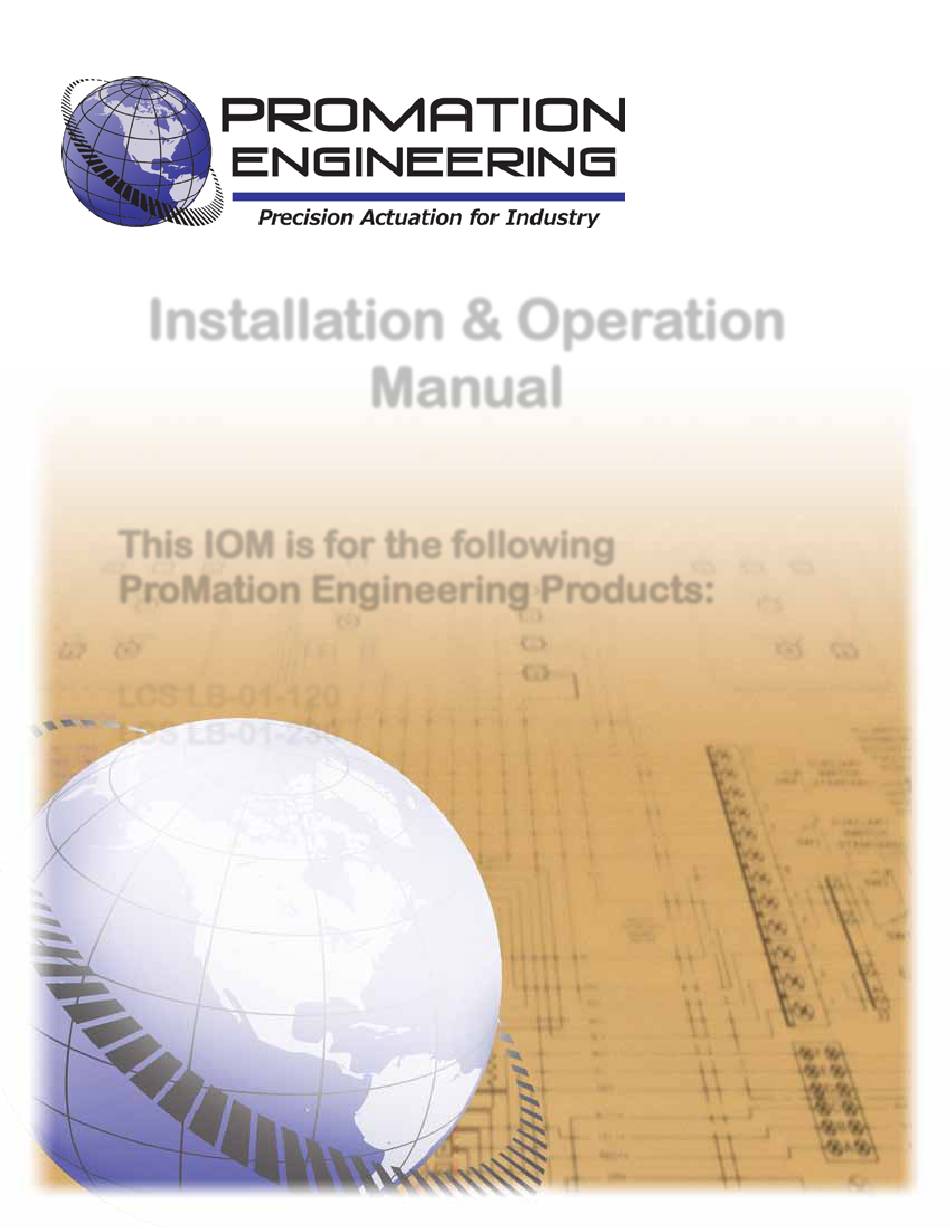

- Page 1 Installation & Operation Manual This IOM is for the following ProMation Engineering Products: LCS LB-01-120 LCS LB-01-230...
- Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
Field Manual LCS LB-P1-HV Local Control Station On/Off/Jog Control Contents 2 . . . . . . . . . . . . . . . . . . . Product Specifications: 3 . -
Page 4: Product Specifications
Product Specifications: Local Control Station: LB-01-HV Actuator dependent Torque “lb/Nm For Actuator Series P1, P1.A Supply Voltage 120vac, 230vac Max Inrush Current Running Current Runtime (90 @60/50Hz) Actuator dependent Weight 7lbs/3kg (case and components) Mechanical Connections Actuator Dependent Electrical Entry to box Field punched/drilled into enclosure for mounting Electrical Terminations Altech terminal blocks that accept 12-16ga wire. -
Page 5: Product Handling And Installation
Product Handling and Installation 1. Storage: This unit should NOT be stored outside unless it is powered up and has proper conduit terminations. When NOT powered up, it should be stored in a clean, dry environment at all times. 2. Note: this enclosure must have water tight EMT fittings, with conduit drainage installed to keep it dry at the time of installation. -
Page 6: Component Identification
Component Identification Controls - Front Panel CLOSED (RED) indicator OPEN (GRN) indicator Uses aux contacts from the actuator. Uses aux contacts from the actuator. When the MODE switch is set for LOCAL When the MODE switch is set for LOCAL or REMOTE and the actuator is fully or REMOTE and the actuator is fully CLOSED, this indicator will illuminate. -
Page 7: Component Identification
Component Identification Product Controls LCS Model Product P1,PA,PL P2-13 P1,PA,PL P2-13 P1,PA,PL P2-13 For On/Off/Jog Actuators Only For Proportional Actuators Only Local/Off/Remote Mode Switch Close-Stop-Open Switch Close-Open Switch (2 Pos) Close / Open Indicator Lights End of Travel (EOT) Outputs to Controller Mode Switch Position Signal to Controller Illuminated Power Indicator Full Proportional Control via Potentiometer...
