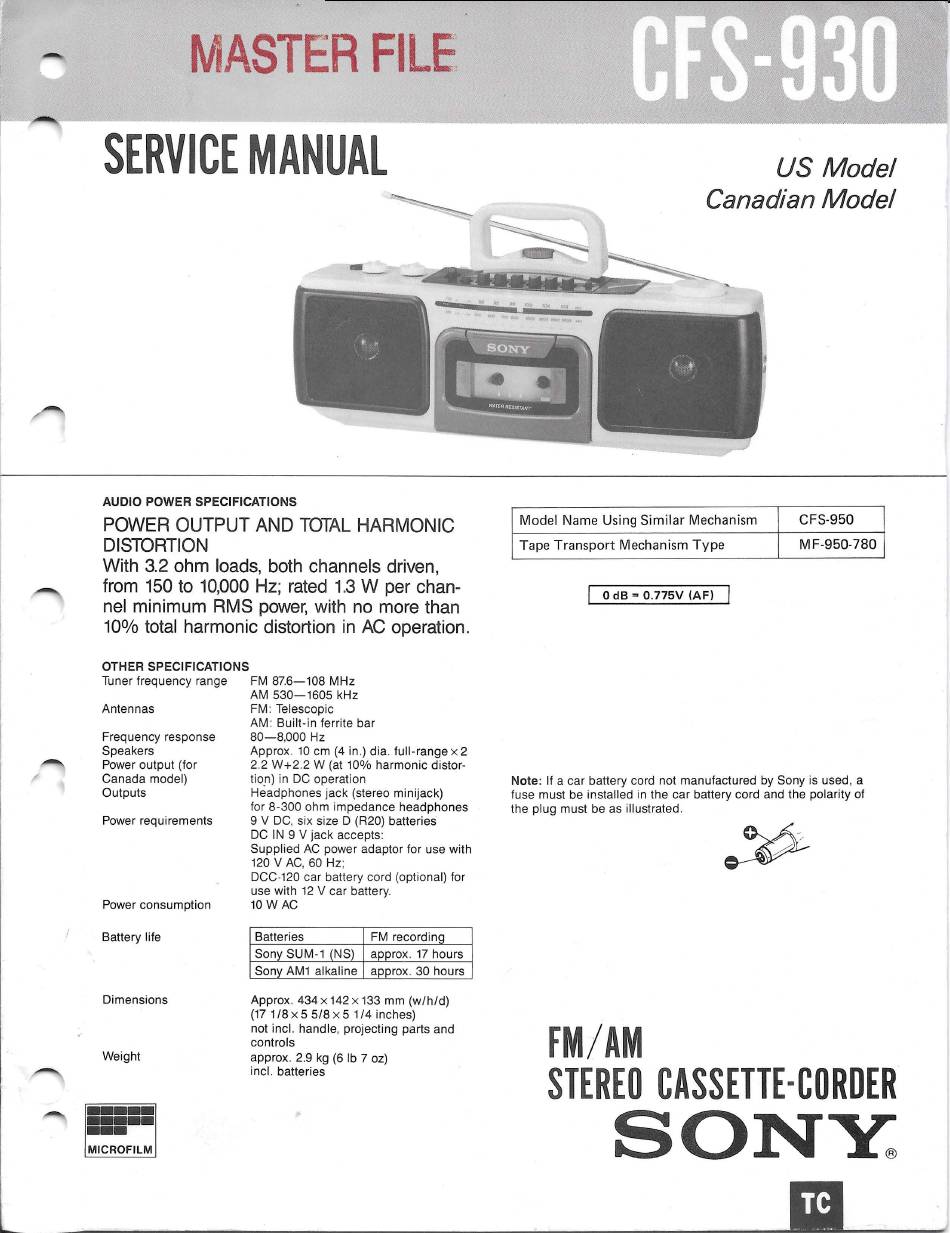

Sony CFS-930 Service Manual

I
I
fv1ASTER FILE.
SERVICE MANUAL
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION
With 3.2 ohm loads, both channels driven,
from 150 to 10,000 Hz; rated 1.3 W per chan-
nel minimum RMS power, with no more than
10% total harmonic distortion in AC operation .
OTHER SPECIFICATIONS
Tuner frequency range FM 87.6-108 MHz
Antennas
Frequency response
Speakers
Power output (for
Canada model)
Outputs
Power requirements
Power consumption
Battery life
Dimensions
Weight
AM 530-1605 kHz
FM : Telescopic
AM : Built-in ferrite bar
80-8,000 Hz
Approx . 10 cm (4 in .) dia. full -range x 2
2.2 W+2 .2 W (at 10% harmonic distor-
tion) in DC operation
Headphones jack (stereo minijack)
for 8-300 ohm impedance headphones
9 V DC, six size D (R20) batteries
DC IN 9 V jack accepts :
Supplied AC power adaptor for use with
120 V AC, 60 Hz;
DCC-120 car battery cord (optional) for
use with 12 V car battery.
10WAC
Batteries
FM recordinQ
Sony SUM -1 (NS) approx . 17 hours
Sony AM1 alkaline
approx . 30 hours
Approx . 434 x 142 x 133 mm (w/h/d)
(17 1 /8 x 5 5/8 x 5 1 /4 inches)
not incl . handle, projecting parts and
controls
approx . 2.9 kg (6 lb 7 oz)
incl. batteries
US Model
Canadian Model
Model Name Using Sim ilar Mechanism
CFS-950
Tape Transport Mechanism Type
MF-950-780
0 dB~ 0.775V (AF)
Note : If a car battery cord not manufactured by Sony is used , a
fuse must be installed in the car battery cord and the polarity of
the plug must be as illustrated .
FM/ AM
STEREO CASSETTE-CORDER
SONY:
