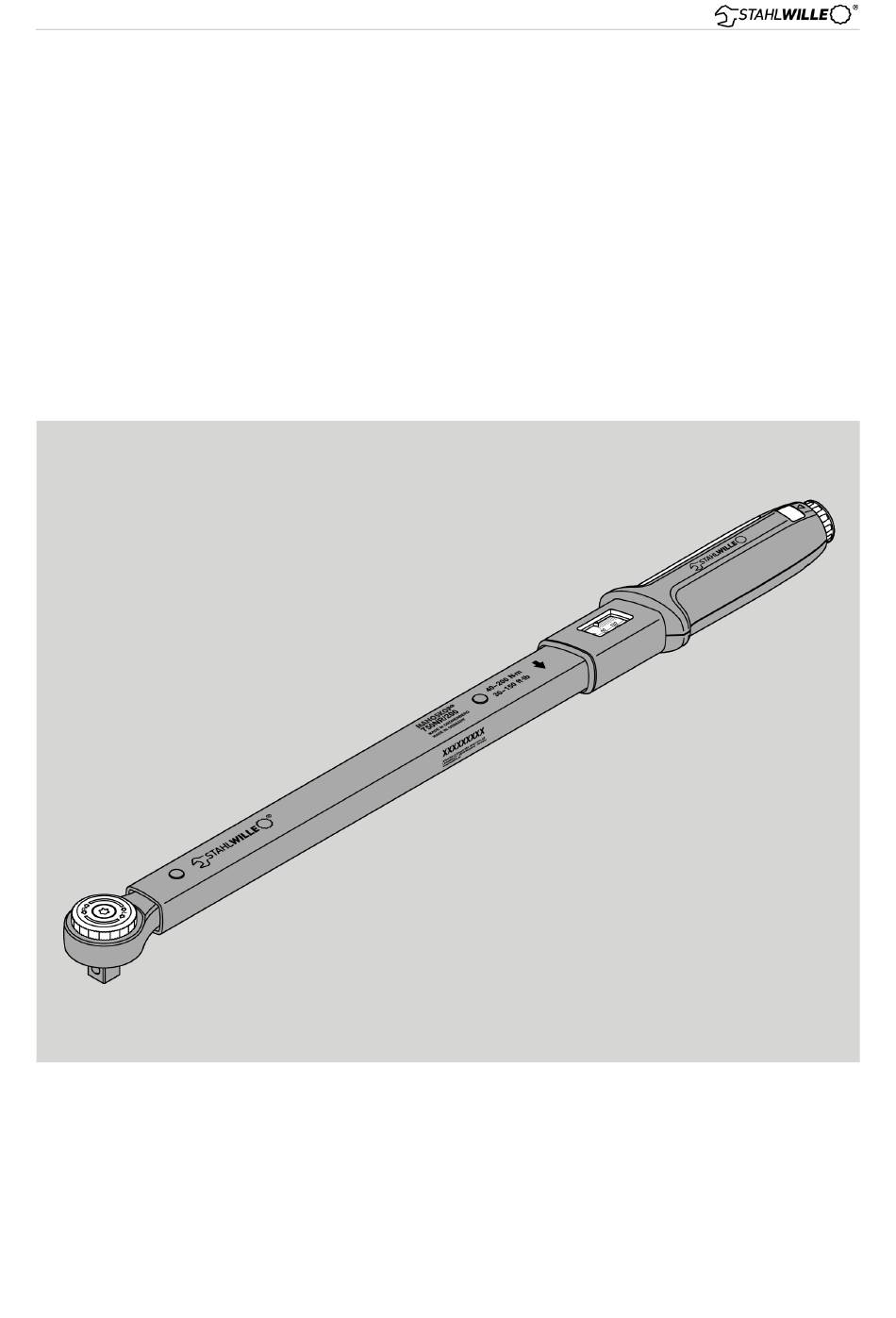

- Page 1 English version of the original German operating instructions MANOSKOP 750NR ® Last updated: 01/2025...
-
Page 2: Table Of Contents
Contents Technical description ............................ 3 750NR ............................3 ® MANOSKOP Technical Data ..............................4 Safety instructions ............................4 Intended Purpose ............................... 4 Personal protective equipment ........................... 5 Structural features of the information on dangers ....................5 Structural features of notices regarding material and environmental damage ........... 5 Correct torque settings ... -
Page 3: Technical Description
Technical description Technical description MANOSKOP 750NR ... ® ... is equipped with a permanently installed fine- MANOSKOP 750NR is an adjustable, trigger ® tooth reversible ratchet with switchover disc. The torque wrench with audible and tactile trigger signal. switchover disc can be used to switch quickly and •... -
Page 4: Technical Data
Safety instructions Technical Data 750NR100 750NR200 750NR400 Measuring range [N‧m] 20–100 40–200 80–400 [ft‧lb] 15–75 30–150 60–300 [in‧lb] 180–900 360–1,800 720–3,600 Scale division of main scale [N‧m] [ft‧lb] Scale division of fine scale 0.25 Square drive size ["] Length [mm] 443.0 562.5 680.0... -
Page 5: Personal Protective Equipment
Operation Personal protective equipment interval (12 months) starts from the date the tool is first used. When using the MANOSKOP , there is a risk of ® crushing, bruises and broken bones. If the inspection reveals an unacceptable deviation, • Wear safety shoes with steel toecaps. you must have the torque wrench readjusted (see •... -
Page 6: Selecting Insert Tools
CAUTION There is a risk of injury due to faulty or incorrect wrench inserts. ➢ Only use the inserts from STAHLWILLE. ➢ Make sure that the permissible load capacity of the wrench inserts is greater than the capacity of the torque wrench. -
Page 7: Controlled Counter Clockwise Tightening
Operation Controlled counter clockwise tightening ➢ Set a value that is lower than the required setting value. For reasons of accuracy, the torque wrenches only An example using the MANOSKOP 750NR/200 ® have one operating direction. This is indicated by an model: For a required setting value of 123.5 N‧m, arrow on the tube and the word “CLICK”. -
Page 8: Using The Torque Wrench
Storage Using the torque wrench As soon as the torque wrench has cut out, it is ready for the next job. CAUTION Storage An incorrect trigger value leads to a risk of injury. After use, the torque wrench must be reset to the minimum value. -
Page 9: Checking The Accuracy Of The Cut-Out Value
If you have access to such a tester, you may inspect the MANOSKOP yourself. Suitable torque ® testers are available from STAHLWILLE. It is also possible for STAHLWILLE to test the MANOSKOP ® for you. ➢ Carry out five measurements with this setting on We will show you how to check using the the torque tester. -
Page 10: Adjusting For Deviations In Cut-Out Value
® • 7794–1 • 7794–2 Manutork calibration device ® • 7791 • 7792 STAHLWILLE Eduard Wille GmbH & Co. KG Lindenallee 27 – 42349 Wuppertal Germany Tel.: +49 202 4791-0 Fax: +49 202 4791-200 E-Mail: support@stahlwille.de Internet: www.stahlwille.de...
