Summary of Contents for Aegislink S-WF240

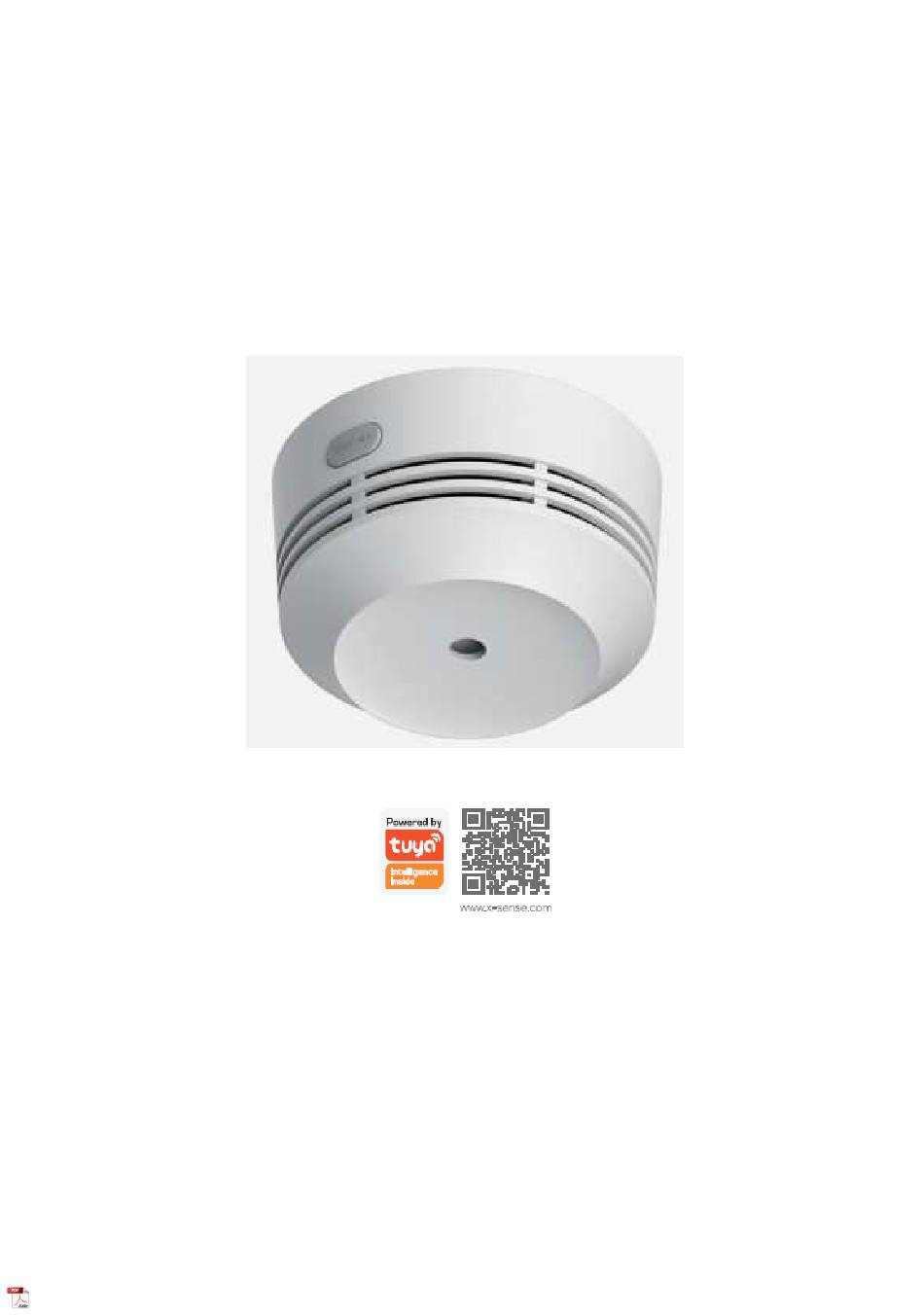

- Page 1 User Manual Wi-Fi Smoke Alarm S-WF240...
-
Page 2: Product Profile
Thank you for purchasing this Wi-Fi smoke alarm. This user manual contains important information on installing and operating this smoke alarm. Please read this user manual before installation or operation, and save it for future reference. Product Profile Buzzer Test/Silence Button LED Indicator AP Mode Button Package Contents... -
Page 3: Safety Information
Safety Information Dangers, warnings, and cautions alert you to important installation and operating instructions, or potential hazards. Please pay attention to the situations. IMPORTANT 1. This device is not designed for hearing-impaired people. Use of alcohol or drugs may impair one’s ability to hear the smoke alarm. 2. - Page 4 Set Up and Connect Smoke Alarms to Wi-Fi Before connecting smoke alarms, make sure that: Know your Wi-Fi network name and password. Make sure you are connecting smoke alarms to a 2.4 GHz Wi-Fi network (incompatible with 5 GHz Wi-Fi network). NOTES: 1.
- Page 5 Enter the Wi-Fi password. NOTE: If your home Wi-Fi router is a 2.4 and 5 GHz dual-band that works with a single SSID name, please refer to your Wi-Fi router manual to create separate SSIDs for the 2.4 and 5 GHz channels.
-
Page 6: App Settings
The alarm will beep once and the LED indicator will flash green slowly, indicating that the alarmhas entered the AP mode. Go to the Wi-Fi setup page in the phone, and then select the device’s hotspot with the default name “SmartLife-XXXX or “SL-XXXX”. After successfully connecting to the Wi-Fi, return to the app and start network configuration. -
Page 7: Alarm Test
Wi-Fi router or change Internet provider. Alternatively, you may wonder why the S-WF240 loses contact with the Wi-Fi router or cloud server and flashes green from time to time. Therefore, it is recommended to turn on the “Offline Notification” so that you will receive a push notification if your device cannot connect to the app. -
Page 8: Installation Positioning
Installation Positioning ① Study ② Bedroom ③ Garage ④ Living Room ⑤ Kitchen ⑥ Basement ⑦ Smoke Alarms ⑨ Carbon Monoxide Alarms ⑩ Fire Extinguishers NOTE:If a smoke alarm is installed in a kitchen, ensure it has an easily accessible silence button and install the alarm as far away from the stove and sink as possible to avoid false alarms. - Page 9 7. When the wall or ceiling is angled, the alarm needs to be installed within 3 feet (90 cm) of the highest wall or ceiling point (measured horizontally) in the room. 8. To maintain a secure and stable Wi-Fi connection, please be sure to install the alarm within the router’s coverage area and make sure that there are as few obstacles as possible between them.
-
Page 10: Installation Method
⑪ ANYWHERE IN THIS AREA ⑩ NOT IN THIS AREA ⑫ 4″ (10 cm) ⑬ 3 ft (90 cm) WARNING 1. THIS ALARM SHOULD BE INSTALLED BY A COMPETENT PERSON. 2. ALARMS SHOULD NOT BE USED AS A SUBSTITUTE FOR PROPER INSTALLATION, USE AND MAINTENANCE OF FUEL BURNING APPLIANCES INCLUDING APPROPRIATE VENTILATION AND EXHAUST SYSTEMS. -
Page 11: Silence Function
Silence Function If there is a false alarm, you can temporarily silence it by pressing the Silence button on the app or by pressing the Test/Silence button on the device. The LED indicator will flash red once every 5 seconds and you will receive an instant notification from the app, telling you that the device has been temporarily silenced. - Page 12 Wi-Fi The LED indicator flashes green 1 beep EZ Mode (Default Connecting times every second. mode) The LED indicator flashes green once 1 beep AP Mode (Alternative every second. mode) Test Mode The LED indicator flashes red 3 times 3 short quick beeps per second and then rapidly flashes (1 beep per second) green...
-
Page 13: Technical Specifications
Technical Specifications Power Supply Replaceable 3 V CR123A lithium battery Operating Life 10 years Battery Life 1 year Sensor Type Photoelectric Safety Standards EN 14604:2005+AC:2008 Coverage Area 215–430 sq. ft (20–40 m²) Operating Temperature 40–100°F (4.4–37.8℃) ≤ 85% RH (non-condensing) Operating Relative Humidity ≥... -
Page 14: General Maintenance
Maintenance General Maintenance Follow the steps listed below for optimum long-term performance: Test the device once a week by pressing the Test/Silence button, ensuring the device functions properly. Note that this only tests the electronics in your alarm rather than smoke. Clean the alarm every three months. -
Page 15: Troubleshooting
Troubleshooting Description Problem Solution Check the battery. The device does not Dead batteries or Firmly press the Test/Silence button. alarm during a test. improper operation False alarms are triggered Improper when cooking or taking a installation Avoid placing alarms near cooking shower. -
Page 16: Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with local authorities or retailers for recycling advice. Manufacturer and Service Information Smartie International LLC Address: 160 Greentree Dr, Dover, DE 19904, USA Email: support@aegislink.co.uk...
