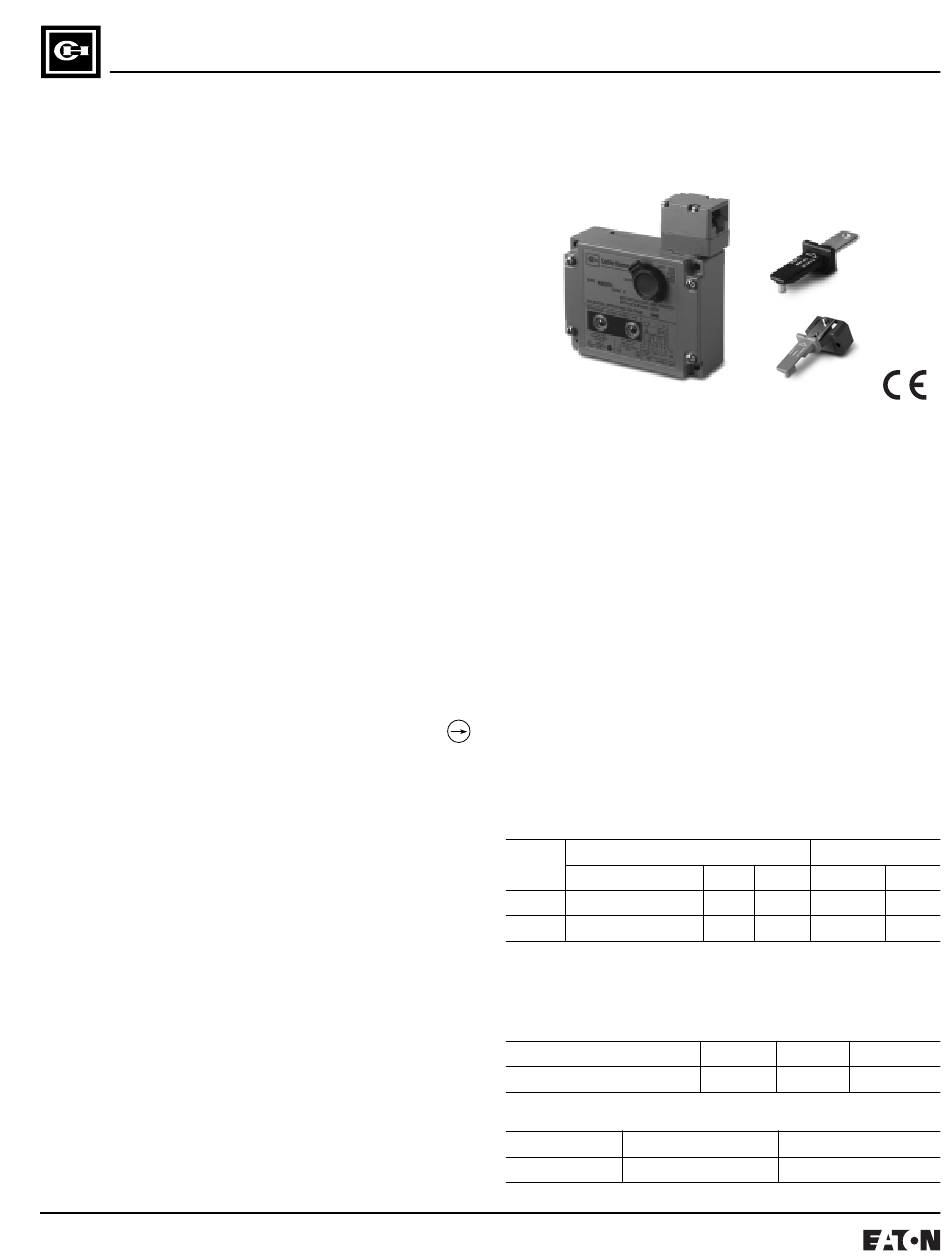

E48 Safety Key Interlock Switches—Solenoid Version
DESCRIPTION
The E48 Safety key interlock switch is designed for use with
moveable guards, covers or doors which must be closed for
operational safety. The switch is mounted to a rigid portion of
the machine. The operation key (typically affixed to a moveable
guard, cover or door) directly pulls NC contacts apart which
interrupts the control circuit and stops machine operation.
When the guard, cover or door is opened, the key is removed
from the switch, thereby directly opening the NC contacts. The
head mechanism is designed to be difficult to defeat with
common tools.
FEATURES
•
Automatically locks when Operation Key is inserted. Lock
mechanism can be released only when voltage is applied to
lock mechanism solenoid. Dedicated release lock unlocks
door in case of power failure.
•
Two conduit entrances provided (1/2-14NPT).
•
Die-cast aluminum enclosure.
•
Models incorporating LED indicators are available.
•
Pin connector Models are available for easy and quick
connections
SPECIFICATIONS
• UL Listed ........................................................... File E131568
• CSA Certified ...................................................... File LR68551
• European Compliance ........................................ EN60947-5-1
- Direct-opening action NC contacts per EN60947-5-1
- VDE 0660 part 200, part 206
• TUV Rheinland ......................................................... Approved
• Contacts ...................................... 1NO/1NC DPDB; 2NC DPDB
• Mechanical Life ................................. 1 million operations min
• Electrical Life ..................................... 500,000 operations min
• Operating temperature range
............................ -10° to 55° C (14° to 131° F) with no icing
• Ambient humidity ......................... 95% max, non-condensing
• Operating speed .............................................. 0.05 to 0.5 m/s
• Operating frequency ........................... 30 operations/min max
OPERATING CHARACTERISTICS
• Operating Force (extraction) .................. 19.6 N (4.41 lbf) min
• Release Force (insertion) ....................... 19.6 N (4.41 lbf) min
• Total Travel ......................................... 23 mm (0.91 inch) min
• Pretravel (PT) .....................................15 mm (0.59 inch) max
• Direct opening force .......................... 19.6 N min. (4.41 lbf)**
• Direct opening travel ...................... 20 mm (0.79 inch) min**
• Movement to mechanism lock ................................. 4mm min
**
minimum requirements for safe operation
(10A, 250VAC resistive load)
IEC RATINGS
• IEC 947-5-1
• Utilization category ................................... AC15 3A / 250 VAC
• Rated impulse withstand voltage (Uimp) .......................... 4Kv
• Pollution degree .................................................................... 3
• Mounting dimensions comply with EN50041
• Enclosure type rating ....................................................... IP67
• Rated insulation voltage (Ui) ..................................... 300 VAC
LED Version .............................................................. 115 VAC
• Thermal current rating (Ithe) ............................................ 10A
• Short-circuit protective device ...................10 A fuse (type gI)
• Prospective conditional short-circuit current .................. 100A
• Shock resistance .................................. 30G min (IEC68-2-27)
• Vibration ....... 0.35mm single amplitude; 10 to 55Hz, 5G max
11 minutes in axial directions, 3 repetitions
• Insulation Class ............................. Insulation class I (IEC536)
NEMA CONTACT RATINGS
• Non-LED Indicating Units ............................................... A300
• LED Indicating Units ..................................................... A150
Rated Current
Voltage Thermal Continuous Make
120 VAC 10 A
240 VAC 10 A
NEMA ENCLOSURE RATINGS
• Enclosure types 6P and 13.
SOLENOID ELECTRICAL SPECIFICATIONS
Solenoid Operating Voltage
Approx. Current Consumption
LED INDICATOR CHARACTERISTICS
Rated Voltage Current Consumption
10-115 VAC/VDC Approx. 1 mA
25007 Rev 02
6A / 115 VAC
2.5Kv (between solenoid to ground)
Class F 130° C (266° F) or less
Maximum V-A
Break Make
60 A 6.0 A 7200 VA
30 A 3.0 A 7200 VA
24 VDC 110 VAC 230 VAC
300 mA 98 mA 45 mA
Indicator Color
Orange and Green LEDs
Break
720 VA
720 VA
