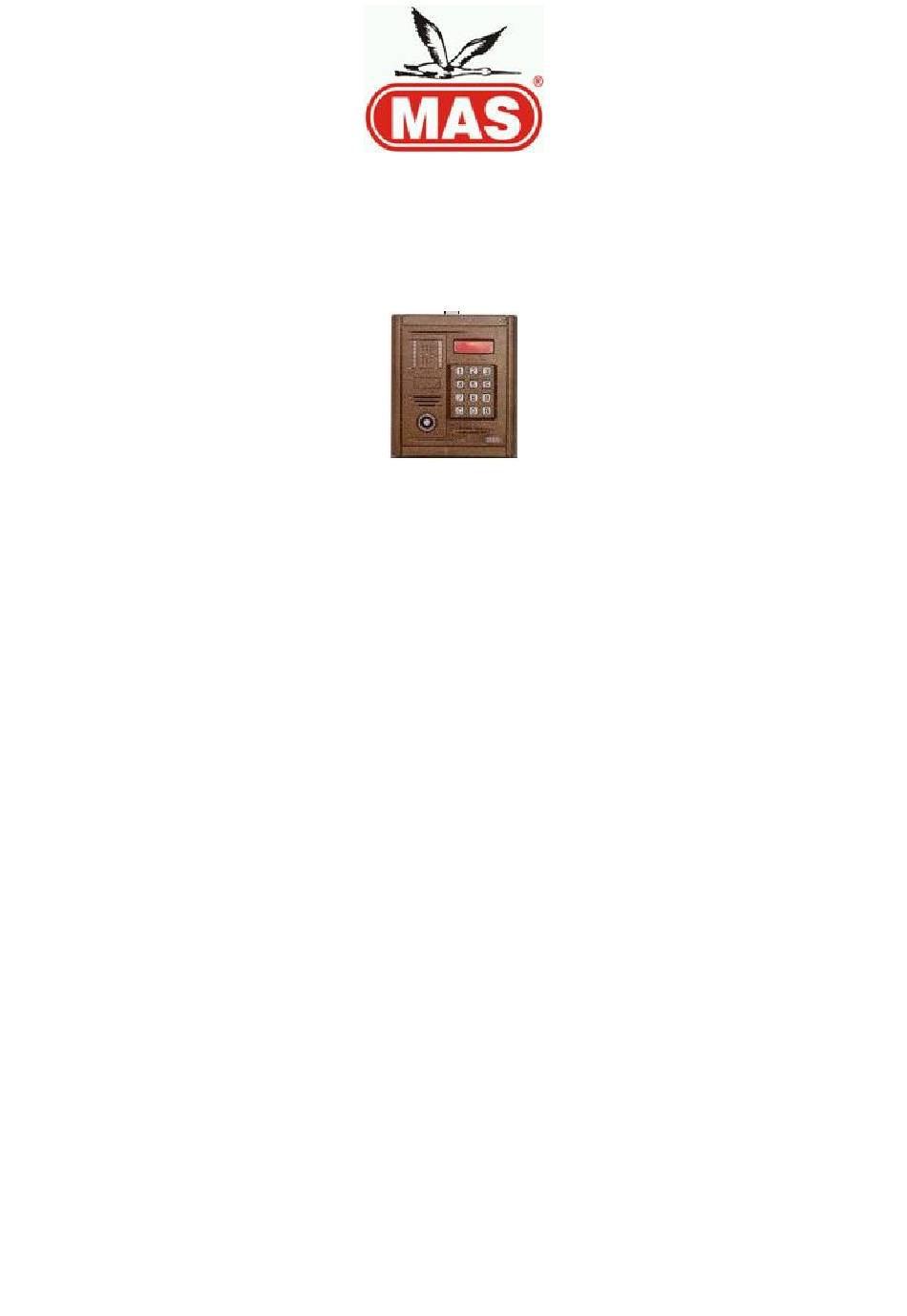

GALAXY EFES ANTIVANDAL DIGITAL PANEL
GP01HA.
USER'S MANUAL
1 BASIC PROPERTIES
•Call apt. units
•Full duplex (2-way) audio communication with apt. units
•Ability to control (built-in relay) the door strike (if installed) from the apt. units
and by Key fob, IButton,
user or apt specific or general PIN.
•Door lock relay can be controlled to set the door open / door strike trigger time.
2 FEATURES
•Entry audio feedback at the panel keypad
•On-screen display of entered number
•Audio warning signal at the entry panel when apt. PIN, I-Button or Key fob is
used to open the door.
(incl. on/off option).
•Audio warning signal at the entry panel when an apt. is called by the entry
panel.
•Ability to assign I-Buttons and Key fobs by entering an apartment number
•Door open action audio feedback at the panel
•Activate/Deactivate calls to apt.
•4 digits user PIN
•Ability to have a changeable user PIN
•About 9 key fobs / 5 I-Button per apartment capacity.
•Ability to connect security guard telephone
•Ability to connect extra camera
•Antiblock feature allowing the system to be able to avoid busy signal after a
selectable time limit
•Ability to receive a call even if the apt unit is active or in antiblock mode (hand
set off the hook)
•EFES System settings update / upload to all indoor units
1
Advertisement
Related Manuals for MAS GALAXY EFES GP01HA
Summary of Contents for MAS GALAXY EFES GP01HA
- Page 1 GALAXY EFES ANTIVANDAL DIGITAL PANEL GP01HA. USER’S MANUAL 1 BASIC PROPERTIES •Call apt. units •Full duplex (2-way) audio communication with apt. units •Ability to control (built-in relay) the door strike (if installed) from the apt. units and by Key fob, IButton, user or apt specific or general PIN.
-
Page 2: Door Access
•Warning beep (every sec) indicating that the door is open •15 sec. inactivity timeout period in settings menus 3 FUNCTIONS 3.1 CALL an APT/FLAT In standby mode, enter the apartment number. Entry is shown on the LED screen. If there is a wrong entry, press (C) to delete and correct. - Page 3 of the desired function and press (B) within 15 sec to enter the submenu. # Function 1 User PIN settings 2 Door access PIN settings 3 Apt PIN settings 4 Activate/Deactivate calls to apt. 5 Assigning user I-Button /Assigning user Key Fob 6 Deleting the Key Fobs assigned to an apt.
- Page 4 Enter the 4 digit system PIN and press (B) again to enter the system settings menu. “Func_” will be displayed on screen. Enter the number of the desired function and press (B) again within 15 sec. to enter the submenu. # Function 1 System PIN settings 2 Door access PIN functionality settings...
- Page 5 In system settings menu, press (4). “BL.No_” and actual block number will be displayed on screen for a while. After this number disappears, enter the desired block number (between 0 and 15) and update this time in memory by pressing (B). 3.6.5 DEACTIVATE I-BUTTON ASSIGNED TO AN APT In system settings menu, press (5).
- Page 6 Highest number assignable to an apt. : 255 PIN digits : 4 User PIN capacity : 10000 I-Button capacity (Dallas-DS1990) : 1220 Key fob capacity : 9 pcs for each apt. Apt. unit call time : 20 sec. Talk time limit (Antiblock) : 90sec (max. 240sec) Door lock open time : 1-8 sec.
- Page 7 0x0013 0x0013 0x00 0 sec 0x0014 0x0014 EFES Connection Channel Choosing 0x00 “0” second channel, “1” first channel 0x0015 0x001F reserved 0xFF TABLE 1: SERIAL NUMBERS OF THE ASSIGNED I-BUTTONs Parameter Default Value Definition 0x0320 0x0321 Assigned I-Button Capacity 0x0000 for the start “0” 0x0322 0x0327 Master I-Button Serial No 0xFFFFFFFFFFFF 5 byte serial no ,1 byte apt.
