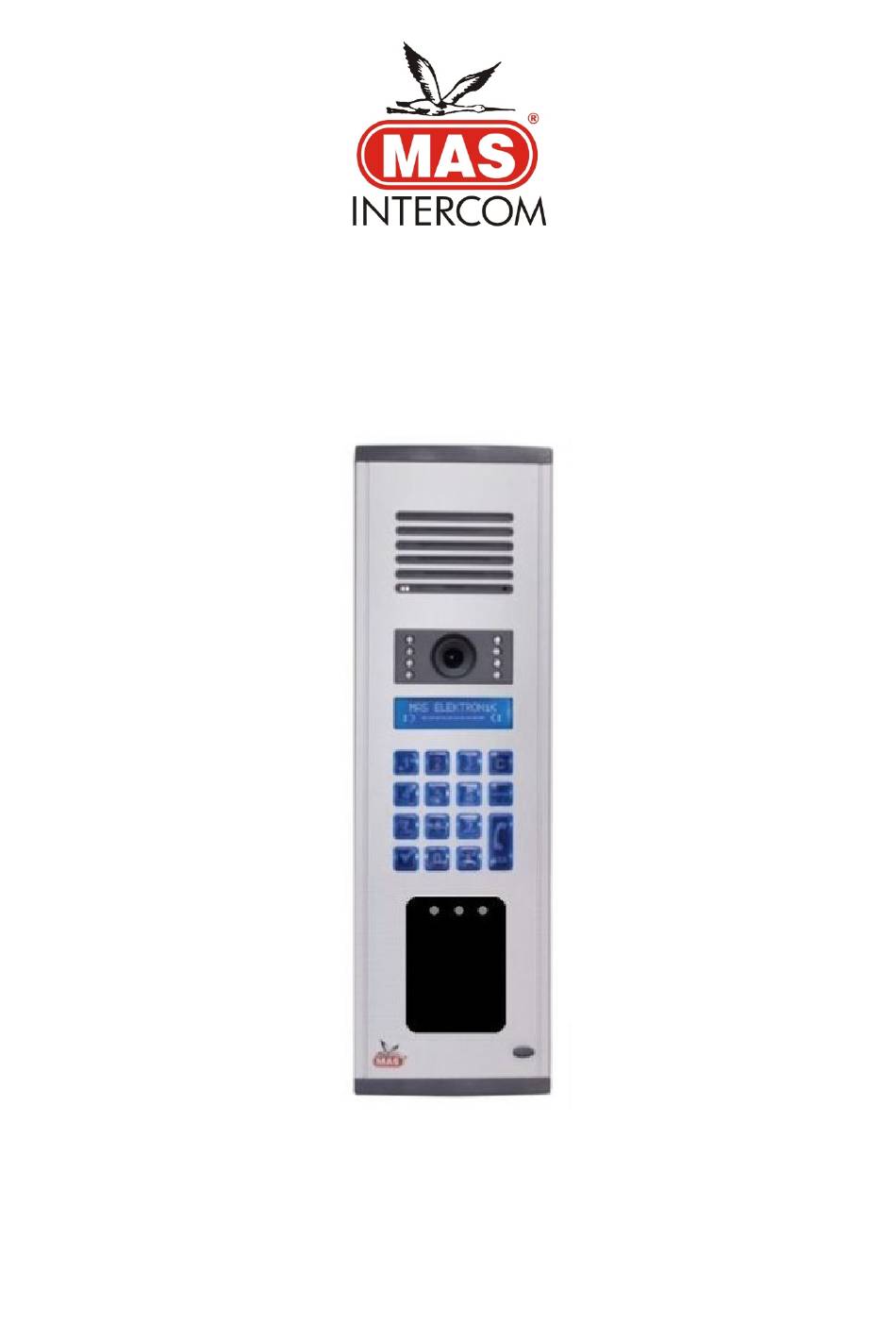

DIGITAL PANEL
DP02HMNKG
USER'S MANUAL
1. DEFINITION

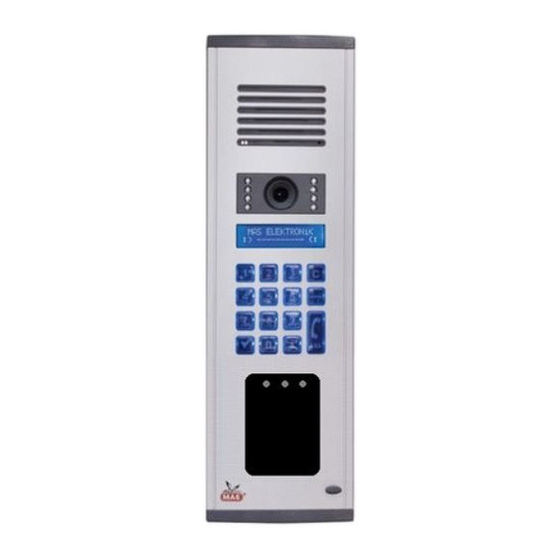

DP02HMNKG is a digital outdoor panel with a keypad and a card access pad.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DP02HMNKG and is the answer not in the manual?

Questions and answers

Related Manuals for MAS DP02HMNKG

Summary of Contents for MAS DP02HMNKG

  • Page 1 DIGITAL PANEL DP02HMNKG USER’S MANUAL 1. DEFINITION DP02HMNKG is a digital outdoor panel with a keypad and a card access pad.
  • Page 2 The Digital panel default setting is for 1 building and up to 255 apartments. The panel does not require presetting. It is activated and ready to use. However, it is strongly recommended that you change default settings after installing the panel. You can find how to change the settings on the instruction manual.
  • Page 3 . , - ? ! ' @ : 1 A B C 2 D E F 3 G H I 4 J K L 5 M N O 6 P Q R S 7 T U V 8 W X Y Z 9 NOTE: To leave space press “0”...
  • Page 4 name list menu, enter settings menu, press 3 then the CALL. Type apartment number, then press CALL to edit the apartment. Type resident “name-surname”, then press CALL to save the information. 2.5.4. CHANGING DOOR PIN Changing Door Pin menu is #4 on Settings Menu. This menu is to change the door opening pin.
  • Page 5 Optional Button menu is #11 on Settings Menu. This menu is to set to call guard’s station directly without entering apartment number. You can enter any apartment number to call directly, default Guard Station number is 255. NOTE: Pay attention NOT TO press the CALL without entering apartment number, Guard Apartment would be set as “0”.
  • Page 6 NOTE : In erase mode, if Administrator card is not placed close to the reader within 10 seconds, the system goes automatically out of erase mode. In such case, erase operation is not realized. 3. 3. Opening different doors with the same card To open different doors with the same card, the card(s) have to be registered to each and every reader unit connected to desired doors.
  • Page 7 4. Technical Specifications Communication Range 28 ± 4 in. (70 ± 10 cm) Operating Temperature -4F…130F (-20 ...+55 C) Standby mode Current 115 mA Operating Current 150 mA Operating Voltage 16…24 VDC Adjustable Camera Angle Degree 32 total in all directions Camera Resolution 350 TV lines Max.
