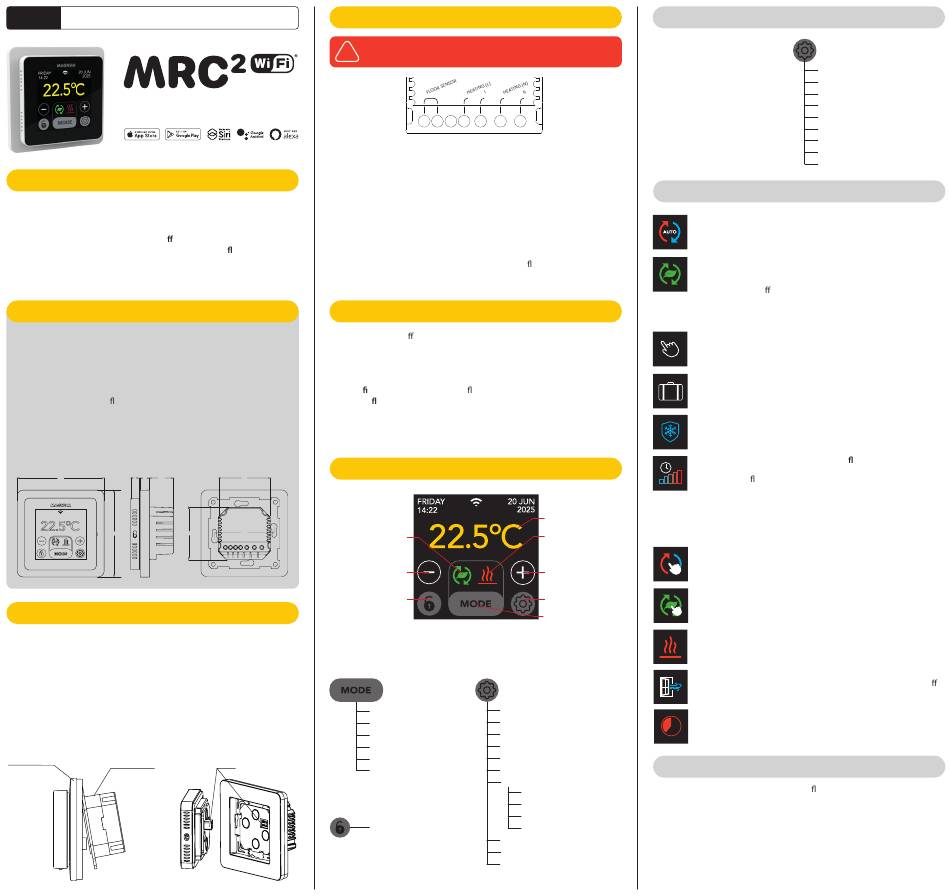

Magnum Heating MRC2 Manual

Other languages are available at: www.magnumheating.com/mrc
EN
© MAGNUM Heating Group B.V. | V25.1
Smart WiFi thermostat
for electric underfloor heating
1. Introduction
Study this manual carefully and keep it with the guarantee papers.
Connection should be carried out by a recognised installer in
accordance with local regulations. Before mounting or dismounting the
thermostat and display, always switch o the electricity in the meter
cupboard. This thermostat can be mounted in a single ush-mounting
box 50 mm deep, according to standard DIN formats.
2. Technical data
Voltage 230V - 50/60 Hz
Max. Load max. 16 Amp. / 230V
Temp. range +5/+40ºC
Cover IP21
Colour Polar white (RAL 9010) or Graphite black (RAL 9011)
Sensor incl. oor sensor and built-in air sensor
Warranty 2-year manufacturer's warranty
Approvals CE
Manufacturer MAGNUM Heating Group B.V. Netherlands
86 8 9 24
FRIDAY 20 JUN
14:22 2025
86 52
3. Assembly/Dismantling
86
51
WARNING: Always interrupt the power connection before
installation or dismantling.
Dismantling: holding the cover frame with one hand, pull the
connection unit out slightly with the other hand.
59
86 52
Installation: Align the pin connector, press gently. The display housing
is magnetically attached to the connection unit.
Middle frame
Power base
4. Connection instructions
!
This product must be protected with a 16A circuit
breaker in the meter cupboard!
FLOOR SENSOR * Floor sensor connection
HEATING L *
L
HEATING N *
N
EARTH: Connect the earth of the heating cable and the earth of
the power supply outside the thermostat using the terminal block
provided.
Bring the thermostat into place, mount it on the ush-mounting box
with 2 screws. Fit the cover frame and attach the display.
5. Start-up menu
Make sure the on/o switch on the right side of the thermostat is in
the correct position. After connecting to the mains, the start-up menu
appears to guide you through the basic settings.
Points of interest:
• Floor nish: With "WOOD", the oor temperature is limited to 28
• Type of oor sensor: Select 12K (supplied as standard)
• Setting up WiFi: see point 8
6. Operation of the thermostat
51
59
Current mode
Temp down
Key lock
12 9 24
The menu structure is as follows:
Mode selection:
Auto mode
Eco mode
Manual mode
Holiday mode
Frost protection mode
Pin
Slow start
Key lock:
Long press to lock
or unlock.
MAGNUM Heating Group B.V.
CHN PRODUCED MANUFACTURER
16A 230V~ 50/60HZ T30 IP21
TYPE
MRC2
Connection wire heating cable
Power supply (Phase)
Connection wire heating cable
Power supply (Neutral)
* Order does not matter.
Current temp.
Status
Temp up
Settings
Mode selection
Settings:
Program (section 6.4)
Date and time
Language
Comfort temperature
Consumption (section 6.3)
Setting up WiFi (item 8)
Screen settings
Colour theme
Brightness
Screen saver
Night screen
Presence sensor (7)
Information
Manual
6.1 Advanced settings
CAUTION: Settings in
this menu should only be
changed in consultation
with the supplier to avoid
unwanted results.
6.2 Explanation of modes and symbols
Auto mode
The thermostat follows the set programme.
See section 6.4 for setting the programme.
Eco mode
Operates based on Auto mode and switches on presence
sensor. If no human activity is detected, the thermostat will
actively switch o the heating to achieve maximum energy
savings. If human activity is detected, the thermostat will
switch back on.
Manual mode
Thermostat is operated manually.
Holiday mode
Thermostat is in reduction mode and follows the
o C.
programme again after the number of days displayed.
Frost protection mode
Thermostat keeps temperature at minus 7 degrees.
Slow start mode (for newly installed oors)
The temperature rises gradually for 20 days to prevent
cracks in the oor. If this function is activated in the start-up
menu, the key lock remains active for 20 days. The display
shows the number of days remaining. After 20 days, the key
lock is lifted and the thermostat can be connected to WiFi.
WARNING: Do not interrupt this mode!
Auto mode is manually interrupted
Follows the set programme again at the next switching
moment.
Eco mode is manually interrupted
Follows the set programme again at the next switching
moment.
Heating
System is heating up.
Open window detection
Sudden temperature drop detected. Temporarily switches o
the thermostat to prevent unnecessary heating.
Days remaining
For Slow start mode and Vacation mode
19d
6.3 Consumption
The average consumption of the under oor heating can be read as
a percentage. The thermostat must be on for at least 1 month. To
calculate the average consumption per day, you can use the following
calculation: % x installed power x 24.
Example:
Installed power is 300 watts and consumption is 20%:
20% x 300 watts = 60 watts average consumption per hour.
60W x 24 hours = 1,440 Watts average consumption per day.
(Long press)
Heating system
Temp. unit
Temp. step
Calibration
Intelligence
Deviation
Lowering temperature
Open window function
Factory reset
