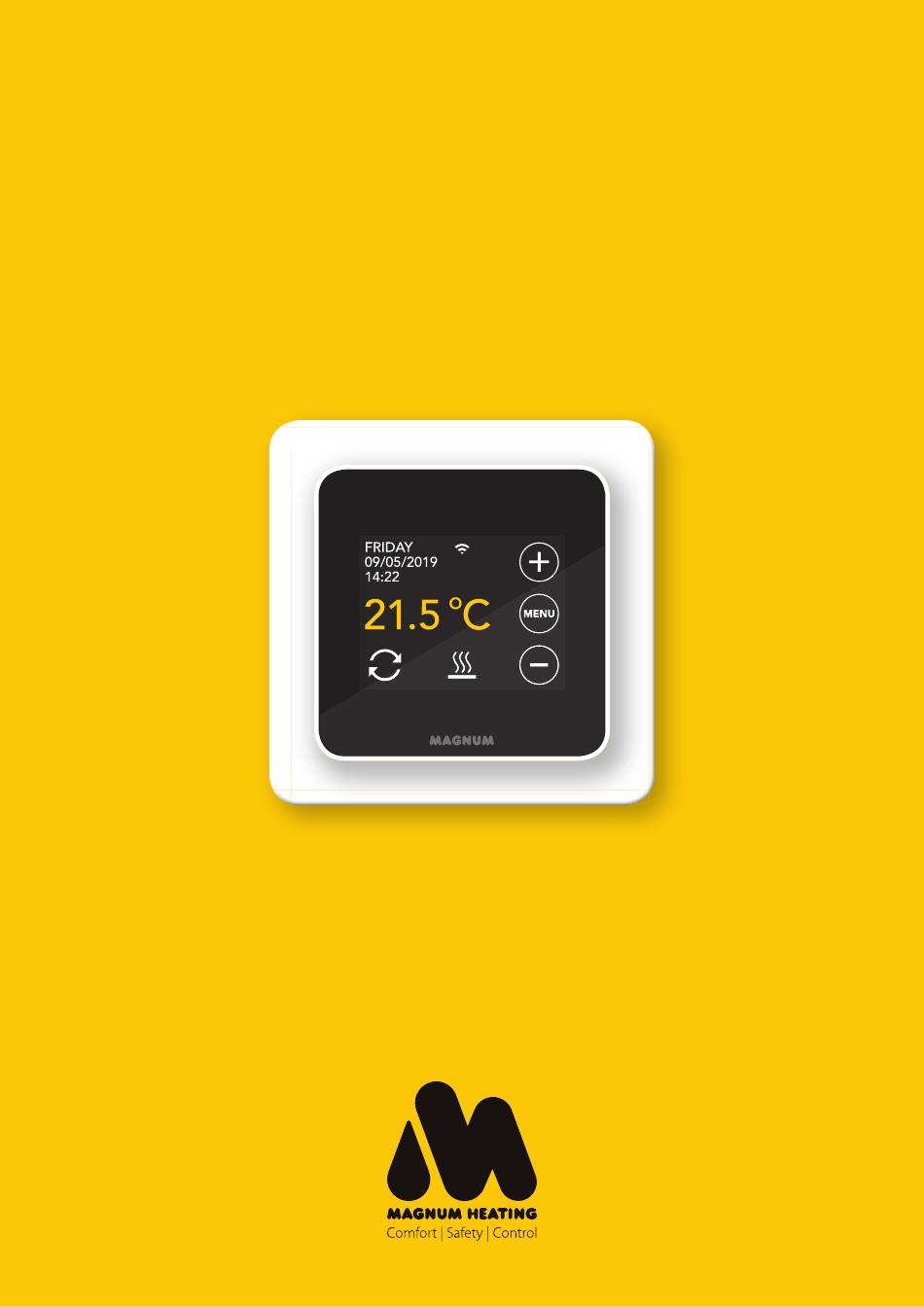

MAGNUM MRC
2020 WI-FI THERMOSTAT
USER INTERFACE DESIGN
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAGNUM MRC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Magnum Heating MAGNUM MRC

Summary of Contents for Magnum Heating MAGNUM MRC

  • Page 1 MAGNUM MRC 2020 WI-FI THERMOSTAT USER INTERFACE DESIGN...
  • Page 2 PHYSICAL Full Touch LCD Screen Size 2,3” Working area 46,752 mm x 35,064 mm Resolution 320 x 240 pixels 25 mm 25 mm Radius: 7mm Radius: 7mm Logo: 15mm Glass 64mm Frame: 66mm (thickness 1mm) 86mm Thermostat On Thermostat O No Radius (90 Corners)
  • Page 3 INDEX PAGE 1. USER INTERFACE BASICS 2. ICON EXPLENATION 3. MENU STRUCTURE 4. START-UP MENU (ALSO FACTORY RESET MENU) 5. HOME SCREEN 5.1 TEMPORARY MODE 5.2 HIDDEN FEATURES 5.2.1 KEY LOCK 5.2.2 ADVANVED SETTINGS 6. MENU 6.1 MODE SELECTION 6.1.1 AUTO MODE 6.1.2 MANUAL MODE 6.1.3 HOLIDAY MODE 6.1.4 FROSTPROTECTION MODE 13...

  • Page 4: User Interface Basics

    1. USER INTERFACE BASICS Font AVENIR MEDIUM Background Black Text White or color (as marker) Marker 1 color as marker (UI color options: MAGNUM Yellow, Cyan, Green or Magenta) Grid design 4x3 blocks for positioning control buttons (9mm round) thoughout the UI. 46,752 mm 1,34 mm 9 mm...

  • Page 5: Other Icons

    2. ICON EXPLENATION OTHER ICONS OPERATING MODE ICONS AUTO MODE HEATING Auto program is running System is heating MANUAL MODE OPEN WINDOW DETECTION Sudden drop in temperature, heating is off. HOLIDAY MODE WI-FI - 3 lines Perfect connection FROST PROTECTION MODE WI-FI - 2 lines Good connection SLOW START-UP MODE...
  • Page 6 4. FIRST START-UP MENU (ALSO FACTORY RESET) SET DAY FRANCAIS SELECT LANGUAGE Select language SET TIME Set current time NEDERLANDS • 1 touch is one minute. DEUTSCH 17:47 • Hold button to ENGLISH speed up. ITALIANO NORSK DANSK THANK YOU FOR CHOOSING SET AUTO DAYLIGHT Welcome text Sets clock back or for-...
  • Page 7 Select sensor Slow start wil slowly SENSOR TYPE SLOW START? increase temp over the next 20 days. ROOM For newly laid fl oors FLOOR “FROSTPROTECTI- ON MODE” Icon will appear in operating mode fi eld. FLOOR: Controlled by WIFI: TEMP CONTROL BY CONNECT TO WI-FI? fl oor temperature YES: Next screen...

  • Page 8: Home Screen

    5 HOME SCREEN Wi-Fi strength indicator Key-lock indicator Day, Date and Time Rise temperature Current temperature Go to MENU Operating mode Lower temperature Heating or Open window detection icon 5.1 TEMPORARY MODE TEMPORARY Rise temperature Overwrites current temperature until next switch moment from auto program.

  • Page 9: Hidden Features

    5.2 HIDDEN FEATURES From the Home Screen 3 shortcuts are accessible by pressing and hold 2 or 3 buttons simultaneously for a designated time: • Key lock • Advanced Settings • Factory Reset 5.2.1 KEY LOCK To activate: Press -- button for 3 sec.

  • Page 10: Mode Selection

    6.1 MODE SELECTION 6.1.1 AUTO MODE 6.1.2 MANUAL MODE MODE SELECT MODE SELECT PROGRAM PROGRAM CONSUMPTION CONSUMPTION SETTINGS SETTINGS AUTO MODE AUTO MODE MANUAL MODE MANUAL HOLIDAY MODE HOLIDAY FROST PROTECT FROST PROTECTION SET NUMBER OF DAYS CURRENT SCEDULE: “MANUAL MODE” Ato Mode wil follow Icon will appear in already set program...

  • Page 11: Holiday Mode

    6.1.3 HOLIDAY MODE 6.1.4 FROST PROTECTION MODE MODE SELECT MODE SELECT PROGRAM PROGRAM CONSUMPTION CONSUMPTION SETTINGS SETTINGS AUTO MODE AUTO MODE MANUAL MODE MANUAL MODE HOLIDAY MODE HOLIDAY MODE FROST PROTECT FROST PROTECT SET NUMBER OF DAYS “FROSTPROTECTI- ON MODE” Icon will appear in operating mode field.
  • Page 12 6.2 PROGRAMMING SELECT (MULTIPLE) DAYS Select (multiple) days TO PROGRAM All days are marked as “open for selecti- on” icons. Example: Mon, Tue and Wed are selected. SELECT (MULTIPLE) DAYS Mon, Tue and Wed TO PROGRAM are selected. Selec- ted days will turn into MODE SELECT colored icons marked PROGRAM...
  • Page 13 SET COMFORT TEMPERATURE SELECT (MULTIPLE) DAYS FOR Select (multiple) days PROGRAM HEATING Example: THU and FRI 21.5 are selected. No “Back” button available: if no days are selected and press set you go back in menu. SELECT (MULTIPLE) DAYS FOR THU and FRI are Period 1 Period 2...
  • Page 14 6.3 CONSUMPTION MODE SELECT PROGRAM CONSUMPTION SETTINGS CONSUMPTION IN % WEEK MONTH YEAR 32% 31% 35%...

  • Page 15: Date And Time

    6.4 SETTINGS 6.4.1 DATE AND TIME SET DAY MODE SELECT SET TIME PROGRAM CONSUMPTION 14:22 SETTINGS SET AUTO DAYLIGHT SAVINGS? DATE AND TIME LANGUAGE COMFORT TEMP. WIFI SET UP SET YEAR 2019 SET MONTH...

  • Page 16: Comfort Temperature

    6.4.2 LANGUAGE 6.4.3 COMFORT TEMPERATURE MODE SELECT MODE SELECT PROGRAM PROGRAM CONSUMPTION CONSUMPTION SETTINGS SETTINGS DATE AND TIME DATE AND TIME LANGUAGE COMFORT TEMP. LANGUAGE WIFI SET UP COMFORT TEMP. DISPLAY SETTINGS WIFI SET UP DISPLAY SETTINGS ATTENTION: FRANCAIS SELECT LANGUAGE CHANGING THE COMFORT NEDERLANDS TEMPERATURE WILL OVERWRITE...
  • Page 17 6.4.4 WIFI SET UP THERMOSTAT CONNECTED TO WIFI logo stops blin- WI-FI! king MODE SELECT THERMOSTAT NOT CONNECTED! After 5 min or failed PLEASE TRY AGAIN. PROGRAM connection CONSUMPTION SETTINGS DATE AND TIME Turns to homescreen LANGUAGE Wi-Fi icon on home- screen COMFORT TEMP.

  • Page 18: Display Settings

    6.4.5 DISPLAY SETTINGS 6.4.5.1 COLOR THEME If OK is pressed, Settings are saved and thermostat will return to Home Screen YELLOW CYAN MAGENTA GREEN MODE SELECT If OK is pressed, PROGRAM Settings are saved and thermostat will return CONSUMPTION YELLOW to Home Screen SETTINGS CYAN...
  • Page 19 COLOR THEME CODES MAGNUM YELLOW (Standard) CMYK: 0/20/100/0 RGB: 247/205/57 #ffcc00 CYAN CMYK: 100/0/0/0 RGB: 0/159/227 #009fe3 MAGENTA CMYK: 0/100/0/0 RGB: 230/0/126 #e6007e GREEN: CMYK: 50/0/100/0 RGB: 149/193/31 #95c11f...

  • Page 20: Backlight Delay

    6.4.5.2 BRIGHTNESS 6.4.5.3 BACKLIGHT DELAY MODE SELECT MODE SELECT PROGRAM PROGRAM CONSUMPTION CONSUMPTION SETTINGS SETTINGS LANGUAGE LANGUAGE COMFORT TEMP. COMFORT TEMP. WIFI SET UP WIFI SET UP DISPLAY SETTINGS DISPLAY SETTINGS COLOR THEME COLOR THEME BRIGHTNESS BRIGHTNESS BACKLIGHT DELAY BACKLIGHT DELAY NIGHT SCREEN NIGHT SCREEN SET DISPLAY BRIGHTNESS...
  • Page 21 6.4.5.4 NIGHT SCREEN If OK is pressed, Settings are saved and thermostat will return to Home Screen MODE SELECT PROGRAM CONSUMPTION TIME DATE TEMP. SETTINGS TIME + TEMP. TIME ONLY LANGUAGE If OK is pressed, COMFORT TEMP. Settings are saved and thermostat will WIFI SET UP return to Home...

  • Page 22: Advanced Settings

    7. ADVANCED SETTINGS 7.1 HEATING SYSTEM SENSOR TYPE Activate: ROOM Press MENU button for 5 sec. FLOOR WARNING: WARNING MESSAGE TEMP CONTROL BY YOU ARE ENTERING THE ADVANCED SETTINGS MENU. Press “OK” to conti- ROOM ADJUSTING THESE VALUES CAN CAUSE UNWANTED FUNCTIO- FLOOR NING OF THIS THERMOSTAT! Press “Back”...

  • Page 23: Temperature Unit

    7.2 TEMPERATURE UNIT 7.3 ADAPTIVE FUNCTION Activate: Activate: Press MENU Press MENU button for 5 sec. button for 5 sec. WARNING: WARNING: WARNING MESSAGE WARNING MESSAGE YOU ARE ENTERING THE YOU ARE ENTERING THE ADVANCED SETTINGS MENU. ADVANCED SETTINGS MENU. Press “OK”...
  • Page 24 7.4 CALLIBRATION 7.5 INTELLIGENCE Activate: Activate: Press MENU Press MENU button for 5 sec. button for 5 sec. WARNING: WARNING: WARNING MESSAGE WARNING MESSAGE YOU ARE ENTERING THE YOU ARE ENTERING THE ADVANCED SETTINGS MENU. ADVANCED SETTINGS MENU. Press “OK” to conti- Press “OK”...

  • Page 25: Open Window

    7.6 DIFFERENCE 7.7 OPEN WINDOW Activate: Activate: Press MENU Press MENU button for 5 sec. button for 5 sec. WARNING: WARNING: WARNING MESSAGE WARNING MESSAGE YOU ARE ENTERING THE YOU ARE ENTERING THE ADVANCED SETTINGS MENU. ADVANCED SETTINGS MENU. Press “OK” to conti- Press “OK”...
