PRESONUS Eris HD10BT Manual

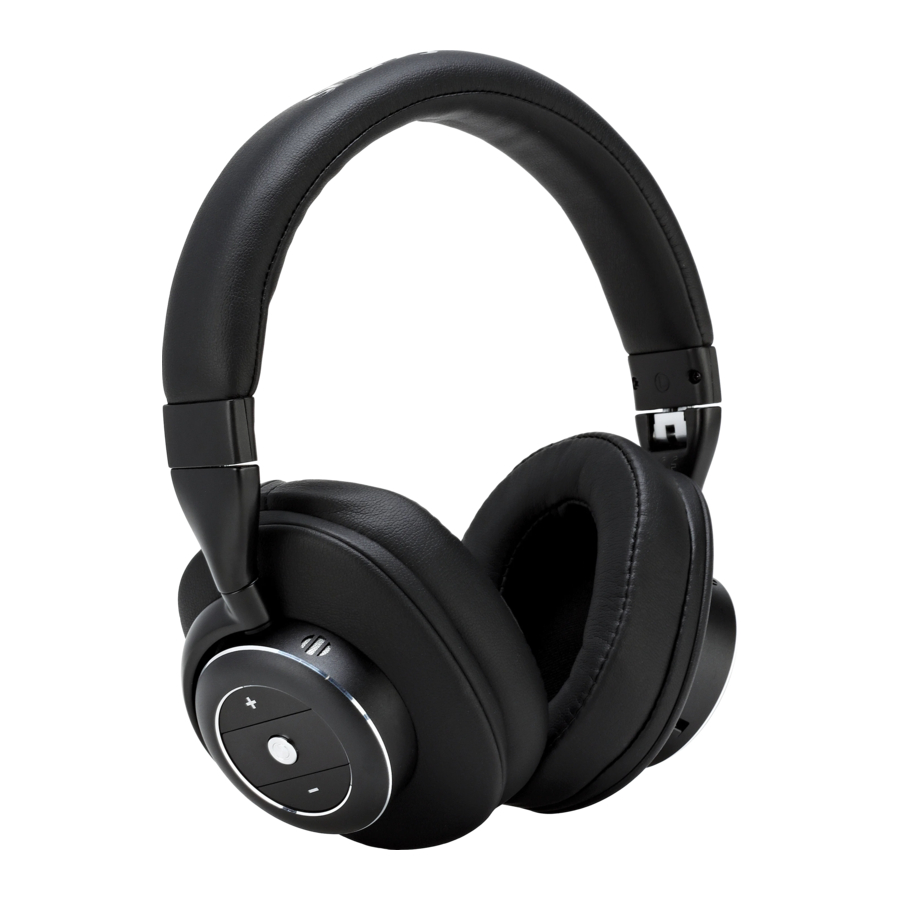

Description of the appliance

Specifications

Bluetooth Solution: CSR
Bluetooth version: V4.0
Support agreement: A2DP, AVRCP, HFP, HSP
Operating distance: 10M
Battery: 300mA
Charging time: about 3 hours
Charging current: 200mA
ANC working time: about 8 hours
Driver Unit: Ø40mm
Sensitivity: 105dB/1mW(S.P.L at 1KHz)
Frequency Range: 20Hz-20KHz
Rated Power: 10mw
Max. Power: 20mw

Battery charging

The unit's battery must be recharged before use.
The accessory micro-USB cable must be used for recharging the unit's battery.
Connect the appropriate connector on the accessory micro-USB cable to the micro-USB port on the headphones, and the USB plug on the other end to a USB port on a computer.
When recharging begins, the LED indicator on the headphones will light red.
Full recharging requires about three hours; when recharging is completed, the LED indicator will turn off.
When the battery's charge is approaching depletion, a beep sound will be heard in the headphones at one-minute intervals.

Note
Battery recharging time and usable battery time may vary depending on ambient temperature and frequency of use.
Do not place metal objects near the headphones' charging contacts, since dangerous electrical shorts or abnormal heating may result.

Please don't attempt to change the rechargeable lithium battery that should last the lifetime of the device.
Please don't dispose used batteries/electronics with ordinary solid waste, since they contain toxic substances.

• Please turn off your headset after your usage to get a longer battery life.

Pair the unit with Bluetooth devices

1. With the headphone power OFF, hold MFB button depressed for three seconds or more to power on and enter the pairing mode. The pairing mode is confirmed by the LED indicator's flashing blue and red.
2. When in the paring mode, if pairing is not completed within about five minutes, the power will automatically turn off.
3. Turn on the power to the bluetooth device you wish to pair with, and begin pairing; search for this unit from the paired bluetooth device.
   Set the bluetooth device within one meter to the wireless headphones.
   These wireless headphones will appear in the bluetooth device's display as "VT-H78".
4. Confirm that pairing has been successfully completed with the bluetooth device.
   Look at the display for the bluetooth-enabled device and select "VT-H78".
   Pairing is confirmed when the LED indicator flashes blue at the intervals of three seconds.
   The PIN code for these wireless headphones has been factory set at "0000". Input this code if requested by the bluetooth device.

Notes:

1. When the headphone already paired with a device, it will alternately connect when both devices powered on and stay within 1m. If you want to pair with another device, please disconnect the previous device first.
2. If the pairing is not successful, please switch off headset firstly and then re- pair again.

Noise Canceling Function

When you slide the NC button to the "On" side, the indicator will turn on, then you can enjoy the headphone in Noise cancellation mode. When you don't need the Noise cancellation function, please slide the NC button to the OFF side.

Making calls with the unit

Notes:
Not all the mobile phones support all the functions listed above. Please refer to the instruction of your mobile phone. Some functions and indication tones may vary with mobile phones

Playing Music

To use the wireless headphones to listen to music form a bluetooth device, you must first perform pairing with the bluetooth device using the A2DP audio profile.

Controls when listening to music
(+) button
Press once: increase the volume
Press and hold: return to beginning of track or chapter.
(-) button
Press once: decrease volume
Press and hold: advance to next track or chapter

MFB button
Press once: play/pause

• When sound volume is set to maximum or minimum levels a beep sound will be produced from the headphones.
• Depending on the specifications of the connected bluetooth device, the controls noted above and controls on the bluetooth device may not be supported.

Disconnecting from the bluetooth device

Hold the wireless headphones MFB button depressed for about five seconds to turn off the power.

Troubleshooting

Important safety information

Adjust the headphone sound to the proper volume. Loud sound may damage your ears.
Don't turn the volume so high that you can't hear what's around you.
Use caution or temporarily discontinue use in potentially hazardous situations.
Don not use the headphones while ridding a bicycle, motor bike, or while driving a car. The use of headphones may create a traffic hazard and is illegal in many areas.
Not exposure or toss headphone into a fire. It will probably caused an accident
Don't disassemble headset any if you are not an expert.
Place out of reach of small children to prevent accidental ingestion of small parts.

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment(such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.
To prevent a fire hazard, do not place any naked flame sources (such as lighted candle) on the equipment.
