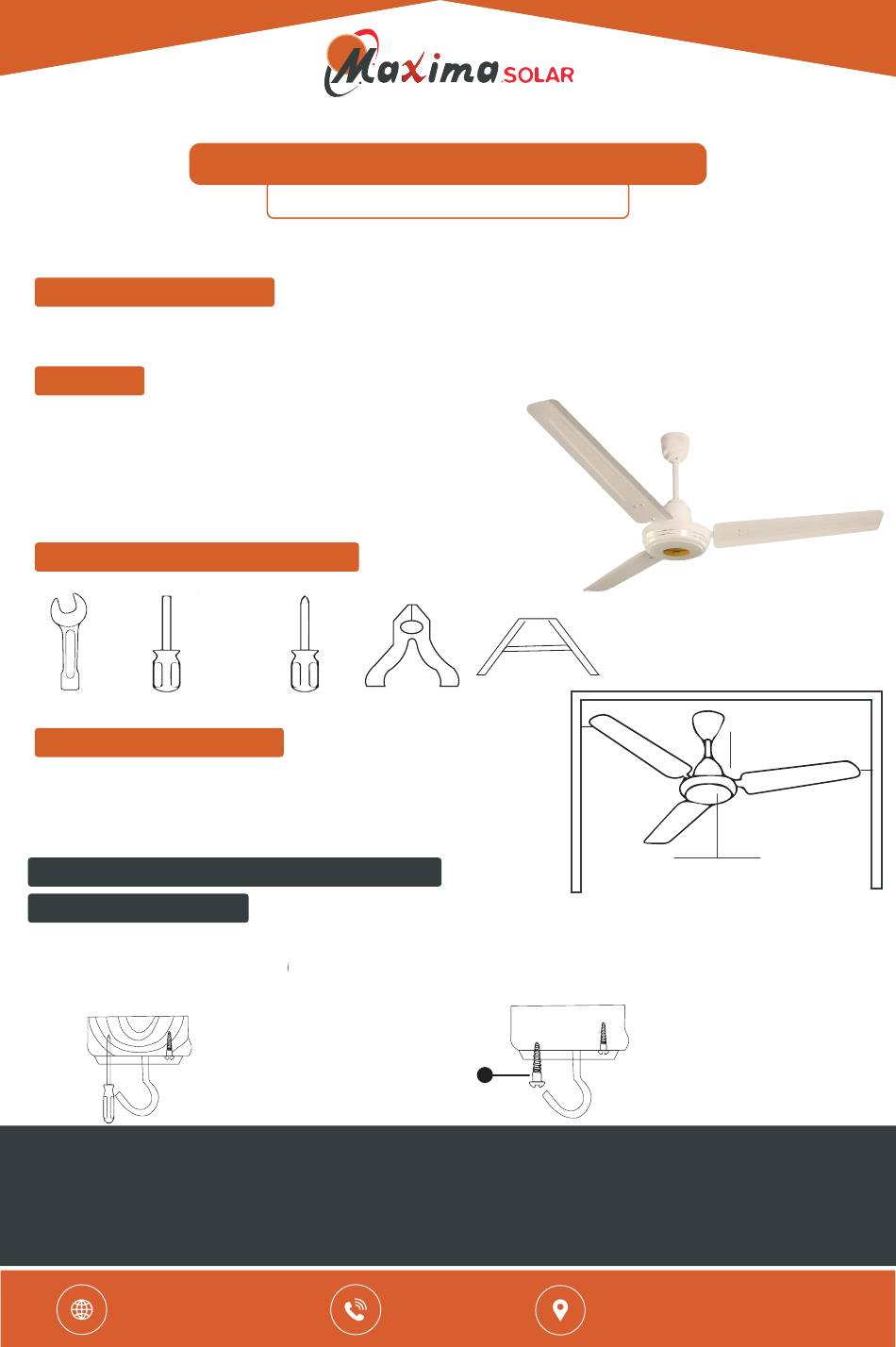

Maxima JW-C4BF Instruction Manual

Please read the following instructions carefully and retain a copy of his information for future reference.
When using this electrical appliance, the following safety precautions should be strictly followed.
Simple Introduction
This product adopts the direct current frequency converted motor that is high efficiency, saving,
durable and environmental protection
Caution
This product is with input voltage: DC 12v.
1.
If you or familiar with electrical installation, be sure have a licensed
2.
electrician to install the product for you.
when installing a ceiling fan, all parts with screws must be tightened Firmly
3.
Choose a location for mounting the fan where the blades will be clear from
4.
all obstructions and maintain a minimum of 2.3 meters from the floor
Installation preparation tool
10# Spanner Slotted screwdriver
Setup Details of parts
Motor
1.
Blade
2.
Screw for blade
3.
1. Minimum space for Installation (see Fig 1)
2. Bracket installation
For wooden celling, the brackets should be fixed on the beam by 1.5 inches
wooden threaded screw! (see Fig 2)
For the cement ceiling, firstly use with 8mm impact drilling bit to drill a hole to fit the expansion
screw than secure the bracket on the ceiling by tightening M6 expansion screw see Fig 3)
Fig 2
Note: after the brocket li secured, must ensure the selected ceiling location with the fixings are
capable of supporting a minimum weight/gravity of 60 Kgs (use hand try to pull the bracket
for safety assurance).
Note, please pay attention to different materials of celling and select the appropriate type
of screws to fix the bracket. Do not Fix the bracket directly on the plywood to avoid screw loosenin
that causes danger.
Visit Our Website
www.maxima.solar
INSTRUCTION MANUAL
Model. No. JW-C4BF Catalogue na: ME-103DC
READ AND SAVE THESE INSTRUCTIONS
philips screwdriver plastic clamp
Downrod
4.
Bracket
5.
Wall control
6.
o
ladder
Call Us
+971 4 2231185
0.5m
0.2m
2.3m
Fig 1
Fig 3
Our Address
Shop 5&6, 7 States building Baniyas
Square, Deira, Dubai, UAE
0.5m
