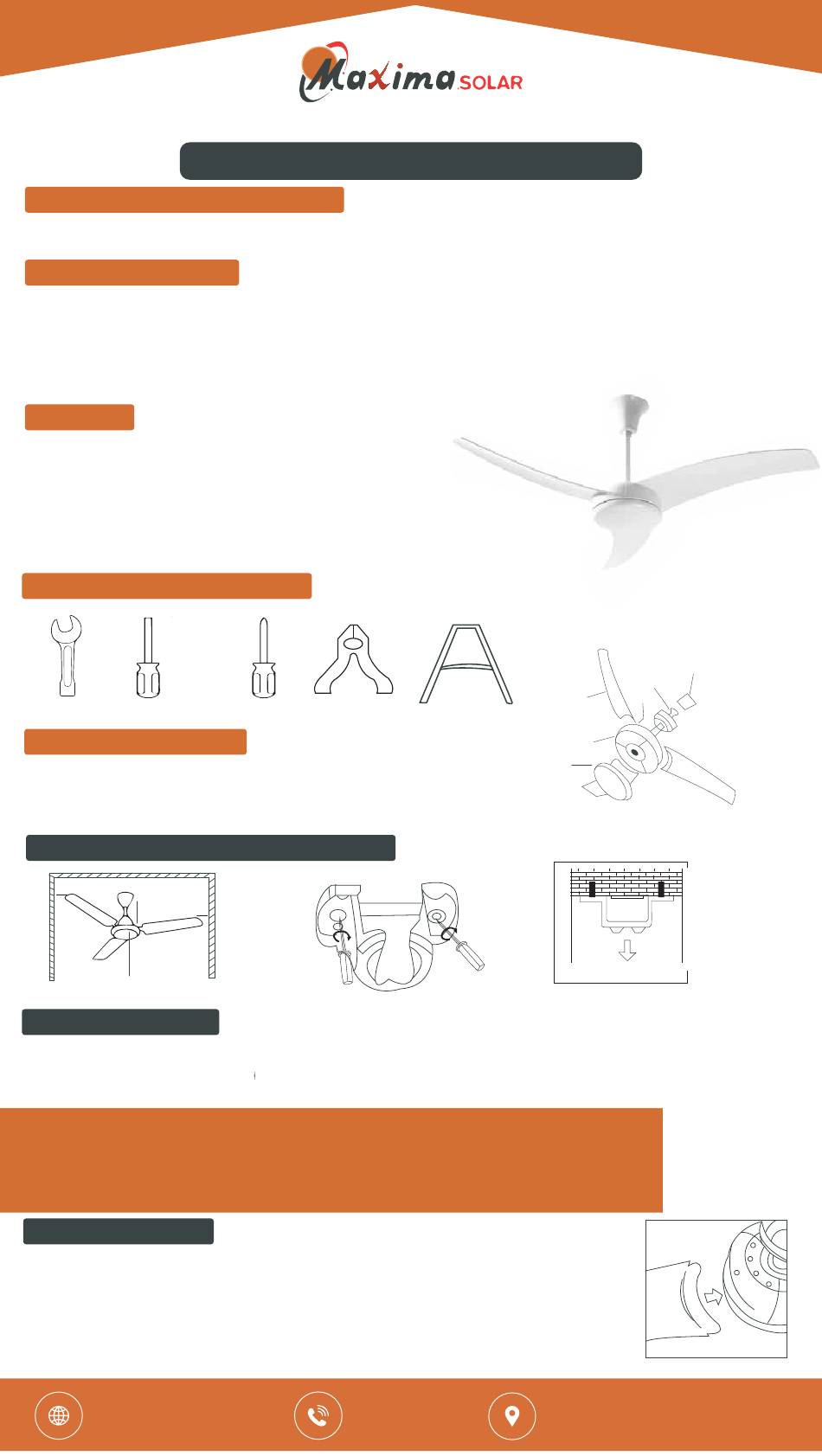

Maxima SOLAR ME-203DC Instruction Manual

READ AND SAVE THESE INSTRUCTIONS
Please read the following instructions carefully and retain a copy of his information for future reference.
When using this electrical appliance, the following safety precautions should be strictly followed.

Simple Introduction

This product adopts the direct current frequency converted motor that is high efficiency, saving,
1.
durable and environmental protection
It carries a unique & superior structural design, vague appearance, convenient and time
2.
saving installation
This product claims at giving you considerate service by unique 5-speed se ling, independent
3.
light control switch. 1/4/8 timer setting
Caution
This product is with input voltage: DC 24v.
1.
If you or familiar with electrical installation, be sure have a licensed
2.
electrician to install the product for you.
Before installing or removing a ceiling fan, you should swich off the power first
3.
When Installing a ceiling fan, all parts with screws must be tightened firmly.
4.
Choose a location for mounting the fan where the blades will be clear from
5.
all obstructions and maintain a minimum of 2.3 meters from the floor

Installation preparation tool

10# Spanner Slotted screwdriver

Setup Details of parts

Cover plate Screw fro blade
1. 4.
Motor Downrod with ball
5.
2.
Bracket
Blade
6.
3.
1. Minimum space for Installation (see Fig 1)
0.5m
0.2m
2.3m
Fig 1

2. Bracket installation

For wooden celling, the brackets should be fixed on the beam by 1.5 inches
wooden threaded screw! (see Fig 2)
For the cement ceiling, firstly use with 8mm impact drilling bit to drill a hole to fit the expansion
screw than secure the bracket on the ceiling by tightening M6 expansion screw see Fig 3)
Note: after the brocke tis secured, must ensure the selected ceiling location with the fixings are
capable of supporting a minimum weight/gravity of 60 Kgs (use hand try to pull the bracket
for safety assurance).
Note, please pay attention to different materials of celling and select the appropriate type
of screws to fix the bracket. Do not Fix the bracket directly on the plywood to avoid screw loosenin
that causes danger.

3. Blades Installation

1. Insert the far blades to the motor installation slot. Firm pressure is needed. see Fig 4).
Secure all fan blades using ST<x16 screw by Philips screwdriver until tightered it on the
motor cover. Fig 4
Visit Our Website
www.maxima.solar
INSTRUCTION MANUAL

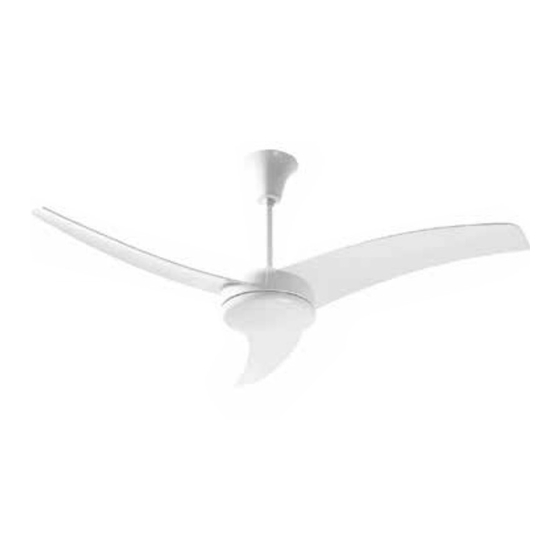

Model: ME-203DC 42" DC ceiling fan
philips screwdriver plastic clamp
Remote control
7.
0.5m
o
ladder
Fig 2
Call Us
+971 4 2231185
6
5
4
3
2
1
Fig 3
Fig 4
