Draft 230417
Coordinator/Router (CR3)
WIB2000
User manual
Page 1 of 10
Advertisement
Table of Contents
Related Manuals for COWMANAGER WIB2000
Summary of Contents for COWMANAGER WIB2000
-
Page 1: Table Of Contents
Safety warnings ................................2 Installation instructions ............................... 2 Serial number and certification marks ........................4 Indicator lights on the WIB2000 ..........................5 Function of the indicator lights on a Coordinator ..................5 Function of the indicator lights on a Router ....................5 Troubleshooting ................................ -
Page 2: Intended Use

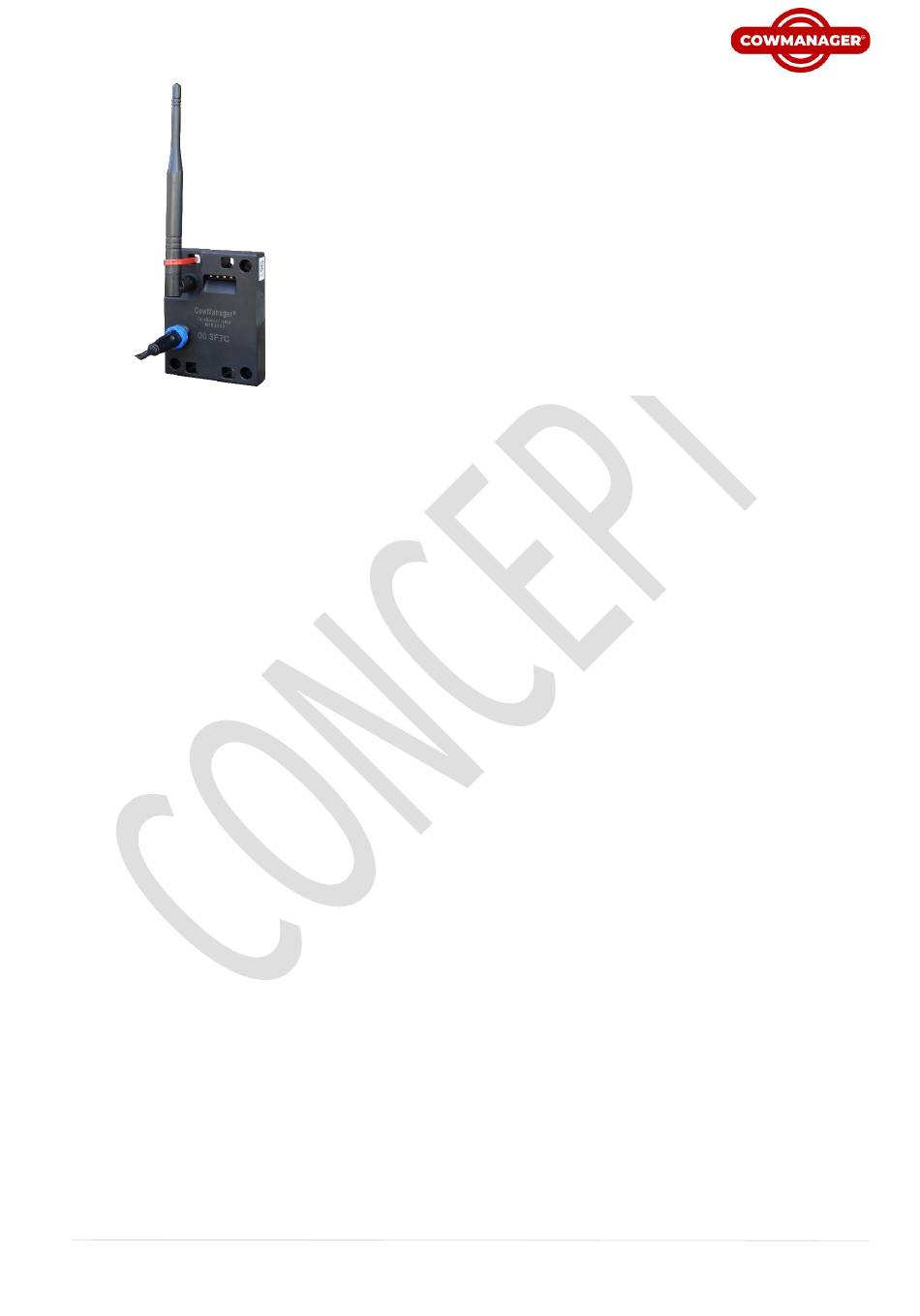

Cow Wellness Sensor (CWS) that is attached to the cow’s ear, and the computer with the CowManager application installed. The WIB2000 can be configured to act as a Coordinator or Router in the network. A Coordinator is always required because this device functions a base station. If the distance between the CWS and Coordinator becomes too large, extra Routers can be added an installed nearby the location of the sensors. - Page 3 In case of a Router installation, the supplied power adapter must be used as power supply. • Make sure that the antenna is always in a vertical up position. In case the WIB2000 is placed in a horizontal position, the cable tie should not be placed.
-
Page 4: Serial Number And Certification Marks
Certification marks Figure 2 Every WIB2000 does have a unique serial number. See Figure 2 for the location of it. Remark: The real serial number is longer then the six digits that are present on device. The number starts with “0000F00000” but since that part is generic for all devices this is omitted. -
Page 5: Indicator Lights On The Wib2000
Indicator lights on the WIB2000 On the WIB2000, five indicator lights are present to check the status of the device. Depending on the function of the WIB2000 (Coordinator or Router) some indicators have a different function. 5.1 Function of the indicator lights on a Coordinator... -
Page 6: Maintenance Information
Maintenance information The WIB2000 is moulded with a waterproof material, as is the blue USB connector on the cable. The device can be placed outside and is rain-proof when the USB cable and antenna are connected correctly. In case cleaning is required: Always use water without additives, with a maximum temperature of 40°C (104°F), and a soft... -
Page 7: Technical Specifications
Technical specifications Parameter Value Unit Power Supply voltage Current Average 35, peak 200 Supply source USB interface Wireless Standard IEEE802.15.4a Operational frequency 2405 - 2480 Operating channel (default) Modulation OQPSK Transmission power <10 Antenna polarization Omnidirectional Range of RF link (outdoor, free line of sight) 800 / 2600 m / ft Environmental... - Page 8 (antenna) and all persons at all times and must not be co-located or operating in conjunction with any other antenna or transmitter. This radio transmitter IC: 22382-WIB2000 has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
-
Page 9: Approvals
IC: 22382-WIB2000 United States FCC ID: Y8K-WIB2000 The WIB2000 is in conformity with the Radio Equipment Directive (RED) 2014/53/EU and RoHS Directive 2011/65/EU. 11 Explanation of Markings Disposal of the WIB2000; it means that the WIB2000 should not be mixed with general household waste. -
Page 10: Contact Details
12 Contact details Manufacturer: CowManager B.V. Gerverscop 9 3481 LT Harmelen The Netherlands Tel: +31 (0)348 443 840 E-mail: sales@cowmanager.com Website: www.cowmanager.com Draft 230417 Page 10 of 10...
