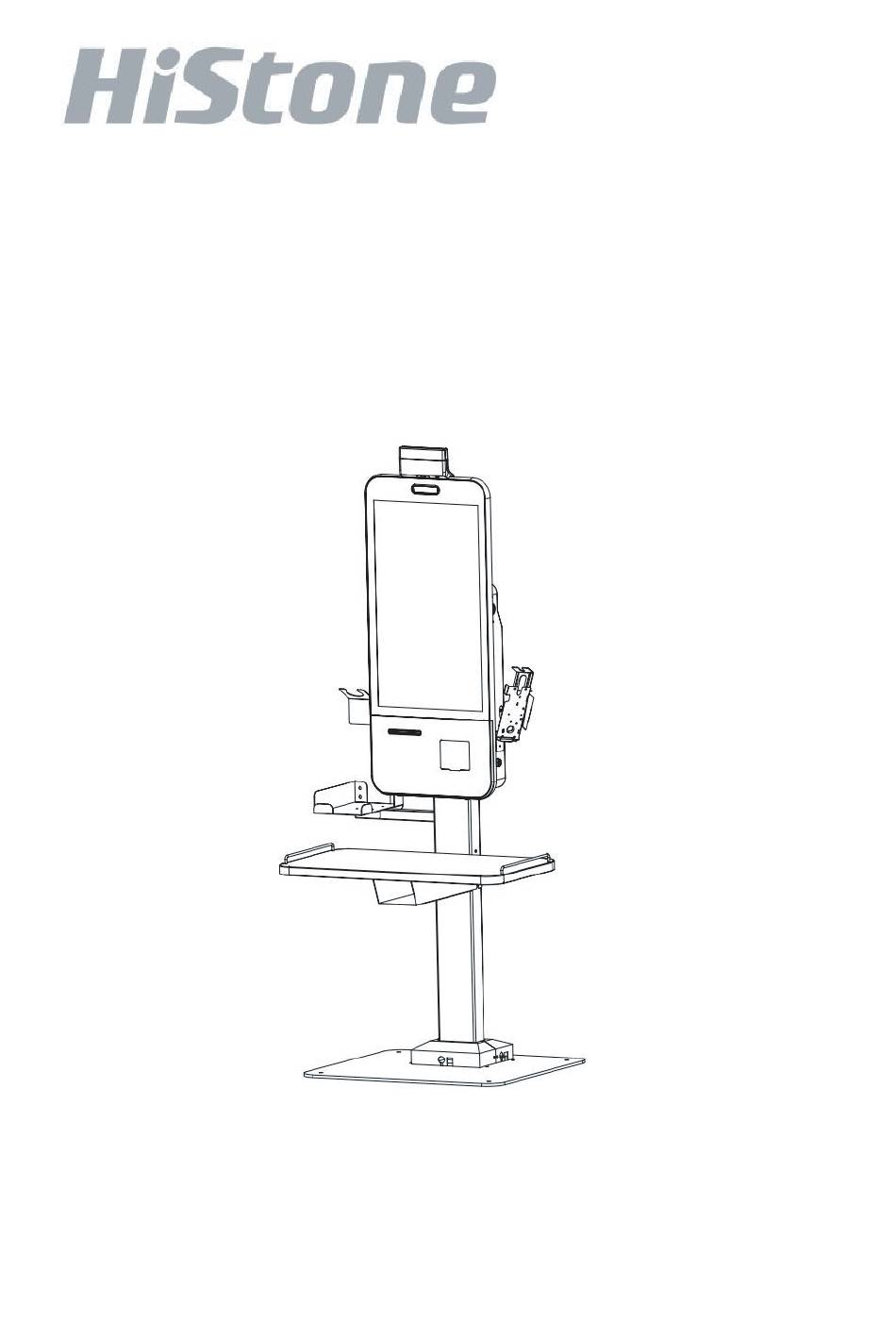

- Page 1 User Manual HS520U Self-Ordering Terminal QingDao Histone Intelligent Commercial System Co.，Ltd...
-
Page 2: Notice To Users
Notice to users Thank you very much for choosing our self-service cashier terminal. Before installing and using the product, please read this manual in detail to have a deep understanding of its performance. Please keep this manual for future reference if you encounter problems in use. - Page 3 Reasonable self-service shopping solution. 2 Product introduction Overview HS520U is a new generation of self-service cash register terminal, with beautiful appearance and fashionable appearance. In order to provide a full self-service one-stop consumption overall solution, the waiters and cashiers are freed from the heavy traditional work, the customer consumption experience is improved, and the operating efficiency of catering and retail enterprises is improved.
- Page 4 2.3 Composition of HS520U The product diagram is as follow： 404mm Alarm light Camera 27 inch screen Printer paper outlet Handheld EFTPOS Scanner bracket bracket Flip Down Integrated Scanner Door window Fiscal printer Grounding bracket stand Tray Big metal plate...
- Page 5 HS520U Specification： Name HS520U specs motherboard Processor: I3-1115G4E Dual-core/4T thread base frequency 1.7GHz main frequency 3.0GHz Optional：i3-1115G4/I5-1145G7E/I5-1145G7 Memory: 4G DDR4 Storage: 128G m.2/128G SSD Ratio: 16:9 Size: 27” screen/touch Resolution: 1920×1080 screen Touch screen type: projected capacitive screen Image Supports all standard 1D codes...
- Page 6 If so, please contact the dealer in time to solve it; (2) Open the carton with tools. The HS520U self-service cashier terminal is protected by a foam pad and a protective film. Before moving the machine, check whether the protective film is damaged;...
- Page 7 (3) Install the equipment to the designated location. (4) For any other matters not mentioned above, please contact the company or the dealer. 7 Installation Instructions For the specific installation and operation of HS520U, please refer to "HS520U Self-Service Cashier Terminal Installation Instructions". 8 Linux compatibility...
- Page 8 Symptom Approach No display on the monitor Check the power connection; printer does not print Check the power connection; Whether the printer switch is turned on; Whether the printer is loaded with paper; Whether the printer absorbs paper in place; paper stuck in printer Whether the excess paper at the paper outlet is torn off after...
- Page 9 1) Make sure that the power is turned off during the daily maintenance of the printing unit; 11 Precautions (1) The self-service cash register terminal requires good grounding of the external power supply, the grounding resistance is less than 0.1Ω, and the equipment must be connected to a grounded three-prong national standard socket.
-
Page 10: Fcc Statement
off. When shutting down, do not cut off the main power directly, but exit the application program first, turn off the main unit, and then cut off the main power. (12) Please note that people cannot sit on the storage table, and the maximum load-bearing capacity of the table is 30Kg. - Page 11 responsible for compliance could void the user's authority to operate the equipment.
- Page 12 13 Product Environmental Protection Statement · This product meets the environmental requirements of the "Administrative Measures for Restricting the Use of Hazardous Substances in Electrical and Electronic Products". · Within the environmental protection use period, there will be no leakage and precipitation of harmful substances during the use of consumers, which will affect the health of consumers, so you can use it with confidence.
- Page 13 14 Others You can log on to our website or call the national unified hotline. QingDao Histone Intelligent Commercial System Co., Ltd Website: https://www.hics.histonetec.com/ 24-hour customer service hotline: 4006-585-111...
-
Page 14: List Of Accessories
15 List of accessories goods NOTES host column Optional Optional big iron plate Optional Wall bracket (including 4PCS M6*60 expansion screws) Optional Tax control printer bracket Optional Financial POS stand Optional Scanner bracket Optional card reader bracket Optional Fingerprint Reader Holder Optional wifi antenna... - Page 16 24-hour customer service hotline 4006-585-111 Serving inspect ： Qingdao Histone Commercial System Co., Ltd. Headquarters Address: Qingdao, China Website: https://www.hics.histonetec.com/...
