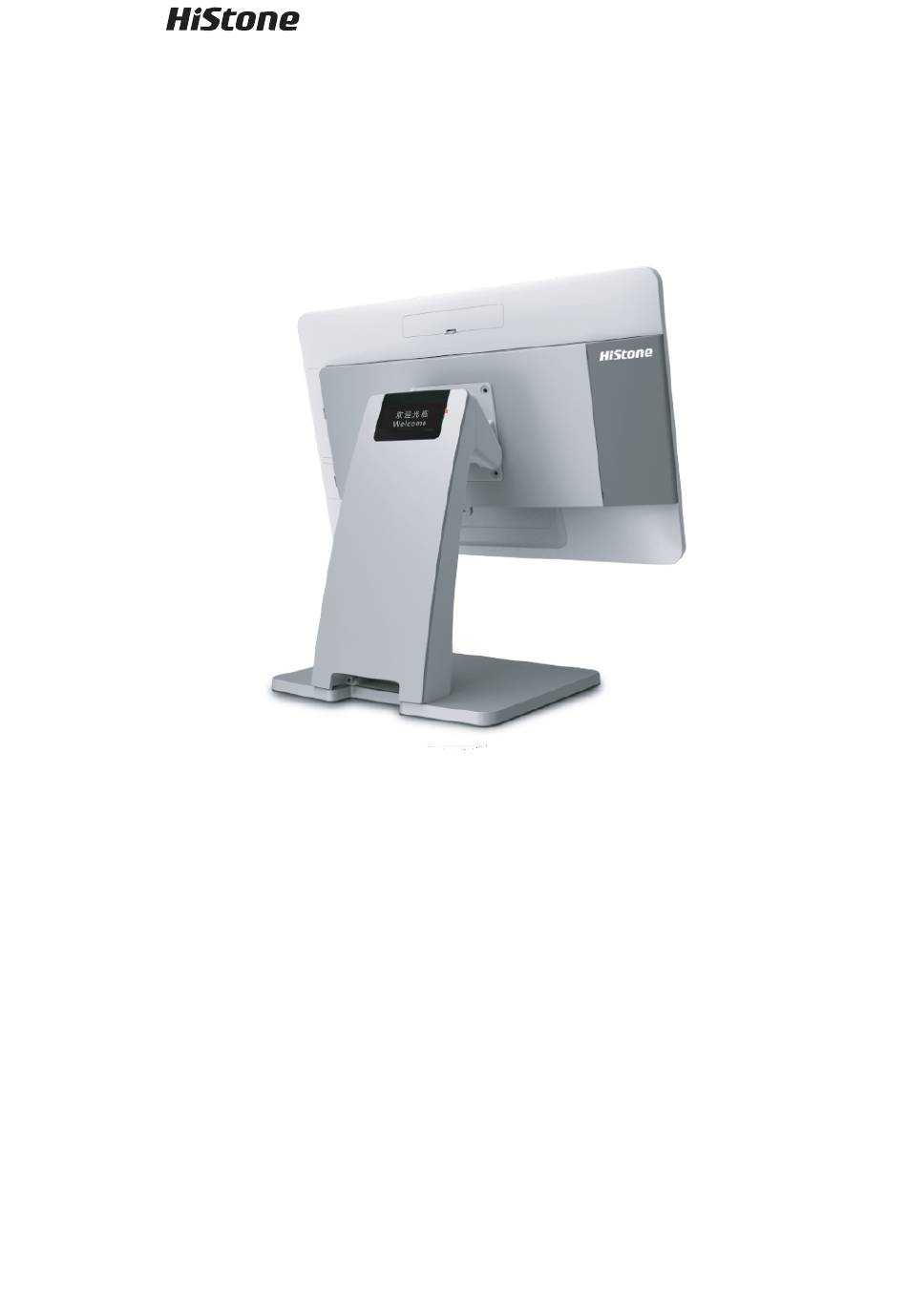

- Page 1 U s e r M a n u a l HK316K POS Device Qingdao Histone Intelligent Commercial System Co., Ltd.
-
Page 2: User Notice
POS Device User Manual User Notice Thank you very much for choosing our POS Device. Before installing and using this product, please read this manual carefully so as to have a deep understanding of its performance. Please keep this manual well for future reference if you encounter problems in use. -
Page 3: Application Range
Product basic configuration： type part HK316K processor Q u a d - c o r e A 5 5 , 2 . 0 G H z Standard 2G LPDDR4, upgradeable to 4G, Standard 16G EMMC, upgradeable to 32G,... - Page 4 POS Device User Manual peri （optional） pher Card Magnetic Stripe Card Reader/RFID Reader Contactless Card Reader (optional barcode Support (1D/2D scanning) scanner (optional camera Support (face payment or member (optional) recognition camera)
- Page 5 POS Device User Manual / POS machine related interface 3568（HS） 4 5 6 7 8 9 No function here (sticker overlay) No function here No function here 1、Cash Drawer Port 2、24V Power in 3、RJ45 LAN Port 4、USB3.0*2 5、Serial Port 6、HDMI Port（no function when with second display）...
- Page 6 POS Device User Manual / Description of use environment Category Description AC 100~240V 50-60Hz two poles Voltage with grounding usage 0℃ - 40℃ Operating environmen temperature 35%～ 80% Working humidity -20℃～ 55℃ storage temperature 20%～ 93% storage humidity / Dimensions Single screen device, L×W×H: 405mm*210mm*330mm;...
- Page 7 POS Device User Manual device with high hinge + printer device, length × width × height: 405mm*250mm*420mm； 420mm device as kiosk, L×W×H: 230mm*250mm*450mm； 450mm device with screen + second screen camera, length × width × height: 405mm*250mm*390mm. 390mm...
- Page 8 POS Device User Manual / Unpacking inspection and system installation Before opening the box, first check whether the outer packing box is in good condition and whether there is any obvious damage. If so, please contact the dealer in time to solve it;...
- Page 9 POS Device User Manual red light System errors (such as network exceptions, printer exceptions, etc.) green light System boot status blue light The system goes to sleep Swipe Magnetic Stripe Card Instructions： A. When swiping the card, the machine should be placed on a hard level surface;...
- Page 10 POS Device User Manual The magnetic strip is located at the bottom of the internal side direction of swiping cards Contactless Card Operation Instructions： A. The contactless card sensing area is located behind the right side of the host (printed with contactless logo); B.
- Page 11 POS Device User Manual / Precautions The POS device requires that the external power supply has a good grounding, the grounding resistance is less than 0.1Ω, and the device must be connected to a grounded three-prong national standard socket. If the power supply is not grounded or the grounding is poor, it may cause the case to be electrified, which poses a safety hazard to the operator and affects the stable operation of the POS...
- Page 12 POS Device User Manual engine frequently, as frequent switching will easily cause an impact on the machine; Never spill liquid of any kind, or drop it into any object; Do not put heavy pressure, strenuous exercise, shake and beat the POS device;...
- Page 13 POS Device User Manual / Product Environmental Protection Statement This product meets the environmental protection requirements of the "Administrative Measures for Restricting the Use of Hazardous Substances in Electrical and Electronic Products". Within the environmental protection use period, there will be no leakage or precipitation of harmful substances that affect the health of consumers during the use of consumers, so you can use it with confidence.
- Page 14 POS Device User Manual CPU fan various cables cash Drawer Chassis Packag...
- Page 15 / Others For the drivers of other peripherals, please refer to the random CD attached to this batch of products, or log in to the Histone POS website or call the Histone POS national unified hotline Histone POS website: www.histonetec.com...
-
Page 16: Fcc Statement
POS Device User Manual FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 17 24‐hour customer service hotline 4006‐585‐111 Test： Qingdao Histone Intelligent Commercial System Co.,Ltd. Headquarters Address: Qingdao, China URL：https://www.hics.histonetec.com/...
