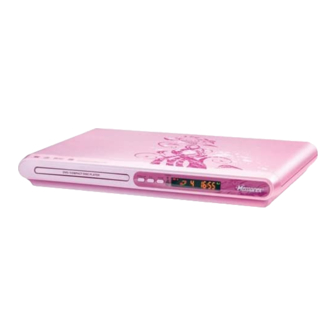

Memorex MVD2040 User Manual

VIDEO OUT (Colour Video Connector Type)
Select the colour video type to fit your connector type:
S-VIDEO: Select when using S-Video and Video OUT.
YUV: Select when using Component and Video OUT.
This setting is not affected when connecting with other connections.
ANGLE MARK
Select ON to turn the anglemarks on and OFF to turn them off.
Anglemarks are not available on all DVDs.
OSD LANGUAGE
Select the desired language (ENGLISH, FRENCH) for the On-Screen display to display text.
Note: that the DVD must have the language included in order to display it.
SCREEN SAVER
When this option is set to ON, the screen saver will come on when the unit stops or the image is
paused for approximately one minute. When this option is OFF, the screen saver will not come on.
Then after the screen image left to pause position for half an hour the unit will automatically return to
standby mode and the screen will block out of images.
SPEAKER SETUP MENU:
DOWNMIX
Sets the Audio Output mode.
LT/RT: Select to hear the sound in theatrical downmix mode.
STEREO: Select to hear the sound in Stereo downmix mode.
DOLBY DIGITAL SETUP MENU:
DUAL MONO
STEREO: Select this to set the Dolby Digital output to Stereo mode.
L-MONO: Select this to set the Dolby Digital output to left mono mode, meaning it will reproduce the
left mono signal to the Left and Right channels.
R-MONO: Select this to set the Dolby Digital output to right mono mode, meaning it will reproduce
the right mono signal to the Left and Right channels.
MIX-MONO: Select this to reproduce both channels mixed together.
PREFERENCE MENU (this menu cannot be accessed if a disc is
inserted):
AUDIO
Select the language the DVD will be played back in (ENGLISH, FRENCH, SPANISH, GERMAN,
JAPANESE). The DVD must be recorded in the selected language, other wise the default language of
the DVD will be played.
SUBTITLE
Select the language the Subtitle (OSD) will be in (ENGLISH, FRENCH, SPANISH, GERMAN,
JAPANESE, OFF). The DVD must be recorded in the selected language, otherwise the default
language of the DVD will be shown.
DISC MENU
Select the language the DISC MENU will be in (ENGLISH, FRENCH, SPANISH, GERMAN,
JAPANESE). The DVD's DISC MENU must be made in the selected language, otherwise the default
language of the DVD will be shown.
PASSWORD
Select this option for password changing. Input your old password (the default password is 1234), then
input the new password and then confirm the new password using the Number buttons, then press the
ENTER/PLAY button again. The desired new password will then be set; be sure to write it down for
future reference.
Select this option to change the TVG® password. You must know the old password in order to change
it. If you have forgotten the password, call customer service at the number listed on the Warranty.
DEFAULT
Select this option to reset all the preferences to their original factory settings. This is useful to reset the
NTSC System.
The TVGuardian Set up Menu
This menu is protected by a password (the default
password is 1234). The password can changed in
General Audio Dolby Preference TVG
PREFERENCE MENU.
TVGuardian Setup
TVG Mode OFF
TV Guardian (TVG) filters out objectionable
Hell/Damn Flt
language by monitoring the closed captioning
Reigious Flt
(CC) information contained on the DVD. When
Sexual Flt
TVG® detects objectionable words or phrases, it
CC Mode ONM
CC Channel CC2 mutes the audio and displays more appropriate
Setup Help
"profanity free" phrases. It also offers various
levels of filtering and is easily adjustable with
Go To TVG Setup Page
simple on-screen menus.
About TVG iActivate Function
1. Power on the unit, there is appeared dialog "Start using your TVGuardian foul language filter today!
Press the SETUP button and select TVGuardian to enable filter. This Message will be displayed five
times."
2. Press SETUP, move the cursor to the tab "TVG" and press ENTER button. A dialog and display
registration key appears. You can access the TVG Menu after entering the correct Activation Code.
To activate the TVGuardian® feature, either go to www. TVGuardian.com or call (866-884-3458).
Please have your "Registration Key" ready.
Activation
Once you have obtained your Activation Code, please use your remote control to enter the activation
code. Once activated, you may use TVGuardian® for the life of your product.
Memorex MVD2040B_Eng ib for Mexico version.p65 1
TVG MODE
You can select various levels of offensive language filtering.
Off ............................................................................................................................................. No filtering.
Tolerant ............................................................................... Filters only the most offensive foul language.
Moderate ................................................................................ Increased standards for language filtering.
Strict ........................................................................................ Filters out all common offensive language.
In addition to the main TV Guardian Modes listed aboce, you can turn certain word subsets on or
off according to your preferences.
Hell/Damn ......................................................................... Filters out variations of "Damn" and "Hell"
Religious. Filters out reference to deity. (To watch religious programming, turn this word subset
off.)
Sexual .............................................................................................. Filters sexually explicit language.
CC Mode
Off ..................................................................................................................... Captions never displayed.
On Mute (Default) .............................. Captions are displayed when offensive language is being filtered.
On always ........................................................................................ Captions are displayed continuously.
CC Channel
To use the TVG captioning features while watching a DVD Movie, your television must be capable of
displaying closed captions. Make sure that your TV CC is set to "CC1" or "CC2" (Close caption on
channel 1 or 2), and that the CC channel on your DVD player is set to "CC1" or "CC2" respectively
(CC2 is the default setting.)
Setup Help
Select this option and press ENTER/PLAY to enter the Setup Help of TVG Menu to look for more
information on TV Channel Selection and TVG Web site address. Press ENTER/PLAY to exit this option.
SPECIFICATIONS
Power Requirements ................................................................................................................. AC120V, 60Hz
Power Consumption .......................................... <15W (approx. 5W when set to Standby mode by remote)
Weight ....................................................................................................................................................3 Lbs
Dimensions ............................................................................................... 14.2 (L) x 8.5 (W) x 1.8 (H) inches
Weight and dimensions are approximate.
Signal System .............................................................................................................................. NTSC/PAL
Operating Temperature ................................................................................................................. 41° to 95°F
Operating Humidity Range ........................................................................... 5% to 90% (no condensation)
Discs Played:
DVD-VIDEO DISC
12cm single-sided, single layer
12cm single-sided, dual layer
12cm double-sided, single layer
8cm single-sided, single layer
8cm single-sided, dual layer
8cm double-sided, single layer
COMPACT DISC (VIDEO CD)
12cm disc
8cm disc
Video Output Level .......................................................................................................................... 1Vp-p
Audio Output Level .......................................................................................................... 2Vrms (1KHz, 0dB)
Audio Signal Output Characteristics:
Frequency Responses:
DVD (Linear Audio) .......................................................................... 20Hz-20KHz (48KHz/96KHz sampling)
CD Audio ....................................................................................................................................... 20Hz-20KHz
S/N Ratio .................................................................................................................................................. 70dB
Wow and Flutter ....................................................................................................... Below Measurable Level
Pickup:
Wave Length .......................................................................................................................................... 655nm
Laser Power ................................................................................................................................... Class 1
Specifications are subject to change without notice.
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE,
PLEASE VISIT OUR WEBSITE AT WWW.MEMOREXELECTRONICS.COM
OR CONTACT CUSTOMER SERVICE AT
1-800-919-3647
PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN
CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE
OF PURCHASE OR IMATION ELECTRONICS PRODUCTS.
FOR CONSUMER REPLACEABLE PART(S), SEE PART NUMBER(S)
ON THE LOCATION OF CONTROLS, PAGE 2, AND THEN
CONTACT FOX INTERNATIONAL AT
1-800-321-6993.
Imation Electronics Products,
A Division of Imation Enterprise Corp.
Weston, FL
Printed in Hong Kong
Visit our website at www.memorexelectronics.com
4
B 152-56350-0320-007
DVD Player
User's Guide
MVD2040
