Summary of Contents for RFNet AP1062
- Page 1 User Manual 54Mbps 11g Outdoor Wireless PoE AP and Bridge Professional Turbo speed - 108Mbps Revision : V1.0 Updated : March, 2008...
- Page 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 3 The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. European Union Notice: Radio products with the CE marking comply with the R&TTE Directive (1999/5/EC). Compliance with these directives implies conformity to the following European Norms: ◆...
-
Page 4: Table Of Contents
Contents INTRODUCTION ..................1 ....................1 RODUCT .....................1 EATURES PACKAGE CONTENTS ................2 ..................2 ONTENT OF ACKAGE ............2 YSTEM EQUIREMENTS FOR ONFIGURATION CONNECTION (HARDWARE) ..............3 ..................3 RONT NTERFACE ...................3 IDE VIEW BASIC IP NETWORKING ................10 .................. 10 LAN B IRELESS ASICS GETTING STARTED ................ -
Page 5: Introduction
NTRODUCTION The Product The product is based on the IEEE 802.11b/g standard, which is the latest 54Mbps Wireless LAN (WLAN) standard. Having this wireless protocols in one product ensure that your investments are protected, while enabling you to enjoy the fastest Wireless LAN speed. This product model –... -
Page 6: Package Contents
ACKAGE ONTENTS Content of Package 1. Outdoor AP 2. 48V DC combiner adaptor (PoE) 3. Power cord 4. Screw, washers and U-Bolts 5. Mounting brackets (for walls or pole mount) 6. Grounding wire 7. RJ45 water-proof plastic plug 8. CD-Rom (Utility and user guide) 9. -
Page 7: Connection (Hardware)

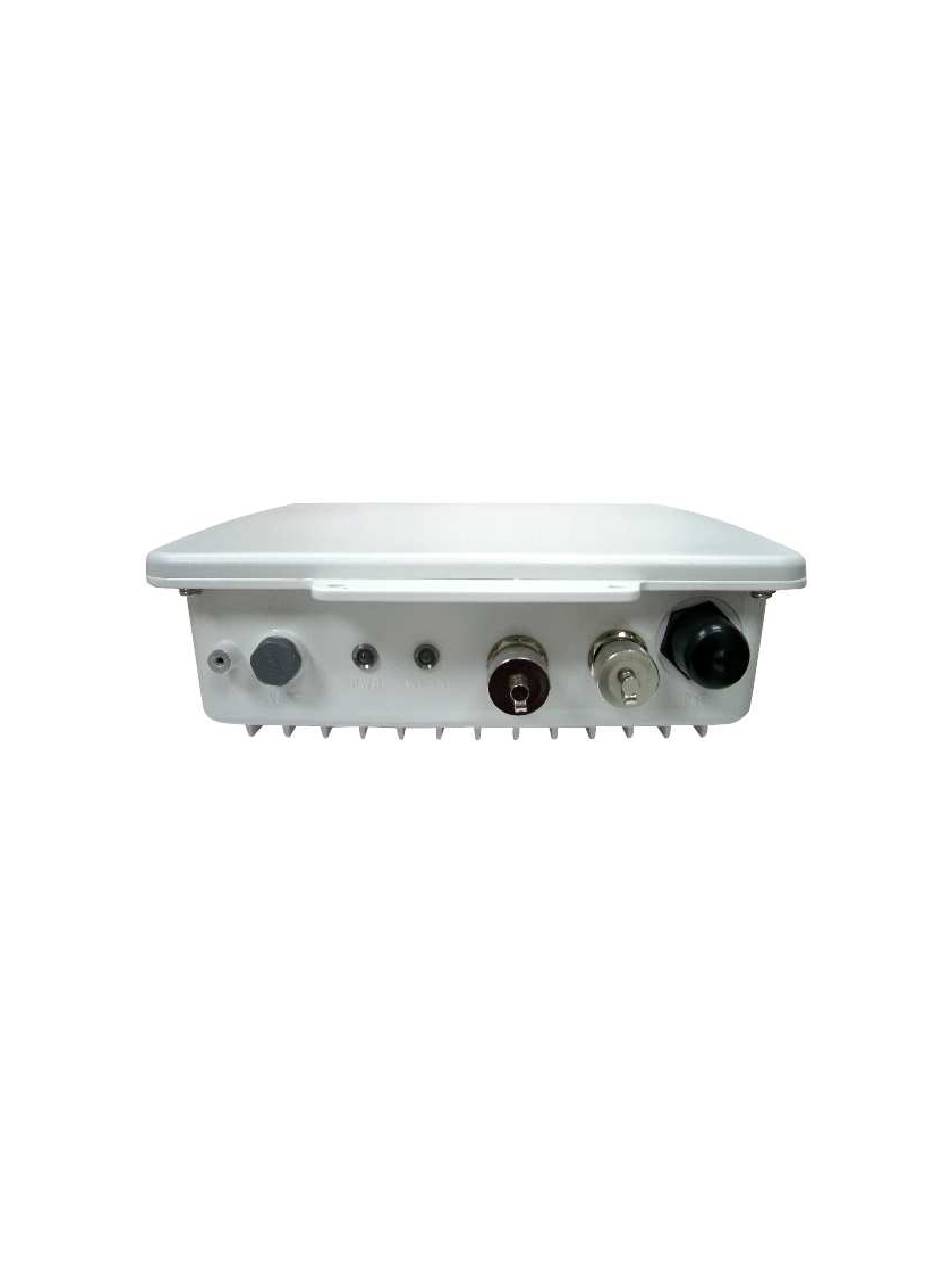

ONNECTION ARDWARE Front/ Interface View The figure below shows the LED Indicator of the Wireless LAN Access Point. POWER (PWR): This indicator lights green when the Access Point receives power. Otherwise, it turns off. WLAN: The indicator blinking blue whiles the wireless LAN activity. Rear/ Side view The figure below shows the rear panel of the Access Point The 4 holes at the rear of the Outdoor AP are designed for mounting brackets installation, which included... - Page 8 The PoE is to get power source over Ethernet connection, please unscrew the dust cap of the PoE outlet and plug your PoE power injector into position. Remove the dust cap RJ 45 Water-proof plug is included, please be advise that the Ethernet cable is not included for field installation.
- Page 9 The EXT outlet allows connecting to higher gain external antenna based on specific requirements. Unscrew the dust cap from the EXT outlet, and then you have to connect the cable to the EXT connector. About EXT connector: The EXT connector is designed with mechanical switch function that allows upgrading to higher gain external antenna for better transmission performance.
- Page 10 The optional extension cable is with built-in surge protector, comes with N-male to N-male connector interface, length 1meter long, please contact your local reseller or distributor for further product information IMPORTANT NOTICE The external connector for external antenna is with sophisticated mechanical switch inside; please DO NOT screw any extension cables onto this EXT connector if there are no external antenna connections.
- Page 11 Unscrew the dust cap from RESET button, and you can see a rod inside the Reset button; try to push the rod and the rod inside until the feel of the touch to the reset button VENT GORE Membrane Vent are used to enhance the ingress protection (IP) of gasketed enclosures Air and moister Out Prevent the entry of water and particles...
- Page 12 Hardware mounting instruction Pg 8 of 30...
- Page 13 Pg 9 of 30...
-
Page 14: Basic Ip Networking
IP N ASIC ETWORKING IP = Internet Protocol IP stands for Internet Protocol. In an IP network, every device has a unique IP Address (For example: 192.168.10.35) to identify itself. There are two ways of assigning an IP address to a PC or Router: Static and Automatic (DHCP). Static IP addresses are keyed-in manually, while Dynamic IP’s are distributed by a DHCP Server. - Page 15 SSID The SSID is the “network name” for the WLAN network. The SSID is any name, and can be any set of characters or numbers. The Client sniffs the radio frequencies for an AP with the same SSID with itself. The client locks onto the AP and they are “associated”.
-
Page 16: Getting Started
ETTING TARTED Connect the network as shown previously. If your PC is wireless, check the PC’s card utility to make sure that the signal strength is good and that the bottom LED lights up on the AP. Open a Web browser (Internet Explorer, Netscape etc.). Type the AP LAN IP (192.168.1.20) address into the browser’s Address field. -
Page 17: Basic Site Survey
Basic Site Survey Site Survey : Displays the MAC address, RSSI, SSID and the channel of other AP. Basic Administration This page allows you to change the Username and Password for admin user/end user. The default username is admin and password is admin. After every factory reset, the Username and Password reverts to this combination. To view/upgrade firmware version, you need to close this configuration page. -
Page 18: Basic Ip Configuration
Basic IP Configuration This page allows you to choose the type of IP Static IP mode: When you boot up the AP for the first time, it is in Static mode. You assign a Static IP to the AP. The default IP address, subnet mask and gateway mask are 192.168.1.20, 255.255.255.0 and 0.0.0.0. - Page 19 Operation Mode: TEW-455APBOoperates as Wireless LAN Access Point or Ethernet Bridge mode. Wireless Bridge is used when it is not advisable to lay an Ethernet line over a distance. Two AP’s can be set up to connect over this distance, acting as the wired backbone. SSID: Service Set Identifier.
-
Page 20: Advanced Security Setting
Advanced Security Setting This section allows you to configure wireless encryption to prevent unwelcome parties from reading your traffic. Authentication can also be configured to block outsiders from accessing your network. Disable: No wireless security. WEP: Select to apply WEP security. WPA-PSK: Select to apply WPA-PSK security. -
Page 21: Ascii Characters
Hexadecimal Characters: 0,1,2,3,4,5,6,7,8,9 and a,b,c,d,e,f ASCII Characters: 0,1,2,……8,9 and a,b,c,d,………x,y,z WPA-PSK Security PassPhrase: Key in the 8-64 character for PSK. Cipher Type: Choose Auto, TKIP or AES. WPA Security RADIUS Server IP: Enter the IP Address of the RADIUS Server (for 802.1x authentication purposes). This is used only when you have a RADIUS Server and want to use it for authenticating the Wireless Clients. -
Page 22: Advanced Mac Address Control
Advanced MAC Address Control This is only use when the AP is operating in the AP mode. MAC Address Control: Enable or Disable MAC addresses Control. MAC Address: Enter the MAC address of the client. Allowed MAC Address List: Reflects the MAC addresses of the clients that are allowed to associate with the AP. Advanced Protocol Filter Pg 18 of 30... -
Page 23: Advanced Snmp Configuration
Filter IPX Packet: Selecting this option will disallow all IPX packets to pass through. Wireless Isolation: Selecting this option will disallow wireless clients associated with this device to communicate with each other. Enable Broadcast Filter: Selecting this option will filter off out broadcast storm. Broadcast Number Allowed: Select a number in between 10 to 200. -
Page 24: Advanced Miscellaneous
Advanced Miscellaneous Enable Telnet: Disable/enable Telnet access to this device. Save configuration to local device: After you have successfully configured the AP, you can save this “Good Config” into device memory. Restore configuration from local device: To retrieve previous “Good Config” to restore the AP back to the working setting that was previously saved. -
Page 25: Status System Status
Status System Status This page presents a convenient overview of the overall status of the AP. The most common configuration parameters are shown here, for a quick look Status Association Status This page presents an overview of the MAC address and Signal Strength of all clients connected to the AP through Ethernet or wireless. -
Page 26: Firmware Upgrade
Status Firmware Upgrade This page allows you to update the firmware (software) in the AP. New firmware are issued to improve the performance and add features to the product. The new firmware will be name “apimg1”. Save the file in your PC. Browse to the file with the name “apimg1”. -
Page 27: Outdoor Ap Utility Installation
AP U UTDOOR TILITY NSTALLATION Introduction The Outdoor AP utility is an easy-to-use software that allows an Administrator to quickly configure the AP at first boot-up. The QS Utility only communicates with authorized Access Points and Bridge. The Utility allows the devices to be monitored and configured even if they all have the same default IP Address at first boot-up after installation. - Page 28 Step two Click Next to accept the default installation directory. If you wish to change the installation directory, click on the Change button to select a new directory. Pg 24 of 30...
- Page 29 Step three Click Install to do the actual installation Pg 25 of 30...
- Page 30 Step four Click Finish to exit the installation wizard. Pg 26 of 30...
-
Page 31: Outdoor Ap Utility User Guide
AP U UTDOOR TILITY UIDE Outdoor AP Utility Icon Click on the desktop icon Outdoor AP Utility to start the application. Parameters Display in Utility The Utility displays the following parameters that can be changed. IP Address Subnet Mask Gateway Device Name Channel DHCP/Static IP... - Page 32 Making Changes The changes are directly applied in the Utility. It does not matter if all the devices have the same IP Address. The QS Utility identifies them uniquely by their MAC Addresses. Updating Changes After the necessary changes have been made, the Administrator can apply the changes to the AP. Check on the Reboot Checkbox and click on the Update button to reboot the device.
-
Page 33: Professional Installation Instruction
Please refer to user’s manual for the detail. 3. External antenna, Use only the antennas which have been approved by RFNet Technologies Pte Ltd. The non-approved antenna(s) may produce unwanted spurious or excessive RF transmitting power which may lead to the violation of FCC limit and is prohibited.
