Totem Compass Gen 1 Manual

Introduction

Totem is dedicated to making live events safer, more immersive, and more beautiful.

Please read this manual before using your Totem Compass, and keep it for future reference.

This Package Contains

One (1) Totem Compass
Two (2) elastic Lanyards
One (1) USB-C Cable

Your Totem Compass

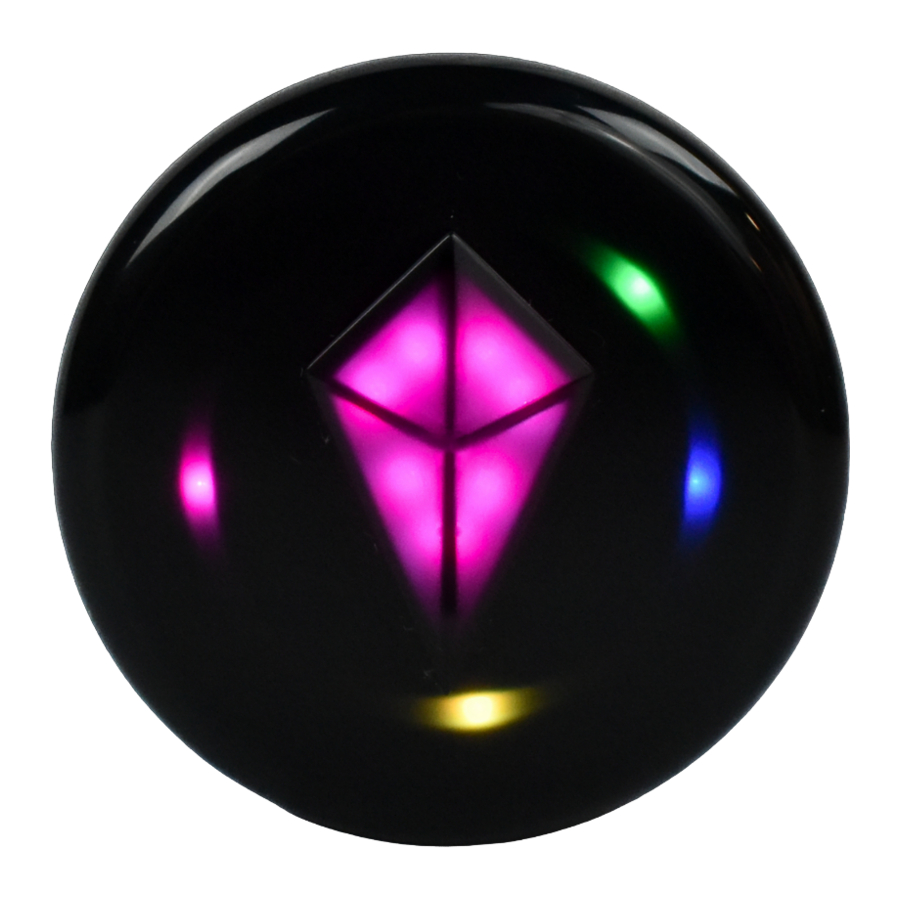

Touch Crystal & Halo

Buttons & Ports

Vibe Mode

(vertical orientation)

Available Features:

• Vibe
• Send SOS Alerts
• Receive SOS Alerts
• Adjust Brightness

Compass Mode

(horizontal orientation)

Available Features:

• Bonding
• Navigation
• Send SOS Alerts
• Receive SOS Alerts
• Bond Removal
• Adjust Brightness
• Change Crystal Color

Get Started

Power On & Off

To Power On:

1. Click Power Button once


To Power Off:

1. Press and hold Power Button while device is powered on


Your Totem on Power Up

When your Totem powers on, the Halo displays a Battery Level Indicator:

• Full Green Halo = 100%
• Yellow Half-Filled Halo = 50%
• Yellow Quarter-Filled Halo = 25%
• Red, Flashing Touch Crystal = Low Battery

Establish Satellite Connection

1. Go outside and make sure you have a clear view of the sky overhead with horizon in view
2. Step away from roofs, walls, and other large structures
3. Wait 10-15 minutes for your Totem to establish Satellite Connection*

*Enable Eco Mode to speed up satellite connection process

Bond your Totems

1. Hold two Totems together in Compass Mode.
2. Press and hold both Touch Crystals simultaneously.


When Bonding is successful:

1. The blue light on your Totem's Halo will change to the color of your new Bond.
2. The Halo will collapse into a single LED


Note: Your Totem Compass will always remember Bonds unless you remove them

Navigate

1. Establish Satellite Connection
2. Move 20 meters away from Bonded peer
3. Hold Totem in Compass Mode and spin in a circle once to calibrate
4. Follow the direction of Bond Light on Halo
5. As you move toward Bonded peer, Bond Light will spread then collect into Touch Crystal

Note: If you or a Bonded peer are out of peer-to-peer range, your Bond Light will begin to "breathe", indicating stale location data

Additional Features

Send an SOS Alert

To send SOS Alert:

1. Press and hold SOS Button until red light behind button begins to blink


When Bonded peer receives SOS Alert:

1. Their Touch Crystal will blink "SOS" in morse code; Bond Light will blink rapidly when Totem is in Compass Mode


To disable SOS Alert:

1. Press and hold SOS Button until red light stops blinking


Bond Lights & Colors

Bond Light colors are automatically assigned to peers based on Bonding order:

• First Bond = pink
• Second Bond: green
• Third Bond = blue
• Fourth Bond = yellow

To check colors of Bonded peers:

1. Move Totems together
2. Touch Crystal will display color of Bonded peer

Remove Bonds

1. Triple-tap Touch Crystal while Totem is in Compass Mode
2. Single-tap Touch Crystal to cycle between Bonded peers
3. Press and hold Touch Crystal to remove selected Bond


Note: Bonded peers that you remove will no longer be able to track you in real-time.

Brightness Settings

Your Totem has 3 brightness settings that impact battery life:

1. Day Vibe (10+ hours)
2. Night Vibe (14+ hours)
3. Eco Mode (24+ hours)


To toggle between brightness settings, click the Power Button once while your Totem is powered on.

Touch Crystal Colors

Touch Crystal colors are for aesthetic purposes only and do not correlate to Bond Light colors.

To change your Touch Crystal color:

• Enter Compass Mode
• Single-tap Touch Crystal to change color
• Continue tapping Touch Crystal to cycle through twelve different colors

Available Crystal Colors

Software Updates

Totem releases periodic, free Software Updates downloadable straight to your device.

Remember to update your Totem Compass before you leave for any outdoor event.

scan to download software update

Support & Troubleshooting

If you encounter an issue with your Totem Compass, ensure you have updated your device to the latest software version.

For all Totem Compass Resources & Support, scan the QR code below:

scan for resources & support

Care & Maintenance

Handling & Storage

• Handle with care and store in a soft pouch or case when not in use.
• Avoid placing the device in pockets or bags with sharp objects.

Water Resistance

• The Totem Compass can withstand light rain and splashes but should not be submerged in water.
• Dry immediately if exposed to moisture.

Charging

• Ensure the charging port is free of dirt or moisture before connecting.

Cleaning

• Fingerprints and smudges may appear on the surface. Use a soft, dry microfiber cloth to gently wipe the device.
• For deeper cleaning, use a slightly damp cloth with water or mild soap. Avoid harsh chemicals or abrasive materials.

Environmental Care

• Prolonged exposure to direct sunlight or extreme temperatures may affect battery performance and device longevity.
• Keep the device away from excessive dust, sand, or debris, especially in outdoor environments.

Conditions for Use

• Use the device outdoors in open areas with a clear view of the horizon to maintain a reliable Satellite Connection.
• Keep the device at least one foot away from smart phones, iron-based objects or heavy metal structures, as these can interfere with accuracy and satellite connection.
• Protect from shock or hard impact.
• Do not modify or disassemble.
• Do not expose to open flames, submerge in water, or use underwater.

Battery Life & Range

Maximum Battery Playtime*:

• Day Vibe: ~10 hours
• Night Vibe: ~14 hours
• Eco Mode: 24+ hours

Charging Time:

• Charges in ~45 minutes via standard USB-C
• Charging Light turns green on full charge

Range:
Peer-to-peer range is ~1 kilometer, but Unity Mesh Network™ extends that range for all Totems in the network.

*Battery Playtime may vary based on environmental conditions and usage. Battery life is subject to continued improvement.

Performance Variables

The Totem Compass leverages Global Navigation Satellite Systems (GNSS) to provide accurate positioning and navigation. However, several factors can influence its performance:

Environmental Obstructions: Physical obstructions such as dense foliage, tall buildings, or mountainous terrain can cause signal reflection or blockage, leading to multipath errors and decreased positional accuracy.

Atmospheric Conditions: Variations in the Earth's ionosphere, particularly during solar flares and geomagnetic storms, can disrupt GNSS signals.

Solar Activity: Elevated solar activity can induce scintillation events in the ionosphere, degrading the quality of satellite signals. In standard GNSS receivers, mild scintillation can reduce position accuracy by several meters, while severe scintillation can cause signal loss.

Weather Conditions: Adverse weather can have minor effects on the strength and quality of GNSS signals, potentially impacting the device's performance.

Electromagnetic Interference: Proximity to strong electromagnetic sources or environments with high radio frequency interference can disrupt GNSS signal reception, leading to potential inaccuracies.

Technical Specifications

Model: Totem Compass Gen 1

Power Adapter Charging Voltage: 5V

Max Charging Current: 1A

Battery Type: LiPo ion

Battery Capacity: 1000 mAh

Wireless Frequency/Protocol: 2.4GHz

Charging Port: USB type C

Operating Temperature: -10°-60°C / 14°-140°F

Housing Material: MABS

Size: 58x58x24 mm/ 2.28x2.28x0.95 in

Weight: 54.17g/0.119lb

Safety Features: Over-voltage and under-voltage protection to ensure safe operation within the specified voltage range.

• Thermal shutdown prevents the device from overheating during high-stress conditions
• Designed with safeguards to prevent damage from short circuits

Lanyard Material: 100% polyester braided around a core of 10 natural latex threads

Lanyard Relaxed Size: 360 x 2.5 mm

Lanyard Stretched Size: 620 x 2.5 mm

Lanyard Weight: XXX
[include USB-C cable specs [length, max current]
