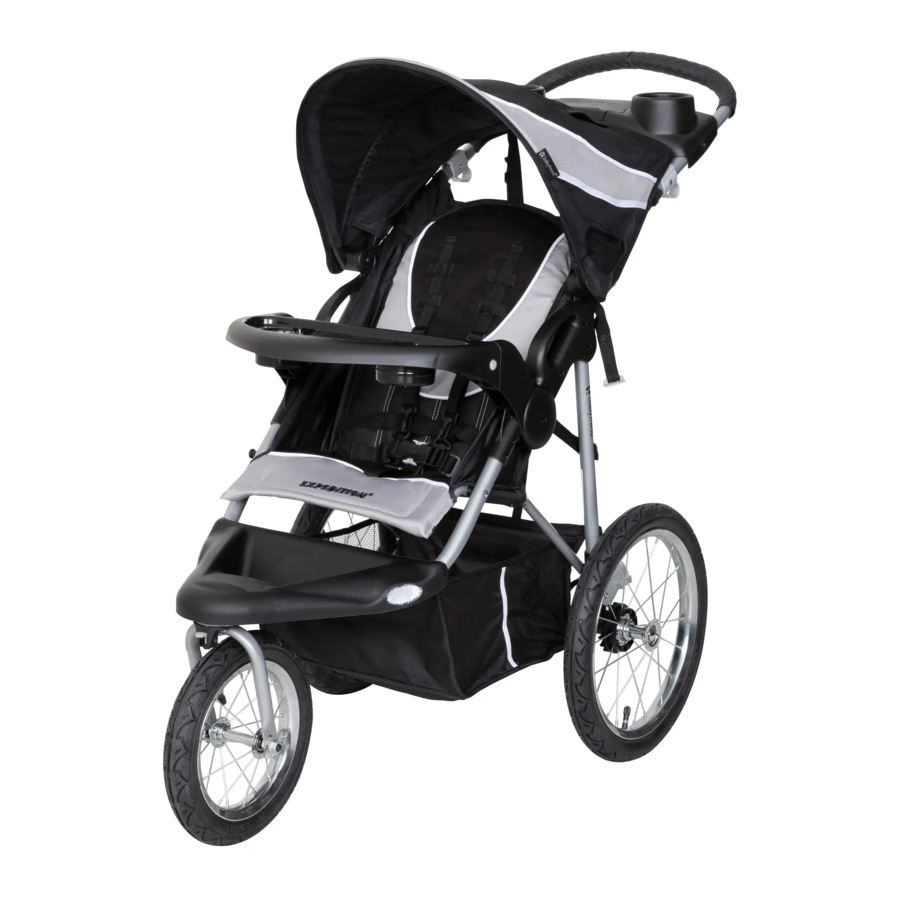

Baby Trend Expedition Jogger, JG94 Series Manual

PARTS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Check that you have all the parts for this model before assembling the stroller.

* Wheel styles may vary*

SAFETY WARNINGS

Please follow all of these instructions to ensure the safety of your child. Keep these instructions for future reference.

Failure to follow these instructions could result in serious injury or death. Avoid serious injury from falling or sliding out. Always use the safety harness and insure that the children are properly positioned according to these instructions.

To avoid injury ensure that the child is kept away when unfolding and folding this product.

Never leave the child unattended.

Wheel can detach and cause tip over. Pull on the wheel to assure it is securely attached.

Ensure that all locking devices are engaged before use.

Do not let the child play with this product.

This product is not suitable for running or skating.

This seat unit is not suitable for children under 6 months.

Always use the restraint system.

Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.

This stroller is designed for one child only. Use with more than one child may cause the unbalance condition which can injure/harm your child.
Purses, shopping bags, parcels, diaper bags or accessory items may change the balance of the stroller and cause hazardous unstable conditions.
The maximum weight that can be carried in the basket is 2.26 kg, child tray and parent tray are 1.36 kg each. If equipped, the maximum weight can be carried in the side pockets (2) is 1.36 kg, back pockets (2) is 1.36 kg and canopy pockets is (2) 0.45 kg. Excessive weight may cause a hazardous unstable condition to exist.
Be certain the stroller is fully erect and latched in the open position before allowing the children near the stroller.
This vehicle can be used with children weighing up to 22 kg or 4 years whichever comes first.
NEVER use the stroller on stairways or escalators.
NEVER use the stroller with roller skates, in-line skates, skateboards or bicycles.
Children must be at least 6 month of age and be able to sit upright unassisted to use this product.
NEVER allow your stroller to be used as a toy.
To clean use only mild household soap or detergent and warm water on a sponge or clean cloth.
Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or repair parts as needed.
Discontinue use of stroller should it malfunction or become damaged. Accessories which are not approved by the manufacturer shall not be used. Only replacement parts supplied or recommended by the manufacturer/distributor shall be used. Please contact our customer service to obtain replacement parts.
Product Conforms to EN 1888-2:2018+A1:2022 Standard.

To ensure safe operation of your product, please follow these instructions carefully. Please keep these instructions for future reference.

Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. NEVER use if any parts are missing or broken.

Adult assembly is required.
Remove stroller from box. The front wheel, rear wheels, fender, and parent tray need to be installed prior to use.

ASSEMBLY

FRONT WHEEL

This wheel utilizes a front wheel double nut locking system. Please follow all of these instructions to ensure the safety of your child. Failure to follow these instructions could result in serious injury or death.

To attach the front wheel, unfold stroller as described in the section following:

Lean the stroller backwards so that it restson the handle and rear axle frame and the front wheel forks are pointing upward (Fig.1).
Slide the front wheel onto the front forks (Fig. 2).
Slide the retainer plate onto the front wheel. Be sure that the raised lip is pointing! toward the fork and insert it into the slot on the fork. The tab on the retainer plate must be lined up with the slot before tightening the wheel (Fig. 3).
With the wheel in position, install the axel nuts and tighten with standard crescent, box, or open end wrench. You should feel significant resistance and the wheel should be held tightly in place (Fig. 4).

TESTING FOR PROPER WHEEL INSTALLATION

Always check the double nut locking system before each use to ensure that the front wheel is securely fastened to the frame.

Lift the front wheel off of the ground and sharply strike the top of the tire (Fig.5).

The wheel should not be loose or come off.
If you experience front wheel wobble that is beyond what is normal for use while walking, you may have to adjust the front wheel housing nut. This nut is located under the footrest located at the -front of the vehicle (Fig. 6).

You can use a standard crescent wrench to tighten the nut. DO NOT OVER TIGHTEN this can cause damage to the wheel housing.

FENDER

To secure the fender to the frame, use the 4 screws provided.

- Examine the bottom of the front fender. You will notice four 1/4 inch diameter lastic tubes protruding from the bottom (Fig. 7a).
- These tubes must be lined up with the holes in the front frame assembly (Fig. 7b).
- Line up the front fender and press onto the front frame assembly (Fig. 7c).
- Insert the 4 screws through the underside of the front frame assembly into the front fender's plastic tubes, Tighten the screws only until snug (Fig.7d).

DO NOT OVER TIGHTEN.

REAR WHEEL

- Lean the stroller forward to rest on the front wheel. To attach the rear wheels, push each wheel's axle into the plastic comer fitting as shown in (Fig. 8).

  Depress the metal lever on the inside of the corner fitting as you push the axle into corner fitting. When the wheel will not go on any farther, release the lever. Check that the wheel has locked into the comer fitting by pulling on the wheel. If not locked, lift upward on the lever, push the wheel on farther and release lever.
- Ensure that the wheels are firmly locked into place. NEVER use the stroller if the wheels are not locked into place, contact our customer service department immediately at customerservice@babytrend.com, between the hours of 8:00am and 4:30pm PST, for assistance.

PARENT TRAY

Do not place hot liquids or more than 3 pounds in the parent tray. Serious burns or unstable conditions could result.

To attach the parent tray, align the fittings on the ends of the parent tray with the fittings on the outsides of the handle. Hook the hole in the parent tray. Pull outward on the opposite end while pushing down on the tray until locked onto the stroller handle. Please be careful not to pinch your fingers when installing the parent tray (Fig. 9).

To remove the parent tray, pull outward on one end of the tray while lifting upward.

CANOPY

To open the canopy: push forward on the front edge of the canopy while holding the rear of canopy in place (Fig. 10).
To fold the canopy: pull backwards on the front edge (Fig. 11).

CHILD TRAY (if equipped)

To attach the child tray: Insert the tray clip into the fitting on the stroller's fold joint. Check the tray clip locks into place. (Fig. 12a)

Push the angled tray onto the post at the end of the right armrest, while pressing downward on the snap button, until locked into place. Rotate the tray downward until latched onto the left armrest. Please check that the snap button comes through and securely latches the tray in place (Fig. 12b).
- To access the child seat: press inward on left side tray release button and rotate upward on the tray (Fig. 13a).
- To remove the child tray: Press the release button and rotate the tray 180 degrees and pull the tray until it released (Fig. 13b).

BRAKES

Always ensure parking device is engaged when placing and removing the children.

Always set brakes when the strollers not being pushed so that the stroller will not roll away. NEVER leave stroller unattended on a hill or incline as the stroller may slide down the hill.

To engage brakes, apply light downward pressure to the brake lever located on each rear wheel. The stroller may requires light forward or rearward movement in order to line up the teeth on the brake with each wheel brake cluster (Fig. 14).

NOTE: Check that the stroller will not move and that both brakes are properly applied. To release, gently lift up on the brake lever.

FRONT WHEEL LOCK

Always lock the front swivel wheel in STRAIGHT position before placing or removing the child.

The swivel wheel is equipped with a front wheel locking device. Front wheel lock works in a vertical motion from top to bottom, locking and unlocking the wheel (Fig. 15).

TO SECURE THE CHILD

Avoid serious injury from falling or sliding out. Always use the safety harness.

STRANGULATION HAZARD: Child can strangle in loose straps. Never leave child in seat when straps are loose or undone.

- The child tray is not designed to hold the child in to hold the child in the stroller. Stay near and watch child during use. NEVER leave the child unattended.
- Place the crotch strap tween your child's legs. Insert the Harness Buckles into the Center Clasp with the Button
- Adjust waist straps for your child's comfort and safety by sliding buckles in either direction. Safety Straps are to fit snug around your child (Fig. 16)

TO RELEASE SAFETY BELT

Push Button on Center Clasp, the four Harness Buckles will pop free (Fig. 17).

SEATBACK POSITIONING

The seat has a multiple position recline that is controlled by a strap and buckle assembly behind the seat (Fig. 18a).

To recline the seat, loosen the strap through the buckle and adjust to the required recline position (Fig. 18b).

To place the seat back in a more upright position, press upward on the seat back with one hand while pulling the strap through the buckle with the other. The strap will lock automatically.
The upright position should be used only for a child that is at least 6 months old. Always re- adjust the safety harmess, including the shoulder belts, when repositioning the seatback.

Never jog or run with this product. Use for strolling only.

TIRES

Tires are shipped un-inflated. The tires should be inflated on a regular basis to between 20 to 25 p.s.i. Always use a bicycle style hand air pump to inflate the tires.
TIRE PUMP (if equipped): air hose from end of pump, thread small air nozzle tip onto valve stem of rim, now you're ready to pump up your tires (Fig. 19).

Hold the body of Tire Pump and pull back on the handle, press down on handle pushing air into tire. Repeat until tire is at 20 p.s.i.

TO FOLD STROLLER

Care must be taken when folding the stroller to prevent finger entrapment.

Do not allow children near stroller while folding.

- Close the canopy as described in the canopy section. Recline seat by releasing buckle as described in seatback positioning section.
- Fold the stroller by unlocking the latch and pulling simultaneously both release triggers (Fig. 20a).

  Release the fold latches and pull on the stroller handle until the stroller is completely folded. Secure the stroller in the folded position by locking the fold latch, located on the right side of the stroller, over the rivet that protrudes from the frame (Fig. 20b).

TO UNFOLD STROLLER

Care must be taken when unfolding the stroller to prevent finger entrapment.

Do not allow children near stroller while unfolding.

- Stand the stroller on the ground with all three wheels touching the ground. Release the folding latch, which is located on the right side (Fig. 21a)
- Lift up on the stroller handle with both hands until the stroller frame is erected and locked in the open position (Fig. 21b).

  The stroller has spring-loaded latches on both sides of the frame.

warning NOTE: Test that both latches are fully engaged prior to placing your child in the stroller.

MAINTENANCE

WHEEL ADJUSTMENT

It should be noted that all three wheel vehicles can be easily influenced to deviate from a straight line. In most cases strollers can have a tendency to pull to the right/left due to many factors. Including uneven tire pressure, improper wheel installation, road conditions and manufacturing tolerances. If you find your Baby Trend stroller to significantly track or pull to the left or right while use on flat terrain, follow the sequence of the instruction realign your front wheel.

FLAT TIRE

The stroller features bicycle tires to allow for extended wear and ease of pushing. Just like a bicycle tire, the stroller can suffer from flat tires. If you have a flat tire, you can use a standard bicycle tire repair kit to repair the tire or you can take the tire to a bicycle shop for repair. If you experience numerous flat tires, you may want to purchase thorn proof inner tubes for the stroller. These can be purchased at bicycle stores or at many national retail stores. The correct size to purchase is shown on the sidewall of the tire.

BABY TREND® CUSTOMER SERVICE

The Customer Service Department can be contacted at customerservice@babytrend.com (PST).
Return Authorizations are required prior to returning product(s) to Baby Trend®.
