Summary of Contents for Numatic AIRBO NED570

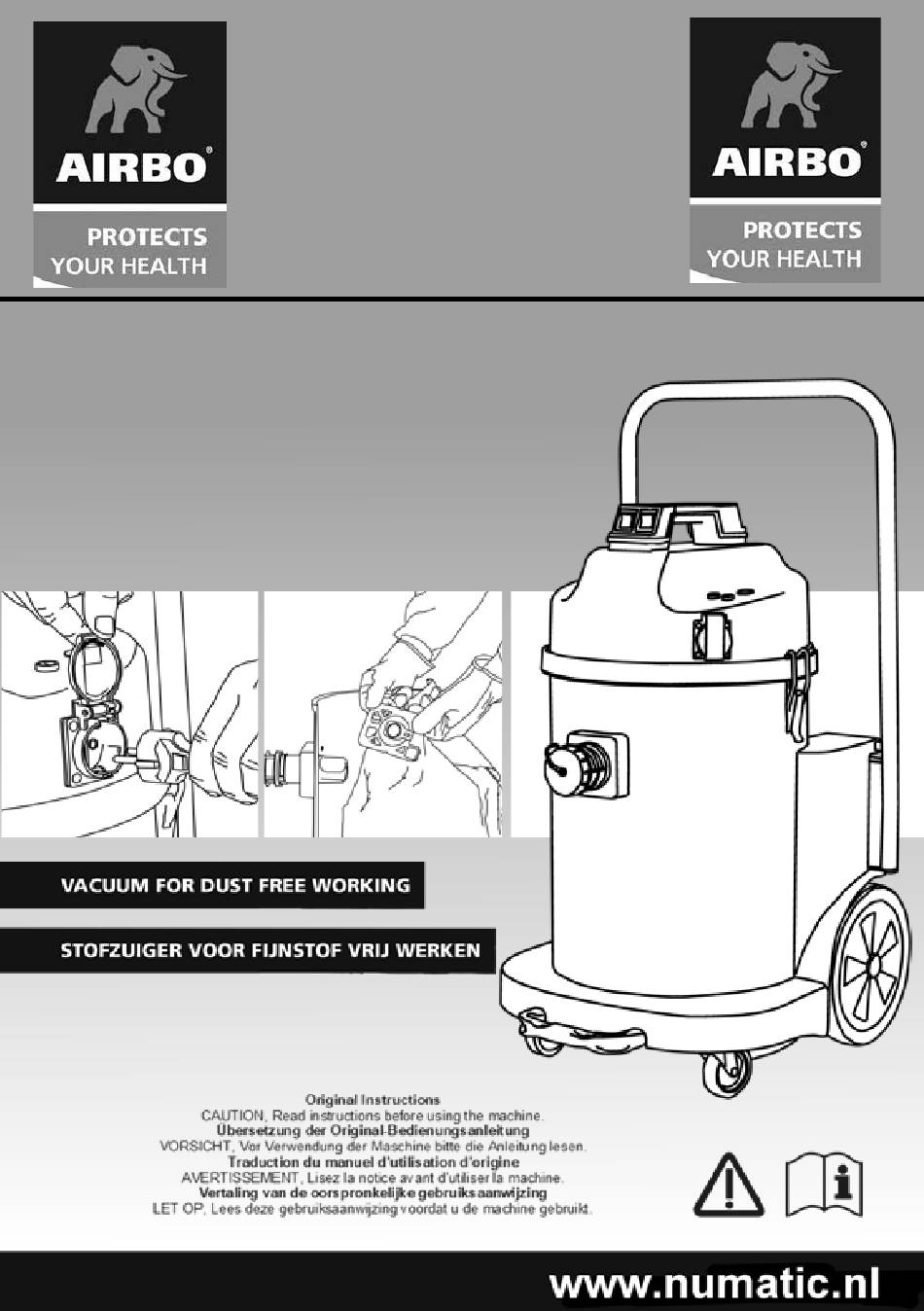

- Page 1 AIRBO NED570 AIRBO NED900 AIRBO NED570A AIRBO NED900A AIRBO NES570A GB, DE, FR, NL VA C U U M M A C H I N E...
-
Page 2: Please Read
KIT BS30 PLEASE READ BEFORE COMMENCING OPERATION This machine is suitable for DRY use only. Make sure that the filtration system fitted to the machine is suitable for the material being collected. Assembly - Zusammenbau - Assemblage - Samenstelling... - Page 3 Handle Fitting Instructions Anbringen des geraden Bügelgriffs Instructions de montage de la poignée droite Montage Instructie voor rechte handel...
- Page 4 Assembling the machine Montage der maschine Montage de la machine Machine samenstellen / opbouwen 50mm...
- Page 5 Machine Function Funktionen des Geräts Fonction de la machine Machine Functies PLEASE READ BEFORE COMMENCING ANY OPERATION AIRBO NED570 On / Off AIRBO NED900 AIRBO NED570A On / Off Auto / Manual Switch AIRBO NED900A AIRBO NES570A NED-A 2200W Maximum Load (min. 100W).
- Page 6 Fuse Sicherung Fusibles Zekeringen ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF BEFORE MAKING ANY ADJUSTMENTS AIRBO NED570A AIRBO NED900A AIRBO NES570A 2 x Fuses European Your machine comes fitted with fuses to protect it. If the machine fails to start after it has been reset check the fuses. To examine or change the fuses, apply pressure to the top of the fuse holders and twist to release the fuse carrier and fuse.
- Page 7 Warning Light Warnleuchte / Lo-Flo-Anzeige Voyant d’alerte/Indicateur de faible écoulement Waarschuwingslamp Lo - Flo Indicator. Slow Repeated Flash. This indicates that your filter bag has become full. Please Change the Bag. Constant Red Light. This indicates a possible machine fault or that the Auxiliary socket has become overloaded. Switch off the machine to reset it.
- Page 8 Changing the Bag Auswechseln des Beutels Remplacement du sac Vervangen van de zak...
- Page 9 Make sure the filter bag tab is trapped between the filter and the drum...
- Page 10 Bags and Filters Beutel und Filter Sacs et filtres Stofzuigerzakken en filters 570 - 23L 900 - 40L Drum Size Drum Size Hepaflo Bag + Permatex Filter Trommelgröße Trommelgröße Taille de cuve Taille de cuve Grootte stofbak Grootte stofbak 3BH = HepaFlo Bags 4BH = HepaFlo Bags Microflo Bag + Microtex Filter 3BM = HepaFlo Bags...
-
Page 11: Rating Label
Caution Floor Sign Protection NOTE: A risk assessment should be conducted to determine which PPE should be worn. Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline +44 (0)1460 269268... - Page 12 Keep diff user fi lter (where fi tted) clean. • Use fi lter bags, they will enhance performance and help keep machine clean. • Use a Numatic Original fi lter bag under fi ne dust conditions. • Keep hoses and tubes clear. •...
-
Page 13: Wartung
(DE) Angaben zum Gerät Sicherheitsrelevante Produktplakette Bestandteile Name und Adresse Unternehmen Stromversorgung: H07BQ-F 10m x 3 Core x 1.5mm² Machine Description SICHERUNG 10.0 AMP SICHERUNG Nennspannung, Frequenz Leistung NED570 & NED900 Gerät Jahr/Woche Seriennummer Unsicherheit 570A NED570A (Nutz-) Gewicht & NED900A WEEE Logo 80.5... - Page 14 Halten Sie die Filter sauber. • Verwenden Sie Filterbeutel. Sie verbessern die Leistung und helfen, das Gerät sauber zu halten. • Verwenden Sie bei Feinstaubeinsatz originale Numatic-Filtearbeutel. • Halten Sie Schläuche und Rohre sauber. • Ersetzen Sie abgenutzte oder beschädigte Teile unverzüglich.
-
Page 15: Plaque Signalétique
(FR) Sur la Machine Composants de sécurité Plaque signalétique critiques Nom et adresse du fabricant Câble d’alimentation: Machine Description H07BQ-F 10m x 3 Core x 1.5mm² FUSIBLES 10.0 AMP FUSIBLES Tension d’alimentation, Fréquence NED570 Puissance & NED900 Incertitude Numéro de série année semaine 570A NED570A &... - Page 16 Remplacer immédiatement toute pièce usée ou endommagée. • Examiner régulièrement l’état du cordon d’alimentation. Celui-ci devra être remplacé à la moindre détérioration, par un câble d’origine Numatic et par une personne compétente. • Remplacer fréquemment le sac fi ltrant, ne pas attendre la saturation de celui-ci.
- Page 17 (NL) Over de Machine Belangrijke Type plaatje veiligheidscomponenten Fabrikant Snoer: Machine omschrijving H07BQ-F 10m x 3 Core x 1.5mm² ZEKERINGEN Voltage, Frequentie 10.0 AMP ZEKERINGEN Vermogen NED570 & Jaar-week-serienummer NED900 Marge 570A NED570A Gerwicht & NED900A WEEE Logo Gelu- 80.5 87.5 +/- 0.5 idsver-...
- Page 18 De fi lters schoonhouden. • Filterzakken gebruiken, hierdoor presteert de stofzuiger beter en blijft langer schoon. • Bij het opzuigen van fi jn stof een originele fi lterzak van Numatic gebruiken. • De buizen en slang schoon en vrij van verstopping houden. •...
- Page 19 NES RANGE NED RANGE NED-A RANGE...
- Page 20 Data, Daten, Caractéristiques, Data Data, Daten, Caractéristiques, Data NES570A 620 W 23 L 15.26 Kg 80.5 dB (A) 72.5 dB (A) +/- 0.5 dB NED900 620 W x 2 40 L 24.05 Kg 87.5 dB (A) 79.5 dB (A) +/- 0.5 dB 26.4 m 620 W x 2 23 L...
- Page 21 NES570A, NED900, NED570A & NED900A AIRBO style machines: This vacuum cleaner is intended for indoor use in the extraction and collection of dry materials. Not suitable for the collection of biological hazards, or explosive dusts. Do not use in wet environments or to collect wet materials. NED570A &...
- Page 22 Notes ............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 24 Alphen aan den Rijn, NEDERLAND This Product has been comprehensively inspected and checked during every stage of its manufacture. including an in-depth electrical safety and functionality test. Specification subject to change without prior notice www.numatic.co.uk © Numatic International Limited 918268 10/23 (A01)
