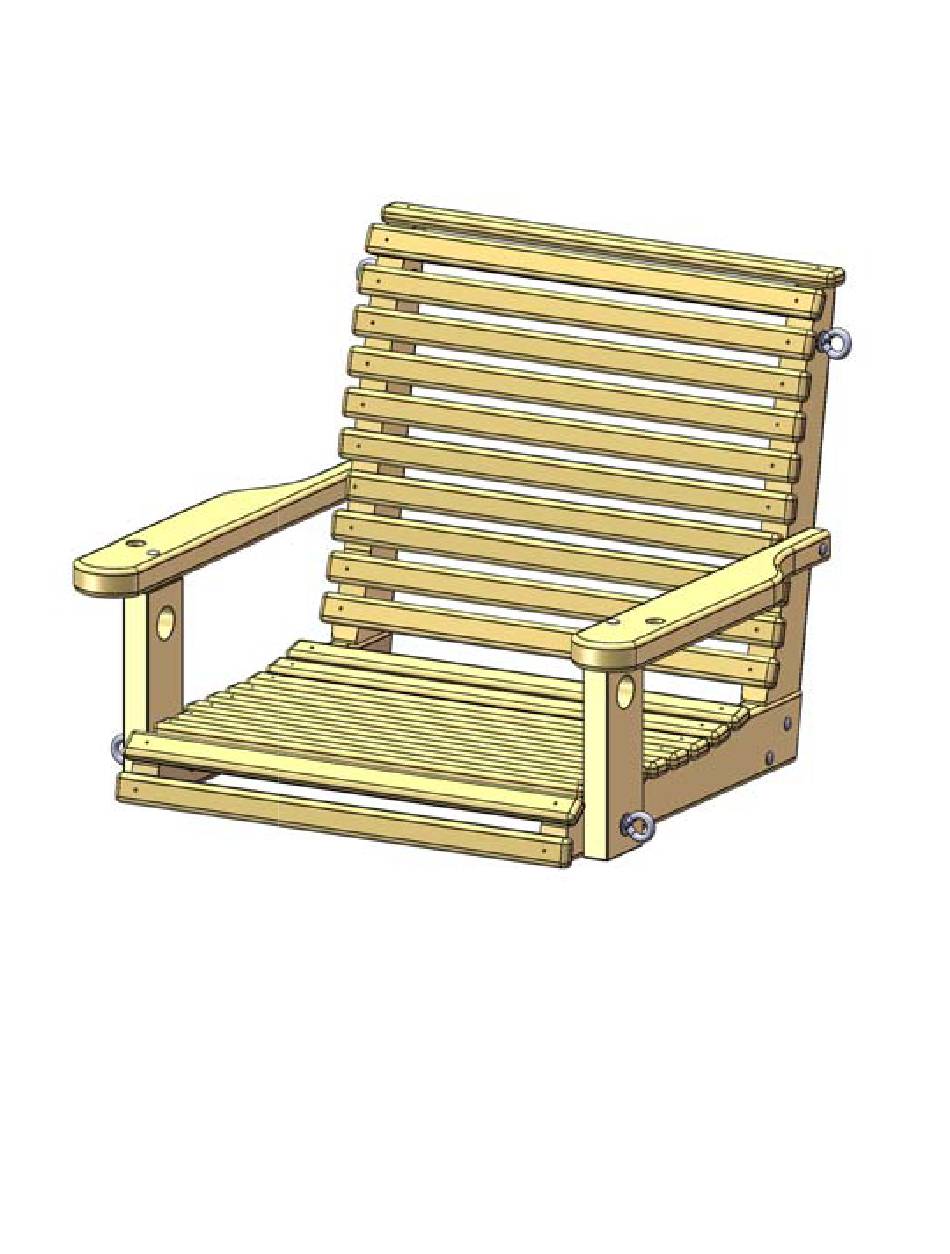

- Page 1 (04-0019) Babysitter Swing -FOR RESIDENTIAL USE ONLY- Copyright © 2023 Backyard PlayNation, LLC All Rights Reserved 166 Etowah Industrial Ct. *51-0019* Canton, GA 30114 51-0019 REV: 4-13-2023...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Guidelines….......……………………………………..……..Pages 3-6 Tool List and Kit Contents…………..………………………………………....Page 7 Dimensions, Hardware and Lumber Checklist...………………………..…..Pages 8-10 Seat to Back Assembly……………………..………...…..........Step 1 Armrest Assemblies……………………...…………………………....……..Step 2 Armrest Assemblies to Seat Back...……………….…………...…......Step 3 Eyebolts.......………………...…..……..……...…....……..Step 4 Quick Links....................... Step 5 Chains........................ -
Page 3: Important - Please Read
IMPORTANT – PLEASE READ Should your wood be damp lay all the parts out on a table and leave them in a covered area to air dry before staining or painting. Stain should be rated for outdoor use such as the stain used for outdoor decks and outdoor furniture. -
Page 4: Safety Guidelines
Important Safety Guidelines This product is intended for residential use only and not intended for use in any public setting. A safety surface such as mulch or shredded recycled tires should be used under the product to prevent injury from falls. As with any home project, good judgment and respect for power tools will greatly reduce the risk of injury. - Page 5 Maintenance Guidelines This product should be inspected on a regular basis. If any of the following conditions are noted, they should be removed, corrected, or repaired immediately to prevent injuries: • Hardware that is loose, worn or that has protrusions or projections. •...
- Page 6 PLAYGROUND SURFACING MATERIALS SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK Select Protective Surfacing One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing under and around your play equipment.
-
Page 7: Required Tool List
REQUIRED TOOL LIST: ___ 10mm Box End Wrench or Adjustable Wrench ___ 9/16” Wrench ___ 7/16” Box End Wrench or 7/16” Closed end wrench (12 point). ___ Locking Pliers (Vise Grips) may be required ___ Screwdriver (Flat or Phillips for holding eyebolts when tightening nuts) KIT CONTENTS: Swing parts and accessories: ___ (Qty ) Description... - Page 8 04-0019 Babysitter Swing Dimensions 4 " 8 " " 8 " 16 " " " 16 " "...
- Page 9 11-2029 Babysitter Swing Hardware REV B: 4/11/2023 JH 11-3609 3/8" X 4" EYE BOLT QTY: 2 11-3610 3/8" X 5" EYE BOLT QTY: 2 11-3398 1/4" X 2" CARRIAGE BOLT QTY: 4 1341Z 11-3399 1/4" X 3" CARRIAGE BOLT QTY: 4 1/4"...
- Page 10 PICTURE DESCRIPTION QTY. CHECK TIGHTNESS OF SCREWS BEFORE ASSEMBLY BACK (4 HOLES IN SIDES) 4-2375-2333-BA CHECK TIGHTNESS OF SCREWS BEFORE ASSEMBLY SEAT (3 HOLES IN SIDES) 4-2375-2229-SA ARMREST 2-4-2238-AR ARMREST SUPPORT 2-4-0938-AS 34" aproximately CHAIN 59" approximately ASSEMBLIES (IN BAG) s-hook 11-2028 22"...
-
Page 11: Seat To Back Assembly
STEP 1: SEAT TO BACK ASSEMBLY 1: LINE UP THE HOLES IN THE BACK WITH THE HOLES IN THE SEAT. 2: PLACE A 1/4" X 2" CARRIAGE BOLT INTO EACH HOLE AND SET IT WITH A HAMMER. 3: FASTEN THE BACK TO THE SEAT WITH 1/4" WASHERS, 1/4" LOCK WASHERS AND 1/4" NUTS. -
Page 12: Armrest Assemblies
STEP 2: ARMREST ASSEMBLIES 1: LINE UP THE SMALL HOLE IN EACH ARMREST WITH THE SMALL HOLE IN THE ARMREST SUPPORT. 2: PLACE A 1/4" X 3" CARRIAGE BOLT INTO THE HOLE IN THE ARMREST AND SET IT WITH A HAMMER. -
Page 13: Armrest Assemblies To Seat Back
STEP 3: ARMREST ASSEMBLIES TO SEAT BACK 1: LINE UP THE END HOLE IN THE ARMREST WITH THE MIDDLE HOLE IN THE SEAT BACK. 2: PLACE A CARRIAGE BOLT INTO THE END HOLE OF THE ARMREST AND SET IT WITH A HAMMER. -
Page 14: Eyebolts
STEP 4: EYEBOLTS 1: PLACE A 3/8" X 4" EYE BOLT THROUGH A 3/8" WASHER AND THEN THROUGH THE HOLE IN THE UPPER PART OF THE SEAT BACK. 2: MAKE SURE THE GAP IN THE EYE BOLT FACES DOWN. 3: PLACE A 3/8" WASHER AND A 3/8" LOCK NUT OVER THE END OF THE EYE BOLT AND TIGHTEN. DO NOT TIGHTEN THE BOLT SO TIGHTLY THAT YOU CRACK THE WOOD. -
Page 15: Quick Links
STEP 5: QUICK LINKS 1: LOCATE FOUR OF THE QUICK LINKS AS SHOWN. 2: LOOSEN THE NUT ON THE QUICK LINK AND ATTACH IT TO THE EYE BOLT. 3: REPEAT FOR ALL OF THE EYE BOLTS. EYE BOLT EYE BOLT EYE BOLT EYE BOLT DETAIL A... -
Page 16: Chains
STEP 6: CHAINS 1: FASTEN THE SHORT CHAIN TO THE QUICK LINK ON THE SEAT BACK. TIGHTEN THE NUT ON THE QUICK LINK WITH A WRENCH. 2: INSERT THE MEDIUM CHAIN THROUGH THE HOLE IN THE ARMREST. MAKE SURE THE CHAIN IS NOT TWISTED NEAR THE "S"-HOOK. -
Page 17: Swing Hanging Methods
STEP 7: SWING HANGING METHODS 1: LAG SWING HANGERS ARE AVAILABLE IN THE AFTERMARKET. IF YOU HAVE AN EXISTING BEAM WITH NO SWING HANGERS THEN YOU MAY USE THE LAG SWING HANGERS TO HANG YOUR SWING. FOLLOW MANUFACTURERS LOADING RECOMMENDATIONS AND DIRECTIONS FOR INSTALLATION. THE HOOKS MUST SWING IN THE SAME DIRECTION AS THE SWING TO WORK PROPERLY. -
Page 18: Warranty
WARRANTY – Babysitter Swing Backyard Playnation, LLC takes great pride in the quality and durability of our products. Our Manufacturer’s Limited Warranty provides confidence and demonstrates our commitment to providing quality residential playground products. If you have any questions, please call our Customer Service Department at: 770-704-9300 LIMITED 1 YEAR WARRANTY... - Page 19 cover (a) products which have been damaged by acts of Nature, negligence, misuse or accident, or which have been modified or repaired by unauthorized persons; (b) the cost of labor; or the cost of shipping the product, any part, or any replacement product or part. Backyard Playnation, LLC will pay for the replacement product or part, but the customer must pay all shipping and labor costs.
