Summary of Contents for Delta-T Devices SM300

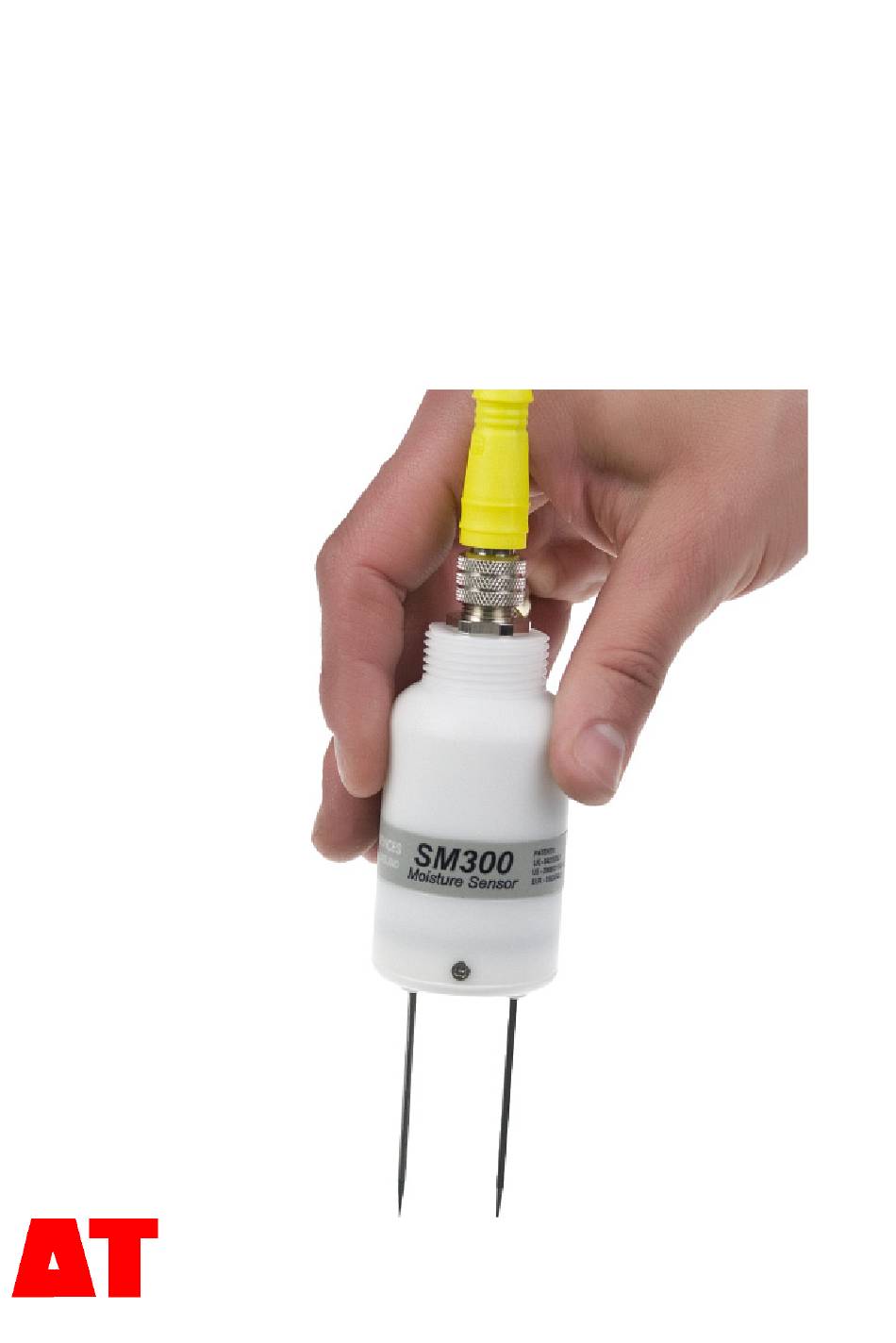

- Page 1 SM300 Soil Moisture and Temperature Sensor Quick Start Guide Version 1.3 Delta-T Devices Ltd...
- Page 2 SM300 overview Data Loggers Cables Installation © 2014 Delta-T Devices Ltd Page 2...
-
Page 3: Cables And Accessories
Push the SM300 into the soil until rods are fully inserted. Ensure good soil contact. Alternatively Dig a trench, and install horizontally (see Overview diagram). Note: Extension tubes are available for installing the SM300 in an augered hole. © 2014 Delta-T Devices Ltd Page... - Page 4 Press to save or Esc to discard the reading. Remove the SM300 from the soil and move to a new location... If you have saved data, connect your HH2 to a PC and run HH2Read to retrieve the readings.
-
Page 5: Data Loggers
Using DeltaLINK logger software (version 2.4* or later) configure channel 1 or 2 by choosing “SM300” and channel 3 or 4 by choosing “SM300 Temperature” from the sensor menu. For configuration details see the GP1 Quick Start Guide. - Page 6 CH61- or 62- Configure the DL2e logger channels by selecting the appropriate SM300 sensor types from the LS2Win sensor library. You need Ls2Win version 1.0 SR6 or later*. For configuration details see the DL2e User Manual. * Download the latest version of the Ls2Win logger software from www.delta-t.co.uk...
- Page 7 Convert SM300 Voltages to Soil Moisture Readings Note: The SM300 output is automatically converted to soil moisture when using an HH2 meter or Delta-T data loggers. Example V = 0.294 volts Take a reading with the SM300 either ...
-
Page 8: Specifications
Do not touch the rods or expose them to other sources of static damage, particularly when powered up. Keep the SM300 in its protective tube when not in use. Ensure that the connectors are clean, undamaged and properly aligned before pushing the parts together.
