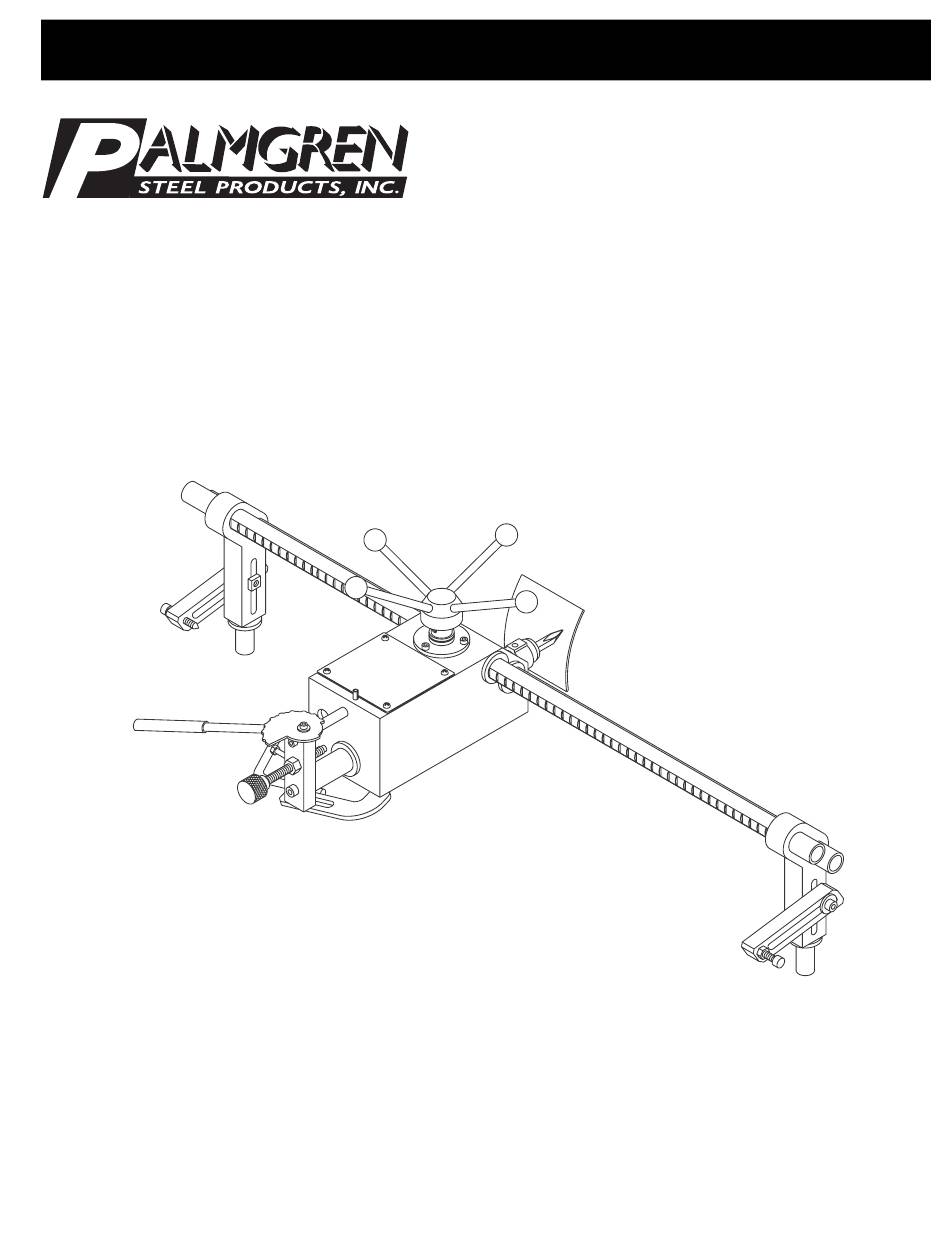

o o p p e e r r a a t t i i n n g g m m a a n n u u a a l l & & p p a a r r t t s s l l i i s s t t
8 8 4 4 9 9 0 0 1 1 & & 8 8 4 4 9 9 0 0 2 2
C C O O P P Y Y C C R R A A F F T T E E R R
Read carefully and follow all safety rules and operating instructions before
first use of this product.
21233.09-1103
Advertisement
Table of Contents
Related Manuals for Palmgren 84901
Summary of Contents for Palmgren 84901
- Page 1 o o p p e e r r a a t t i i n n g g m m a a n n u u a a l l & & p p a a r r t t s s l l i i s s t t 8 8 4 4 9 9 0 0 1 1 &...
-
Page 2: Specifications
38″ long. head bolts, four 8-1.25 x 25mm socket head bolts, four 8-1.25 x Model 84902 is designed for use on lathe 84315. Model 84901 is 20mm socket head bolts, one 8-1.25 x 10mm set screw, four 8mm designed for use on lathe 84312. -
Page 3: Think Safety
Palmgren Operating Manual & Parts List 84901 & 84902 • Clean copy crafter and lathe of all tools, wood scraps, etc., except SAFETY RULES (CONTINUED) • Keep children out of workplace. Make workshop childproof. workpiece and necessary tools before starting operation. - Page 4 Head Bolt • Loosen tailstock handle and remove tailstock from lathe bed. Figure 3 – Attach Tool Rest Base to Lathe Bed (Model 84901) • Insert guide between bed ways. Slide carriage support through slot of guide and secure with set screw.
- Page 5 Palmgren Operating Manual & Parts List 84901 & 84902 ASSEMBLY (CONTINUED) Screw • Secure brackets into tool rest bases using locking handles. Cover INSTALL LEVER, HANDLES AND FINE ADJUSTMENT SCREW Refer to Figure 6. • Insert bushings into lever. Slide 8 x 20mm socket head bolts Yoke through bushings.
-
Page 6: Safety Precautions
Carriage Support Bar Lower Guide Rod At this time adjust the follower assembly against the original. Figure 11 – Attach Carriage Support to Carriage (Model 84901) • Glide the tool holder along the support bars to duplicate the original piece. -
Page 7: Keep Tool In Repair
Palmgren Operating Manual & Parts List 84901 & 84902 LUBRICATION M M A A I I N N T T E E N N A A N N C C E E The shielded ball bearings in this tool are permanently lubricated at the factory. - Page 8 Palmgren Operating Manual & Parts List 84901 & 84902 T T R R O O U U B B L L E E S S H H O O O O T T I I N N G G SYMPTOM...
- Page 9 Palmgren Operating Manual & Parts List 84901 & 84902 Service Record Palmgren Copy Crafter DATE MAINTENANCE PERFORMED REPLACEMENT PARTS REQUIRED...
- Page 10 Palmgren Operating Manual & Parts List 84902...
- Page 11 Palmgren Operating Manual & Parts List 84902...
- Page 12 Palmgren Operating Manual & Parts List 84901...
- Page 13 Palmgren Operating Manual & Parts List 84901...
- Page 14 Palmgren Operating Manual & Parts List 84901 & 84902 Notes...
- Page 15 Palmgren Operating Manual & Parts List 84901 & 84902 Notes...
- Page 16 W W A A R R R R A A N N T T Y Y FULL TWO YEAR WARRANTY ON PALMGREN COPY CRAFTER If within two full years from the date of purchase, this Palmgren Copy Crafter fails due to a defect in material or workmanship, Palmgren will repair it free of charge.
