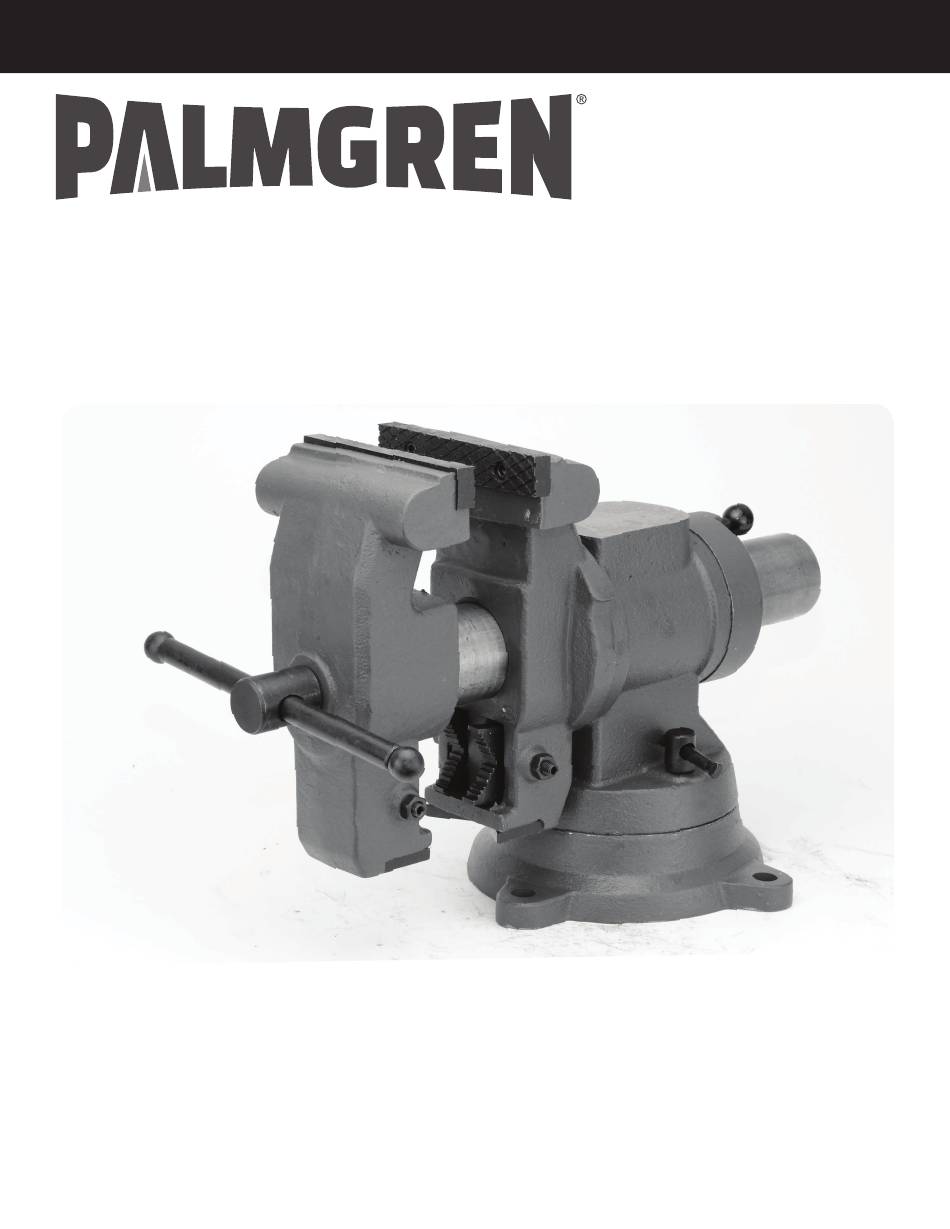

- Page 1 9629504 Operating Instructions & Parts Manual 6” Multi-Jaw Rotating Vice 9646388.01...
- Page 2 INJURY AND/OR PROPERTY DAMAGE! RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. PLEASE REFER TO BACK COVER FOR INFORMATION REGARDING PALMGREN’S WARRANTY AND OTHER IMPORTANT INFORMATION. Model #: ___________________ Serial #: ___________________ Purch. Date: _______________ © 2020 Palmgren Electric Manufacturing Co. All Rights Reserved...
- Page 3 SPECIFICATIONS Parameter Value Jaw width 6” Jaw opening 6” V-Jaw opening 6.5” Throat depth 3.5” Pipe jaw capacity 6” Jaw type Grooved Size (lengthxheight) 16.5”x7.75” Figure 1. Vice Exploded Parts View Ref # Description Part number Ref # Description Part number Locking Nut 9646423.01 Washer...
- Page 4 - 3 YEARS. The obligation of C.H. Hanson / Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part that should prove inoperable.
