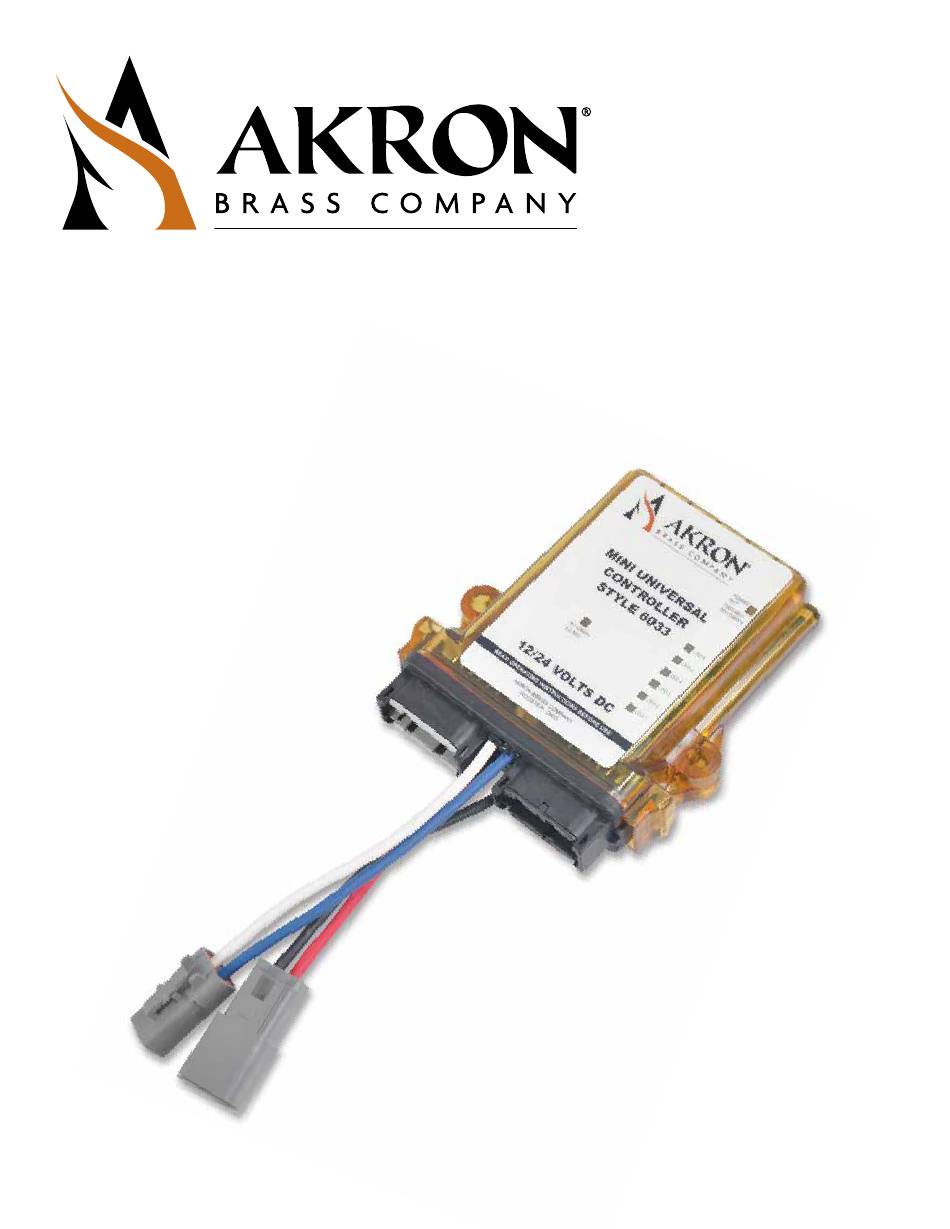

- Page 1 Style 6033 MINI UNIVERSAL CONTROL INSTALLATION, OPERATION & MAINTENANCE MANUAL 123066...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY SUMMARY 1. I NTRODUCTION Safety Precautions..........................................5 Introduction............................................5 Description............................................5 Technical Information........................................6 1.4.1 Power Requirements 1.4.2 Environmental Specifications Requirements. INSTALLATION Introduction..............................................7 Unpacking............................................... 7 Attaching to vehicle............................................ 8 Cable(s) Installation............................................. 9 2.4.1 DC Power Cable Vehicle Interface Cable.......................................... - Page 3 LIST OF ILLUSTRATIONS Figure 1-1 Mini Universal Control.........................................5 Figure 2-1 Mini Universal Mounting Hole Locations................................8 Figure 2-2 Vehicle Battery Connection...................................... 9 Figure 2-3 Deutsch DTM06-12SA-E007 (from rear).................................10 Figure 2-4 Relay Contact Output Wiring....................................11 Figure 2-5 J1939 CAN Wiring........................................... 12 Figure 2-6 Deutsch DTM06-12SB-E007 (from rear).................................
-
Page 4: Safety Summary
All operators must read the Operation section of this manual and be properly trained. Use only appropriate Akron Brass Company nozzles. Use of any other nozzles could affect the speed or operation of the monitor/turret. Make the connection of the vehicle and/or auxiliary battery the final step. -
Page 5: Safety Precautions
1.3 DESCRIPTION The Mini Universal is a product used to control Akron Brass single motor devices such as electrically actuated valves and telescoping risers. The unit is designed for installation on any vehicle for the purpose of providing control of these devices. Refer to Figure 1 -1 for identification of the Mini Universal Control Box. -
Page 6: Technical Information
For long runs, it may be necessary to add an intermediate junction box fed by 10 AWG or heavier wiring with a short 12 AWG run applied to the Mini Universal. If you need assistance in assessing wiring needs associated with long wiring runs, contact Akron Brass technical support. INPUT POWER REQUIREMENT: 12VDC (Min: 11VDC; Max: 14VDC) OR 24VDC (Min: 22VDC;... -
Page 7: Installation
1/4-20, M5, or M6 Mounting Hardware (2 req’d) Multimeter (to verify power is turned OFF) Torque wrench Clean Shop Rags Akron Brass 122365 Connector Kit (Included) Table 2-1 Tools and Materials Required for Installation 2.2 UNPACKING Unpack the Mini Universal as follows: Carefully open and remove all parts from shipping container. -
Page 8: Attaching To Vehicle
2.3 ATTACHING TO VEHICLE If the Mini Universal is to be mounted in a well, be certain that adequate drainage is provided. While the unit has been designed to withstand adverse environmental conditions, it cannot be submerged. In the case of use with a 3406 Riser, the Mini Universal is mounted directly to the side of the Riser on pre-threaded bosses. -
Page 9: Cable(S) Installation
The Mini Universal normally comes with a mating connector kit. NOTE: For ease of installation, a separate connector kit including connector, pins, and sealing plugs (for unused pins) can be ordered as part number 122365 from Akron Brass. Pin Number... -
Page 10: Vehicle Interface Cable
2.5 VEHICLE INTERFACE CABLE This gray 12 pin connector provides a connection point for signals to/from the vehicle. The Vehicle Interface connector requires a Deutsch DTM06-12SA-E007 or equivalent connector on the user harness. This connector should be included in the 122365 connector kit that came with the Mini Universal. - Page 11 Figure 2-5 J1939 CAN Wiring YELLOW GREEN YELLOW GREEN YELLOW VEHICLE CAN HI GREEN VEHICLE CAN LO COMMON...
-
Page 12: Device I/O Cable
NOTE: For ease of installation, a connector kit including connector, pins, and sealing plugs (for unused pins) is included with the Mini Universal, but is available separately as part number 122365 from Akron Brass. 2.6.1 Device I/O Connector (Black) P in-out... -
Page 13: Switch Inputs
Switch Inputs #1 to #5 (pins 2 to 6) are primarily intended for toggle switch input. Their function varies depending on configuration. An Akron Brass Operator Station can be used or users can provide their own switch inputs. Please refer to the Control Drawing for the particular version Mini Universal for their assigned function. -
Page 14: Operating Instructions
The Mini Universal control system is based on a distributed intelligence control structure. Each device in the system has a circuit board with an embedded micro controller. These devices can include (but are not limited to): the 6032 Universal II Control Box, the 6033 Mini Universal, the 6034 CAN Operator Interface, the 6035 CAN Joystick, the 6036 CAN Direction Indicator, the 6037 CAN Wireless Interface, and the associated handheld Remote Control(s). -
Page 15: Priority Of Command Inputs
3.4 PRIORITY OF COMMAND INPUTS Command inputs can have multiple sources. One source is from switch inputs as outlined in section 3.2. Command inputs can also come from J1939 CAN messages. This type command input takes the form of proprietary J1939 messages issued by the 6032 Universal II control. -
Page 16: Maintenance And Service Instructions
4.3 AKROVIEW SOFTWARE As with all of the Akron Brass CAN product family, the 6033 Mini Universal supports the Akroview Software. The software provides additional diagnostics as well as software updating and other capabilities. Contact Akron Brass for additional information on how you... -
Page 17: Mini Universal Variant Details
CHAPTER 5 MINI UNIVERSAL VARIANT DETAILS 5.1 60330003 MONITOR HI-RISER CONTROL BLACK CONNECTOR Function Configuration 12/24 Power Out Vehicle Battery + Switch Input #1 Retract Command Input (Active when connected to Pin #1) Switch Input #2 Extend Command Input (Active when connected to Pin #1) Switch Input #3 Unused Switch Input #4... - Page 19 16AWG. 16AWG. SWITCH INPUT #2 WARRANTY AND DISCLAIMER: We warrant Akron Brass products for a period of five (5) years after purchase against defects in materials or workmanship. Akron Brass will repair or replace product TO VEHICLE BATTERY 16AWG. which fails to satisfy this warranty. Repair or replacement shall be at the discretion of Akron Brass. Products must be promptly returned to Akron Brass for warranty service.
