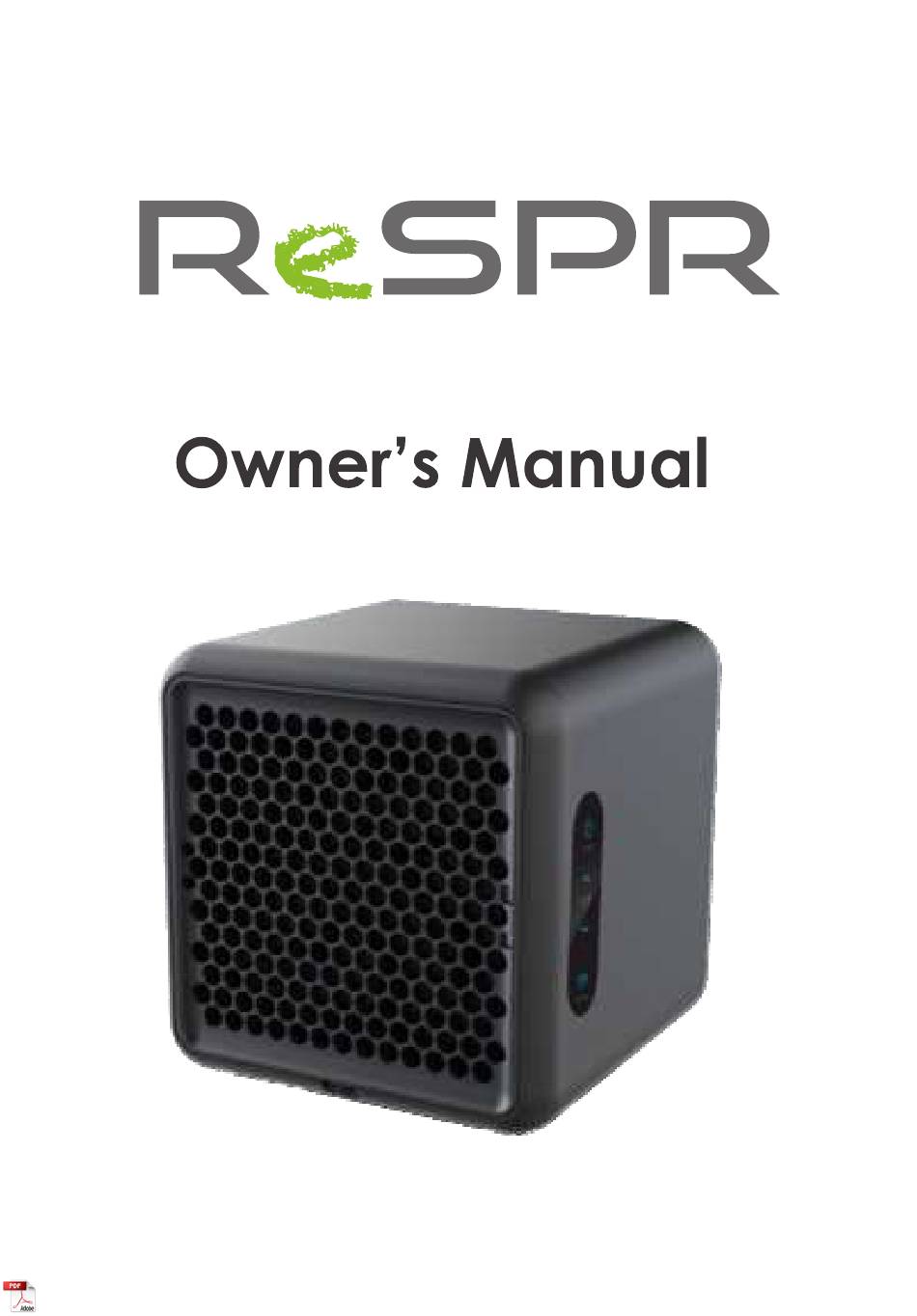

- Page 1 www.resprtech.com...
-
Page 2: Table Of Contents
Welcome Thank you for your purchase of the Air purifier. This air purifier has been designed to provide you a cleaner living space with years of low maintenance operation. Please read through the usage and service instructions outlined in this owner’s manual before operating the unit. Table of Contents Warnings Diagrams 4 - 5 Getting Started Settings Disassembly/Assembly 8 - 9 10 - 11 Cleaning Maintenance Troubleshooting Specifications Warranty Product Contents 1 Owner’s Manual 1 Air Purifier 1 Power Cord 1 DC Adapter 1 Remote with Battery 2 ... -
Page 3: Warnings
Warnings Do not operate this unit unless it is completely assembled. Eye damage may result from directly viewing the light produced by the lamp inside this unit for a continuous and extended period of time. Do not block the ventilation or filters. Do not use Away Mode in an occupied space. The unit should be powered OFF and the POWER CORD disconnected whenever cleaning or servicing. There are no user-serviceable parts inside the unit. This unit is not intended for outdoor use. Records Purchase Date: ............Model Number:........RePSR ONE Serial Number: ............Distributor Name: ..........Distrubutor Phone: ..........3 ... -
Page 4: Diagrams
Diagrams Unit Front Front Grille Ionization Control Panel Brushes Purification Level LED Indicator Unit Rear (Closed) Rear Panel Power Plug 4 ... - Page 5 Diagrams Unit Rear (Open) NCC Cell Purification Plate NCC Cell Power Connector Purification Plate Power Plug Power Connector Control Panel Remote Power Power Purification Fan Speed Level Fan Speed Away Mode Away Mode 5 ...
-
Page 6: Getting Started
Getting Started 1. Remove the UNIT and POWER ADAPTER from the packaging. 2. Find a suitable location to place your unit. (Ideal location is an area of the room with good circulation, or near source of pollution.) 3. Plug the POWER ADAPTER into a wall outlet and then plug the other end into a POWER PORT OF YOUR UNIT. 4. Place the POWER ADAPTER into the open space in the rear of the unit. 5. Press the POWER BUTTON to control to power of your unit. Your unit will start operating in PURIFICATION LEVEL 0/FAN SPEED HIGH. 6 ... -
Page 7: Settings
Settings There are multiple ways to change the output of your unit. If you need the unit to be quieter, change the Fan Speed, if you need a larger or smaller area covered, change the Purification Level, and if you need a tough odor removed, use Away Mode. Fan Speed Three fan speeds are available (Low, Medium, High) and are adjusted with the FAN UP/DOWN buttons on both the machine’s CONTROL PANEL as well as with the REMOTE. Purification Level Purification level is controlled on the REMOTE and adjusts the output of Activated Oxygen (O ). Four levels are available and will be signified by varying colors on the CONTROL PANEL. LEVEL 0 (0 - 250ft²): LED is OFF. (Level 0 uses only NCC and Ionization Technology.) LEVEL 1 (250 - 500ft²): LED is BLUE LEVEL 2 (500 - 1000ft²): LED is PURPLE LEVEL 3 (1000 - 1500ft²): LED is RED Away Mode Away Mode is used to treat the toughest odors in your space with higher levels of Activated Oxygen and Ionization. To activate, press the AWAY MODE BUTTON on the CONTROL PANEL OR REMOTE. DO NOT use Away Mode in an occupied space. Prolonged exposure to Activated Oxygen may result in temporary respiratory or eye irritation. Away Mode is active for 2 Hours before reverting back to PURIFICATION LEVEL 0/FAN SPEED HIGH. 7 ... -
Page 8: Front Grille
Disassembly Turn the OFF and remove the POWER CORD before performing any cleaning or maintenance to prevent injury. Refer to the Diagram Section (pg. 4-5) for further illustrations of part names and locations. Rear Cover After unplugging and removing the POWER CORD and POWER ADAPTER, press up on the tab below the POWER CORD hole and then pull back on the REAR COVER. Rear Filters After removing the REAR COVER, squeeze the two tabs on the back of the REAR COVER. These separate and contain 3 different filter pieces. Purification Plate (a) Locate the PURIFICATION PLATE CONNECTOR (Red Connector Piece) on the left side of the unit. Squeeze the tabs on the left and right and gently pull free. (b) Grasp the PURIFICATION PLATE, press the tabs towards the middle and slide it out of its slot. NCC Cell (a) Locate the NCC CELL CONNECTOR (White Connector Piece) on the right side of the unit. Squeeze the tabs on the left and right and gently pull free. (b) Grasp the NCC CELL and gently pull back to remove it from the slot. Front Grille Locate and remove the FRONT GRILLE SCREW in the front bottom of the FRONT GRILLE using a #1 Phillips Head Screwdriver. Place the screw where you will find them again easily. Remove the FRONT GRILLE carefully to ensure the IONIZATION BRUSH is not damaged. 8 ... -
Page 9: Power Cord
Assembly All parts must be properly Installed before operating the unit. Failure to do so may damage the unit. Front Grille Replace the FRONT GRILLE and the FRONT SCREW using a Phillips Head Screwdriver. Be careful to not over-tighten the screw or damage the IONIZATION BRUSH. NCC Cell (a) Slide the NCC CELL back into the upper slot with the warning at the top facing out. (b) Plug the NCC CELL CONNECTOR back into the WHITE CONNECTOR SLOT. Purification Plate (a) Slide the PURIFICATION PLATE back into the small slot with the larger silver side facing to the left. (b) Plug the PURIFICATION PLATE CONNECTOR back into the RED CONNECTOR SLOT. Rear Filters Ensure that the FILTER ASSEMBLIES are snapped together correctly. Rear Cover Place the REAR COVER top edge into the hinge slot then tighten the REAR COVER SCREW using a Phillips Head Screwdriver. Power Cord Insert the POWER ADAPTER into the rear slot. 9 ... -
Page 10: Cleaning
Cleaning For proper operation, the unit should be cleaned at least once per month. Turn the unit OFF and remove the POWER CORD before performing any cleaning or maintenance to prevent injury. Review the Disassembly and Assembly Section (Pg. 8-9) before performing and cleaning and maintenance to prevent damage to the unit. Unit Exterior Wipe down the exterior with a damp cloth or use compressed air or a vacuum cleaner to remove dust. A non- abrasive cleaner may be used on the surfaces of the exterior. 10 ... -
Page 11: Unit Interior
Cleaning Unit Interior Using a damp cloth, a clear alcohol based cleaner, or compressed air/ vacuum cleaner carefully clean the walls and components inside of the unit, after completing the DISASSEMBLY procedures. NCC Cell Using compressed air or a vacuum blow/suck the dust out of the NCC Cell. Do not use any liquid to clean the NCC Cell. Purification Plate The Purification Plate only needs cleaning every 3 months, unless it is used in a harsh environment (Smoke Area, Kitchen, Pet Area). Using a 50/50 mix of warm water and clear ammonia, soak the PURIFICATION PLATE from 1-8 hours. Using a soft-bristle brush, scrub the metal center. Rinse thoroughly and allow to dry completely before reinstalling. All parts must be properly installed before operating the unit. Failure to do so may damage the unit. 11 ... -
Page 12: Maintenance
Maintenance Turn the unit OFF and remove the POWER CORD before performing any cleaning or maintenance to prevent injury. Review the Disassembly and Assembly Section (Pg. 8-9) before performing and cleaning and maintenance to prevent damage to the unit. General Maintenance Your unit should need little to no maintenance, besides an occasional NCC Cell or Purification Plate Replacement, but sometimes problems arise. If you can’t find a resolution in the Troubleshooting Section (Pg. 13) contact your Distributor for further instructions. NCC Cell Replacement The NCC CELL does wear out and should be replaced yearly to ensure a high level of efficient cleaning. A replacement can be bought through your Dealer. Purification Plate Replacement The PURIFICATION PLATE also wears out and will need to be replaced every year of constant use. A replacement can be bought through your Dealer. NCC Cell Purification Plate 12 ... -
Page 13: Troubleshooting
Troubleshooting Unit Fails to Turn On 1. Checking to make sure that the POWER PLUG, POWER CORD, and POWER ADAPTER are all properly connected. 2. Verify that the POWER BUTTON has been activated on the CONTROL PANEL If further problems persist, contact Dealer for further instructions or replacement. Unit is operating in High or Away Mode, but no Noticeable Purification is Being Produced 1. Ensure that the PURIFICATION PLATE is clean and that its CONNECTOR is fully inserted. 2. View the unit operating in a dark room through the FRONT GRILLE. The PURIFICATION PLATE should have a dim purple glow. If further problems persist, contact Dealer for further instructions or replacement. The Purification Plate Generates an Electrical Arc, Arcing Noise, or Burning Odor The PURIFICATION PLATE is damaged and must be replaced. Contact Dealer for replacement. The NCC Cell is Not Lighting Up 1. Ensure that the NCC CELL CONNECTOR is properly inserted into its slot. If further problems persist, contact Dealer for further instructions or replacement. Ionization Needle Creates an Electrical Arc The IONIZATION NEEDLE needs to be cleaned. Be sure to complete all of the cleaning procedures in the Cleaning Section (Pg. 10-11) every 30 days. Fan Does Not Operate Properly 1. Try adjusting the FAN SPEED using the CONTROL PANEL or REMOTE CONTROL. 2. Remove the FRONT GRILLE and ensure there are no obstructions to the movement of the FAN. Clean it thoroughly and also clean the mount that it sits on. If further problems persist, contact Dealer for further instructions or replacement. 13 ... -
Page 14: Specifications
Specifications 100 - 240VAC | 50/60Hz | 2.5A Input Voltage 15V DC 3A Output Voltage Power Consumption 21 W 6.7 H x 6.7 W x 7.00 D Unit Dimensions (in) Unit Dimensions (cm) 17 H x 17 W x 16.5 D Unit Weight (lb) Unit Weight (kg) Max. Temp (F) Max. Temp (C) Air Flow (cfm) Activated Oxygen (O ) Output Purification Plate 25 - 360 mg/hr Ionization Output 6KV DC Needle Ion Generator 24 - 30 KV , 20 - 30 Khz Ion Generation Pulsator Effective Area Up to 140 m2 | 1500 ft² 14 W 531... -
Page 15: Limited Warranty
Limited Warranty Your ReSPR ONE is warranted to be free from all defects in material and workmanship in normal household use for a period of one (1) year from date of purchase. The warranty is granted only to the original purchaser and is subject to the following provisions. This warranty does not cover parts of the ReSPR ONE that require replacement under normal use. This includes the purifier plate and rear filter assembly. Although the NCC Cell requires periodic replacement, the cell is warranted for the same one (1) year period as the purifier. Any damages or malfunctions caused by negligence, abuse, or use not in accordance with the Owner's Manual are not covered by this warranty. Likewise, any defects or damages caused by unauthorized service or the use of other than genuine ReSPR parts are not covered. ReSPR Technologies will, at its option, repair or replace a defective ReSPR ONE or part(s) for the ReSPR ONE that is covered by this warranty As a matter of warranty policy, ReSPR Technologies will not refund the customer's purchase price. To obtain warranty service you must return the defective ReSPR ONE unit or parts along with proof of purchase to your ReSPR Distributor. All transportation charges on parts or units, submitted under this Limited Warranty shall be borne by purchaser. Unless this Warranty is expressly renewed or extended by ReSPR Technologies, any repaired or replaced part of unit shall be warranted to the original purchaser only for the length of the unexpired portion of the original warranty. Further Limitations And Exclusions Any warranty that may be implied in connection with your purchase or use of the ReSPR ONE, including any warranty of merchantability or any warranty for Fitness For A Particular Purpose is limited to the duration of this warranty. Some states or territories do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. Your relief for breach of this warranty is limited to the relief expressly provided above. In no event shall ReSPR Technologies be liable for any consequential or incidental damages you may incur in connection with your purchase or use of the ReSPR ONE. Some states/territories do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from territory to territory.
