Summary of Contents for ReSPR FLEX

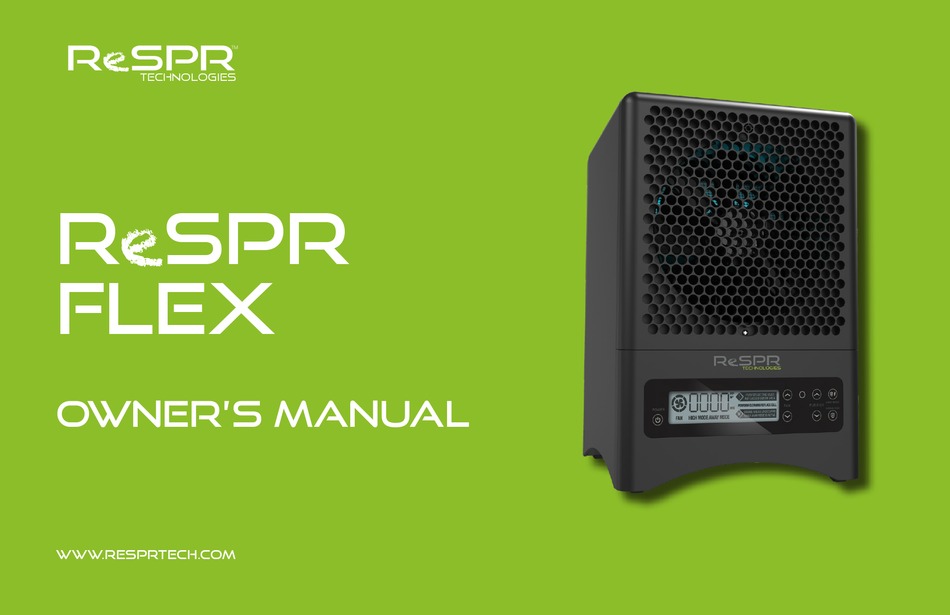

- Page 1 Technologies ReSPR FLEX Owner’s Manual www.resprtech.COM...
- Page 2 ReSPR FLEX is designed to provide years of trouble-free service when it is properly maintained. Even when properly cared for, some parts of your ReSPR FLEX will need to be replaced periodically. Replacement parts can be purchased from your authorized distributor or directly from ReSPR Technologies.
-
Page 3: Table Of Contents
Technologies Contents Quickstart Warnings Setup & Operation Diagrams Routine Maintenance Troubleshooting Limited Warranty Records/Specifications... -
Page 4: Quickstart
Quickstart Place ReSPR FLEX on a counter top or shelf, not on the floor. Ensure there is room in front and back of the unit for air to flow through. Plug the unit in with the included power cable. Insert one lithium battery (CR20253V) inside the remote control. -
Page 5: Warnings
Warnings Review this list before using or performing any maintenance or cleaning of your unit. WARNING: Never operate unit near a heat source, open flame or flammable/combustible fluids. WARNING Do not operate unit unless all parts (including Cell, Purification Plate, Rear Filter Assembly and Rear Cover) are WARNING: properly installed. -
Page 6: Setup & Operation
To ensure the unit works properly, there should be as much it to NORMAL mode. The screen will read NCC (Natural space as possible in front of your ReSPR FLEX so that It Catalytic Conversion). This is the optimal setting for can efficiently process the air in the area. - Page 7 Mode. • When ReSPR FLEX is set to HIGH Mode the display will ask • Set AWAY Mode by pressing the AWAY Mode button. Each you to set the room size (ft or m ).
-
Page 8: Diagrams
Diagrams (Unit) Front of Unit Rear of unit Side of Unit Rear Cover Screw Rear Cover Ionization Needle Front Grille Rear Cover Grooves Unit Rear Control Panel Power Adapter Inlet Unit Front... - Page 9 (Unit) Rear of Unit Rear of Unit Power Supply (Rear Cover Removed) (Filter Assembly Removed) NCC Cell Power Cord Filter Assembly NCC Cell Nuts Power Cord Plug NCC Connector Power Adapter Purification Plate Power Adapter Plug...
- Page 10 Diagrams (Controls) Remote Control Panel Normal/High Toggle Power Button Power Button Power Button Purification Level Control Fan Speed Control Fan Speed Control Purifier Level Control m2 / ft2 Control Sleep Mode Control Away Mode Toggle Fan Level Control Away Mode Control...
- Page 11 (Controls) Control Panel Screen Mode Specific Display The coverage will show the room size in ft or m2, depending on the country Mode Specific Display Fan Speed Indicator Purification Level Warning Normal – Technology Indicator (NCC) High - Square Footage Indicator Mode Specific Display Maintenance Reminders Away - Mode Duration Indicator...
-
Page 12: Routine Maintenance
Turn off the unit with the Power button. Unplug the unit from the power source and then remove To run efficiently, your ReSPR FLEX requires cleaning on a 60 to 90 day the power cord from the back of the unit. - Page 13 The larger flat side of the Filter Assembly faces the interior Align the Front Grille to the front of the unit, being careful of the ReSPR FLEX. A sticker reading, “Caution: Reinstall not to damage the Ionization Needle at the top center of Filter After Cleaning”...
- Page 14 LCD Reminders When your ReSPR FLEX unit is in need of maintenance, a message will display on the LCD screen. To reset any maintenance reminder on the unit, press the NORMAL/HIGH button for 3 seconds to eliminate the message. – this message will display every 30 days.
-
Page 15: Troubleshooting
Power Button on the Remote Control. If the Control Panel Turn the lights off In the room and look through the Front fails, contact your distributor or ReSPR Technologies Grille at the Purification Plate. If It is operating properly, it (www.resprtech.com). - Page 16 NCC Cell Power Connector snap into place, securing it to the NCC Cell Power Connector Outlet. If the NCC Cell still fails to operate, it needs to be replaced. Contact your distributor or ReSPR Technologies (www. resprtech.com).
-
Page 17: Limited Warranty
Limited Warranty Your ReSPR FLEX is warranted to be free from all defects in be warranted to the original purchaser only for the length of the material and workmanship in normal household use for a period unexpired portion of the original warranty. For additional service of (l) year from date of purchase. -
Page 18: Records/Specifications
Consumer Information Ionization Needle 24 to 30 KV, 20-30 Khz Ion Generation Pulsator ReSPR Technologies declines all responsibility for all damages 6 KV DC Needle Ion Generator arising from improper use of the unit or in case of tampering with the unit. - Page 19 Technologies www.resprtech.com...
