Veikk S640 Manual

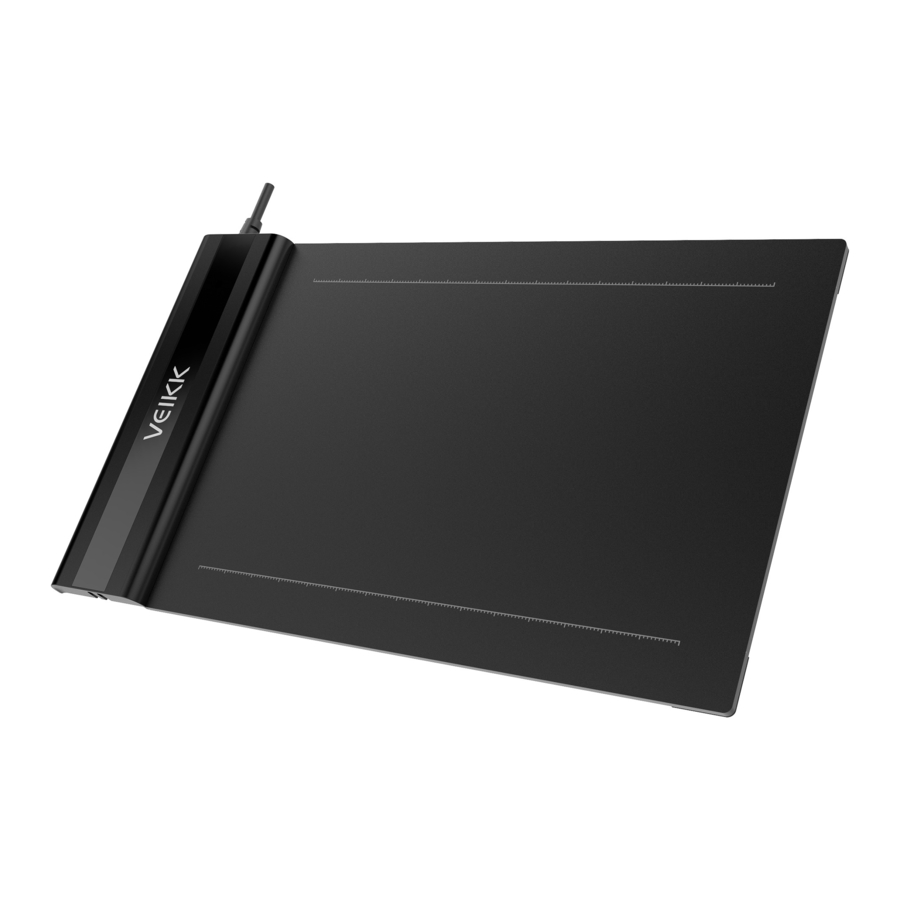

Product Overview

1. LED Indicator
2. Upper Marking Line
3. Active Area
4. Lower Marking Line

Note: The passive pen requires neither battery nor charging.

Packing List

Driver Installation

OS Support

Windows 11/10/8/7(32/64 bits) / Mac OS 10.12 or later
Linux OS / Chrome 88 or later
Android 6.0 or later (Except Samsung Android device)

Installation

For Mac OS, Windows and Linux OS computer:

1. Before installing the driver, please uninstall all tablet drivers from your computer and keep all antivirus programs and the drawing software closed.
2. Connect the tablet to your computer before installation (Please refer to "Device Connection").
3. Please download the driver from www.veikk.com.
4. Click Set up.exe and follow onscreen instructions.
5. Restart your computer after installation.

For Chrome OS computer and the Android mobile phone:
No need to install VEIKK driver on the Chrome OS computer and the Android mobile phone.

Device Connection

For Mac OS, Windows and Linux OS computer:

1. Connect the tablet to your computer with USB cable.

2. Open the driver interface. If the product model shows at the upper left corner, this indicates that the tablet has been connected successfully. You can start using your tablet.

For Chrome OS computer:
Connect the tablet to your Chrome OS computer with the USB cable, then you can start using your tablet.
Note: The shortcut keys of the pen and tablet can't work on the Chrome OS computer.

For Android mobile phone:

1. Please connect the tablet to your phone with the OTG adapter.
2. Rotate the tablet as shown in Figure 1, then you can start using your tablet.


Note1: Works in mobile phone vertical screen mode only.
Note2: For some mobile phones, you need to enable the OTG function manually in the phone's settings.
Note3: The shortcut keys of the pen can't work on Android mobile phone.

Replacing the Nibs

When the pen nib is heavily worn, please replace the nib with the nib removal.

1. Insert the pen nib into the pen holder hole

2. Tilt the pen so that the pen holder can fully catch the pen nib

3. Pull out the nib

4. Insert a new nib into the pen and push it straightly until it stops


Specifications

www.veikk.com

Documents / Resources

References

• Veikk | Drawing tablets and displays to Make Creation Simple

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Veikk S640 Manual
