VEIKK A30 Manual

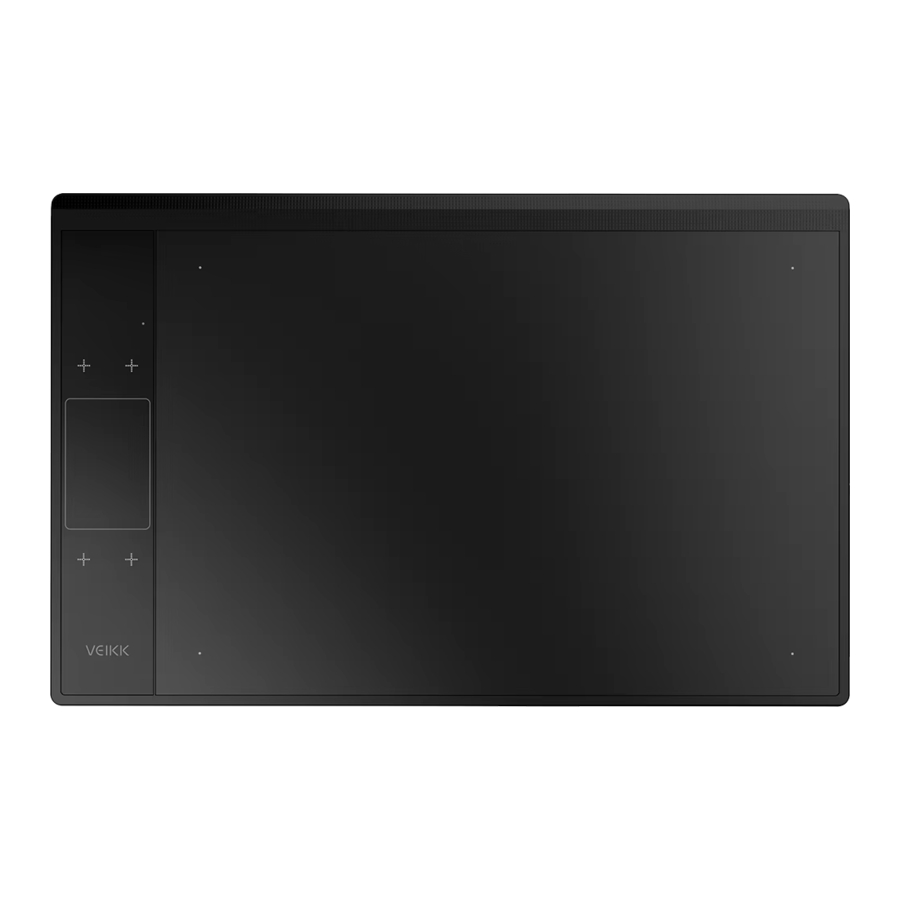

Product Overview

1. LED Indicator
2. Touch Key
3. Gesture Touch Area
4. Active Area

Tips: During the normal working state, when the pressure pen is suspended in the active area of the A30 tablet, the indicator light flashes; when the pen touches the tablet, the indicator light is always on.

Pen

Note: The pen is battery-free, no need to charge or battery

Packing List

InstaIIing Driver

OS support

Windows 10/8/7 (32/64 bits)
Mac OS 10.12 or later
Android 6.0 or later (Except Samsung Android device)

Installation

For a PC/laptop:

1. Before installing driver, please uninstalI all tablet drivers from your computer and keep all antivirus program and drawing software closed
2. Connect the tablet to your computer before installation (PIease refer to "Device Connection")
3. Please download updated driver from www.veikk.com
4. Click Set up.exe and follow onscreen instructions
5. After installation then restart your computer.

For an Android mobile phone:
No need to install VEIKK driver on your phone.

Device Connection

For a PC/laptop:

1. Connect the tablet to your computer with USB cable.

2. Open the driver interface, if the upper left corner shows the product model, indicating that the tablet has been connected successfully, you can start using your tablet now.

For an Android mobile phone:

1. Please connect the tablet to your mobile phone with the OTG adapter.
2. Choose the most comfortable way you like to use the tablet.
   1. The working area of the tablet is 10*6 inch, but you need to rotate the tablet as shown in Figure 1.

   2. Press K1 and K4 at the same time, the working area of the tablet is 3*6 inch, but you can use the tablet in the normal direction as shown in Figure 2.


Note1: Works in mobile phone vertical screen mode only.
Note2: For some mobile phones, you need to enable the OTG function manually in the phone's Settings.
Note3: The short keys on the tablet and pen can't work on Android mobile phone.

Replacing the Nibs

When the pen nib is heavily worn, please replace the nib with the nib removal

1. Insert the pen nib into the pen holder hole

2. TiIt the pen so that the pen holder can fully catch the pen nib

3. Pull out the nib

4. Insert a new nib into the pen and push it straightly until it stops


Specifications
