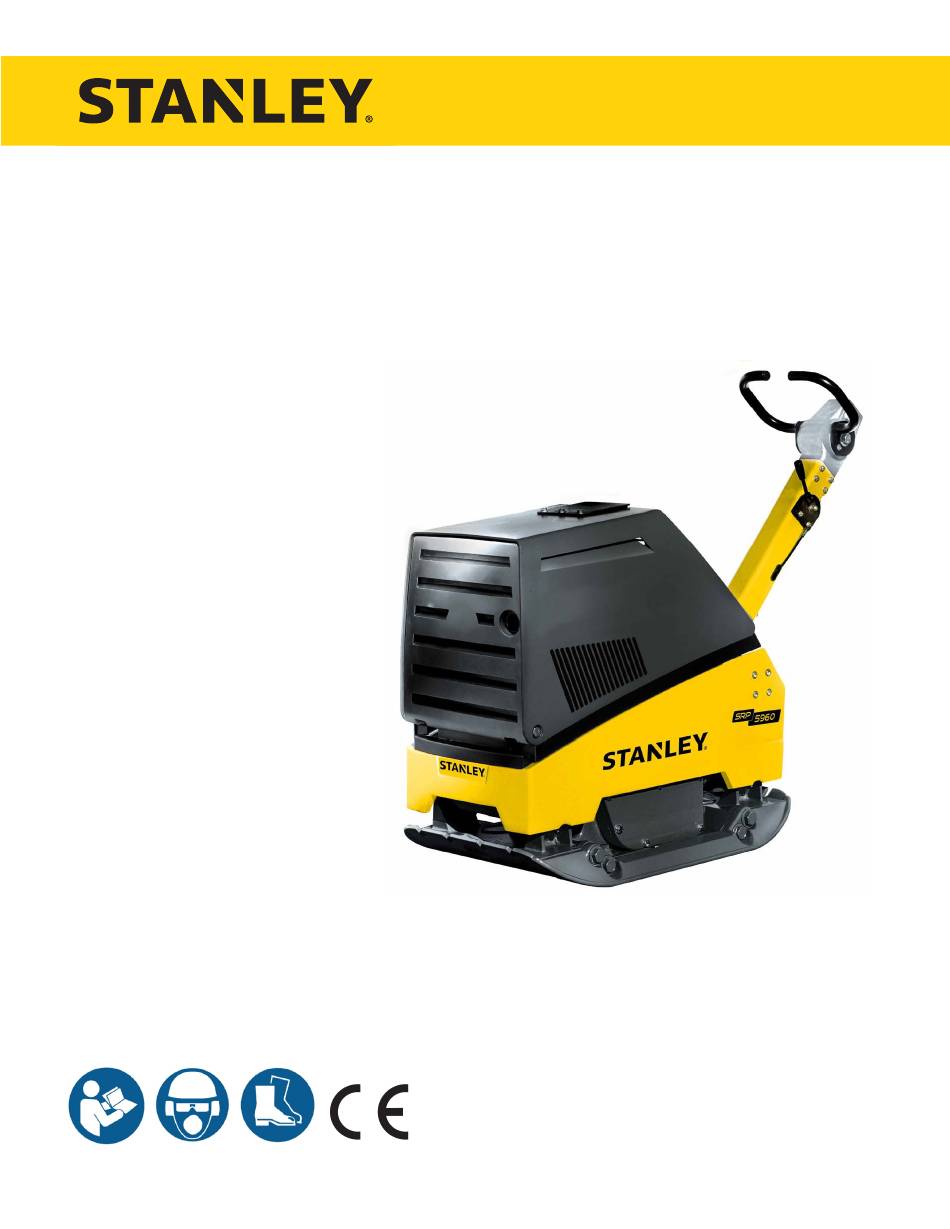

- Page 1 COMPACTION REVERSIBLE PLATE SRP 4960 SRP 5960 USER MANUAL Safety, Operation and Maintenance © 2015 Stanley Black & Decker, Inc. New Britain, CT 06053 U.S.A. 74926 2/2016 Ver 3...
-
Page 2: Declaration Of Conformity
Disposizioni speciali: Misurazioni Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA... -
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest authorized and certified dealer, call Stanley Hydraulic Tools at the number listed on the back of this manual and ask for a Customer Service Representative. -
Page 4: Safety Symbols
Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and mainte- nance personnel. 4 ► SRP 4960 / 5960 User Manual... - Page 5 Also observe the corresponding rules and regulations valid in your country. Stanley is not liable for the function of the machine when used in an improper manner and for other than the intended purpose.
-
Page 6: Safety
SAFETY This Stanley machine has been built according to the state of the Safety information contained in the operating and maintenance art in compliance with the pertinent rules. Nevertheless, these instructions machines can still constitute a hazard to persons and property if: The following terms and symbols are used in this operating •... - Page 7 Hydraulic oil discharging under pressure can cause serious injuries. Work on hydraulic devices must be undertaken only by persons with a special knowledge of hydraulics and the necessary ex- perience! SRP 4960 / 5960 User Manual ◄ 7...
-
Page 8: Technical Data
HATZ 1B40 TYPE OF CONSTRUCTION 1-CYL-4-STROKE DIESEL POWER OUTPUT 6.6 KW (9.0 HP) SPEED 2900 1/MIN COOLING FUEL CAPACITY 5.0 L / 1.32 GAL 1.6 L/H / 0.42 GAL/H MAX. SLOPING POSITION 25° 8 ► SRP 4960 / 5960 User Manual... - Page 9 DIRECTIVES AND STANDARDS: EN 500-4 / DIN EN ISO 5349 1) AS THE PERMISSIBLE RATING SOUND LEVEL OF 85 DB (A) CAN BE EXCEEDED BY THIS MACHINE, OPERATORS MUST WEAR HEARING PROTECTORS. SRP 4960 / 5960 User Manual ◄ 9...
-
Page 10: Operation
SRP 4960 / 5960 is suitable for all compaction work in the fields of civil engineering and road construction. It can be used to compact all ground materials such as sand, gravel, slag, crushed stone, asphalt and composite •... - Page 11 At minimum motor speed (min), the drive to the ex- citer is disconnected at the centrifugal clutch and the motor idles. The centrifugal clutch engages when the throttle con- trol lever is moved approximately ¼ of its adjustment travel. SRP 4960 / 5960 User Manual ◄ 11...
- Page 12 «I» and remain there during engine operation. Attention The charge (4) and oil pressure indicator (6) should turn off directly after the engine starts. Prior to starting up again, the key has to be returned to position «0». 12 ► SRP 4960 / 5960 User Manual...
- Page 13 At the end of a working day or a break protect be sealed with the supplied screw plugs . the key from unauthorised access. Danger SRP 4960 / 5960 User Manual ◄ 13...
-
Page 14: Transport
• stand under swinging loads Lock the tow-bar to loading and transport. After loading, the machine has to be attached in place (1). Use the centre-of-gravity suspension point (2) in order to lift the machine. 14 ► SRP 4960 / 5960 User Manual... -
Page 15: Maintenance
Change hydraulic oil • Check the hydraulic hose lines ²) • • Check V-belt • • Check screwed connections for tightness )See engine operating manual )Minimum once a year )for the first time SRP 4960 / 5960 User Manual ◄ 15... - Page 16 2. Exciter SRP 4960 Engine oil 250³ 1.0 l API SG-CE or annually SAE 10W40 SRP 5960 2. Hydraulic SRP 4960 Hydro-Oil 0.65 l If Necessary HVLP 46 SRP 5960 Alternative Lubrication Schedule 16 ► SRP 4960 / 5960 User Manual...
- Page 17 Checking Cooling air-/combustion air intake • drain the water out into a suitable container. Check intake opening for combustion air and cooling air intakes. Remove coarse ostructions such as leaves, stones and earth. SRP 4960 / 5960 User Manual ◄ 17...
- Page 18 (max. 5 bar/70 psi) from the inside outwards, until no more dust comes out. Risk of eye injuries! – Wear safety goggles. Danger • Care refit filter element (2). • Fit cover (1). 18 ► SRP 4960 / 5960 User Manual...
- Page 19 Inspect the rubber buffers for cracks and chipping as well as • Unscrew oil filling plug (2), check the oil level again and tightness and immediately replace if damaged. top up with oil if necessary. SRP 4960 / 5960 User Manual ◄ 19...
- Page 20 • If the level is too low, top up with hydraulic fluid; if too high, drain off excess fluid. • With the machine running and the throttle lever in the «F» position, close locking screw (1). 20 ► SRP 4960 / 5960 User Manual...
- Page 21 • Damage or deformation of hose fittings (impaired sealing function). • Hose slips out of the fitting. • Corrosion of fitting (degrading of function and strength). • Improper installation. • Use beyond the expiry date of max. 6 years. SRP 4960 / 5960 User Manual ◄ 21...
-
Page 22: Troubleshooting
Insufficient V-belt tension Retention V-belt V-belt broken Replace V-belt Centrifugal clutch lining worn Replace linings and springs Too much oil in exciter Check exciter oil level Default in hydraulic system Contact a Stanley-service center 22 ► SRP 4960 / 5960 User Manual... - Page 23 NOTES SFP User Manual ◄ 23...
- Page 24 Stanley Hydraulic Tools 3810 SE Naef Road Milwaukie, Oregon 97267-5698 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyhydraulics.com...
